7. When the use of stand-by batteries is required, they must be sealed lead acid or gel type. Use 14 AWG or larger for all power connections. Connect four (4) 12VDC batteries in
series to terminals marked [+BAT–] (Fig. 2h, pg. 2)
Note: When batteries are not used, a loss of AC will result in a loss of output voltage.

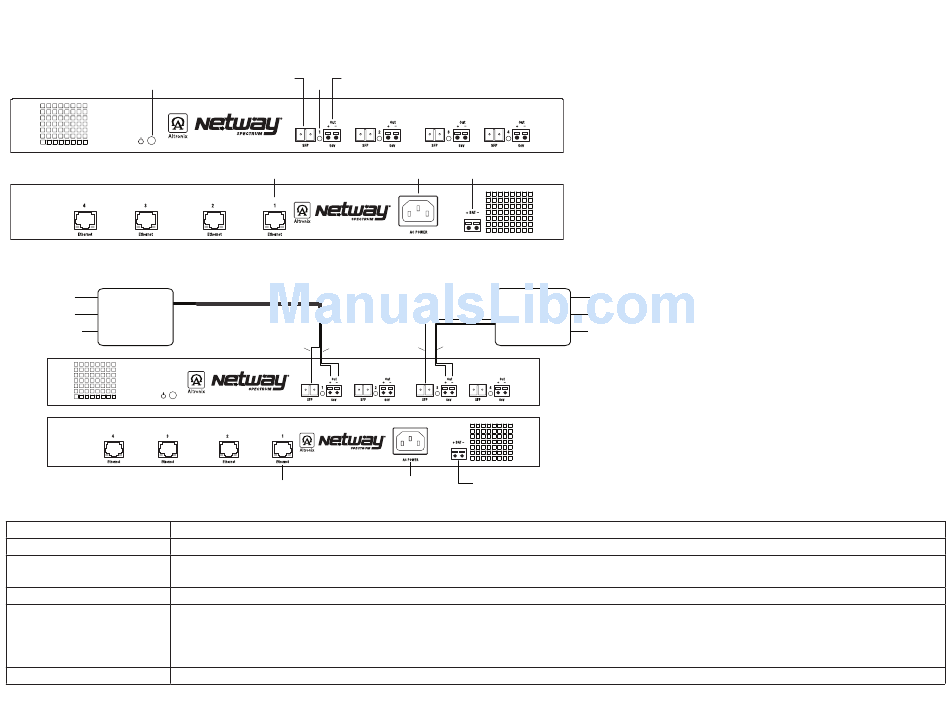

Fig. 2
2a
Front Panel
Rear Panel
Fig. 3
PoE+
Camera
NetWay Spectrum
PoE+
Camera
PoE Hardened Switch
WiFi Access
Point
Front Panel
Rear Panel
Parameter Description
Number of Ports Four (4) Gigabit SFP Ports. Four (4) ports 10/100/1000Mbps.
NetWaySP4P:
Power Outputs
NetWaySP4P2: Four (4) 56VDC power-limited outputs @ 60W each.
Input power requirements 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2.0A.
Operating Ambient Temperature: 120W: -40ºC to 50ºC (-40ºF to 122ºF)
Relative Humidity: 85%, +/- 5%
Environmental Conditions
Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF).
Operating Altitude: -304.8 to 2,000m (-1,000 to 6,561.679 ft.).
Weights (approx.) Product: 3.8 lbs. (1.7kg) | Shipping: 6.0 lbs. (2.7kg)
www.altronix.com
2b 2c 2d
2e
Composite (Powered) Fiber Cable
Fiber Copper
Data
Four (4) 56VDC non power-limited outputs 120W max.
2f 2g
Typical Application:
NetWay Spectrum
PoE Hardened Switch
Fiber Copper
115/230VAC Stand-by Battery
Input Connections

Technical Specifications:

- 3 -
2a LED indicates AC Power is present.
2b 1Gb SFP port.
2c LED indicates fiber link.
2d 120W max output
2e RJ45 connects to switch
2f IEC 320 Connector: 115/230VAC (grounded line cord included).
2g Built-in battery charger: Charges stand-by batteries for
applications requiring back-up.
(Optional rack mount battery enclosure available - RE2)
PoE+
Camera
PoE+
Camera
WiFi Access
Point
NetWaySP4P / NetWaySP4P2
