Technical Specifications - Altronix eBridge200WPM Installation Manual

Parameter Description
Connections BNC for Coax link. RJ45 for ethernet link.
Input power
UL Listed LPS PoE Power Supply. See input options table pg. 1.
requirements
Speed and Activity of Output ports.
Indicators
PoE ON the Spare Pair of CAT5. PoE ON the Data Pair of CAT5.
Operating Ambient Temperature: UL60950-1
60W over CAT5 -40ºF to 167ºF (-40ºC to +75ºC).
60W over Coax -40ºF to 149ºF (-40ºC to +65ºC).
Environmental
45W over Coax -40ºF to 167ºF (-40ºC to +75ºC).
Conditions
Relative humidity: 20 to 85%, non-condensing.
Storage Temperature: -- 40º to 167ºF (--- 40º to +75ºC).
Operating Altitude: --- 1000 to 6,561.679 ft. (--- 304.8 to 2000m).
Regulatory
--------
Compliance
Weights
Product: 3.7 lbs. (1.68 kg), Shipping: 5 lbs. (2.27 kg)
(approx.)
Fig. 4
NetWay1D
eBridge100SPR
OUT
eBridge100SPR - Receiver
Provides 56VDC
Input: 51-56VDC Class 2 or LPS power supply
Blue LED Coax link status (SLOC)
RJ45 LEDs Yellow - Speed, Green - Activity
Green LED Power and PoE
Z1409
www.altronix.com
I.T.E. 43KC
--- +
eBridge100RM
eBridge100RM
EoC Receiver
passes PoE/PoE+
RJ45 LEDs Yellow - Speed
Green - Activity
Yellow LED Power and PoE
Z1409
I.T.E. 43KC
www.altronix.com
RJ45 PoE PoE PoE
Coax OUT LED Input LED

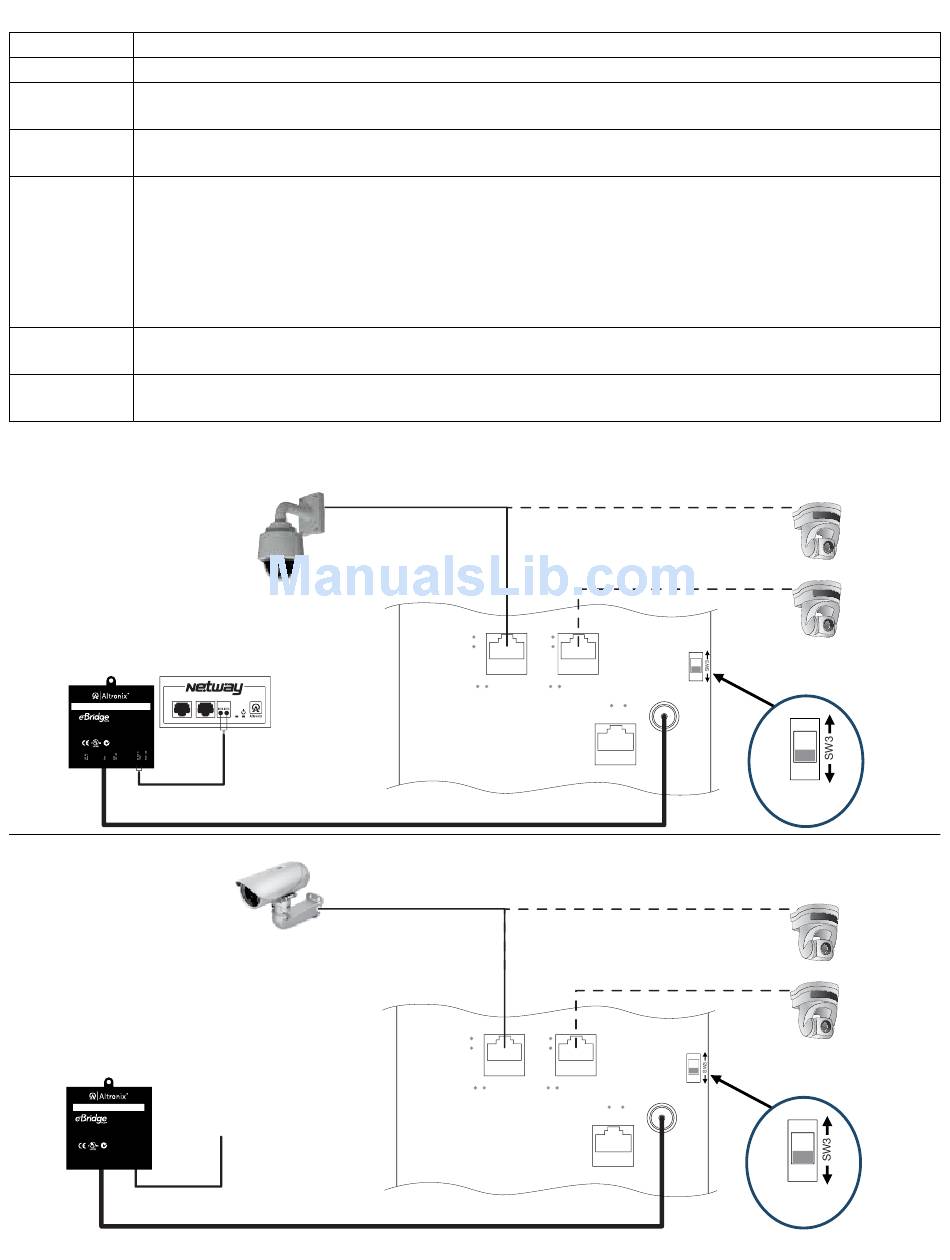

eBridge200WPM/WPMH

Technical Specifications:

60W Coax Applications:
Option 1
CAT-5e - 100m
60W Camera/Device
Aux.
IN + ---
PoE
ON
Coax - 300m
Option 1
30W Coax Applications:
CAT-5e - 100m
30W Camera/Device
Midspan
or Endspan
Coax - 300m
PORT 1 PORT 2
SPEED SPEED
ACTIVITY ACTIVITY
SPR DATA SPR DATA
PoE PoE PoE PoE
1
SPEED ACTIVITY
CAT INPUT
PORT 1 PORT 2
SPEED SPEED
ACTIVITY ACTIVITY
SPR DATA SPR DATA
PoE PoE PoE PoE
1
SPEED ACTIVITY
CAT INPUT
Option 2
CAT-5e - 100m
30W Camera/Device
CAT-5e - 100m
30W Camera/Device
60W CAT
30W CAT
or
60W COAX
60W CAT
COAX INPUT
30W CAT
or
60W COAX
Option 2
CAT-5e - 100m
15W Camera/Device
CAT-5e - 100m
15W Camera/Device
60W CAT
30W CAT
or
60W COAX
60W CAT
COAX INPUT
30W CAT
or
60W COAX
