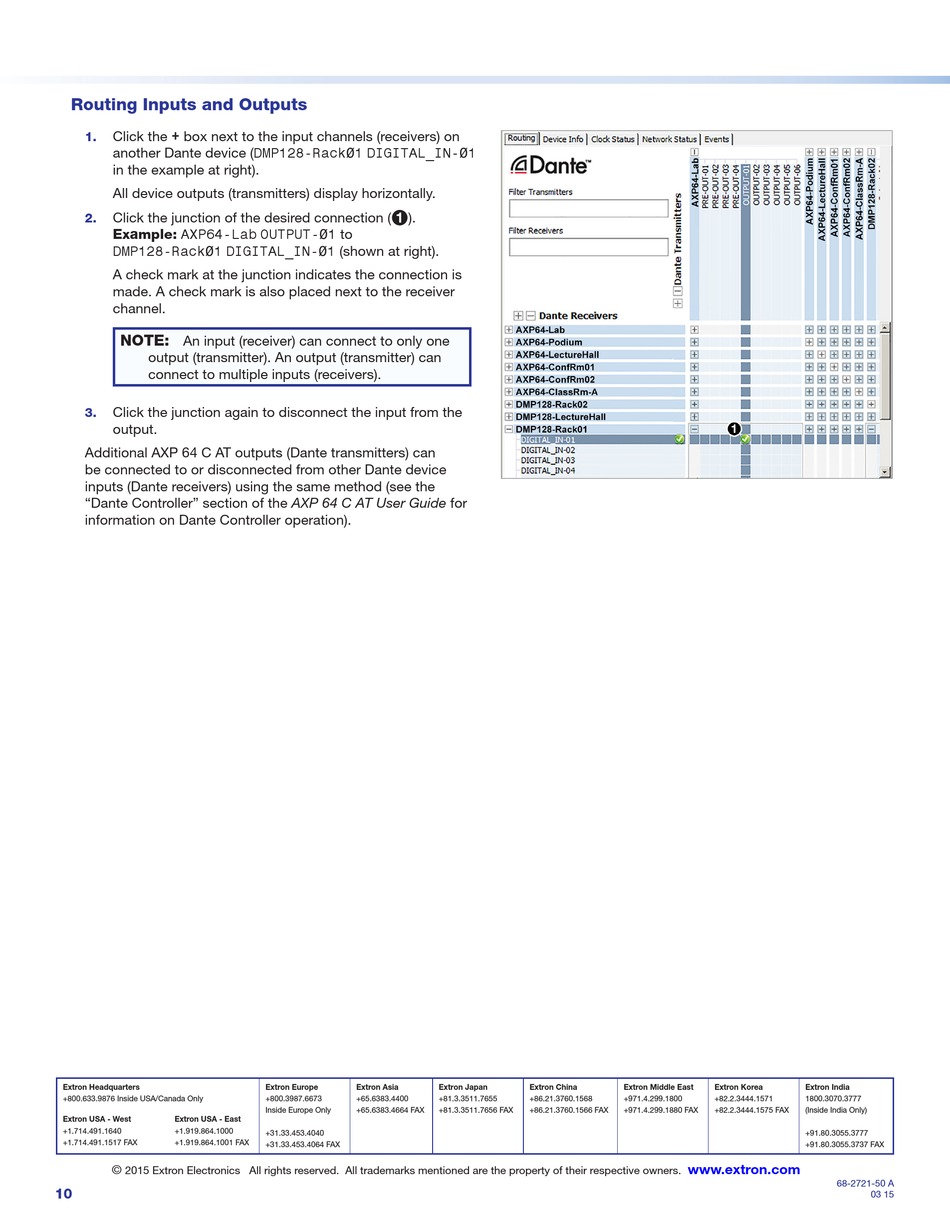

Routing Inputs and Outputs
Click the + box next to the input channels (receivers) on
1.
another Dante device (DMP128-Rack01 DIGITAL_IN-01
in the example at right).
All device outputs (transmitters) display horizontally.
Click the junction of the desired connection (
2.
Example: AXP64-Lab OUTPUT-01 to
DMP128-Rack01 DIGITAL_IN-01 (shown at right).
A check mark at the junction indicates the connection is
made. A check mark is also placed next to the receiver
channel.
NOTE:
An input (receiver) can connect to only one
output (transmitter). An output (transmitter) can
connect to multiple inputs (receivers).
Click the junction again to disconnect the input from the
3.
output.
Additional AXP 64 C AT outputs (Dante transmitters) can
be connected to or disconnected from other Dante device
inputs (Dante receivers) using the same method (see the
"Dante Controller" section of the AXP 64 C AT User Guide for
information on Dante Controller operation).
