Front Panel Indicators

Extron

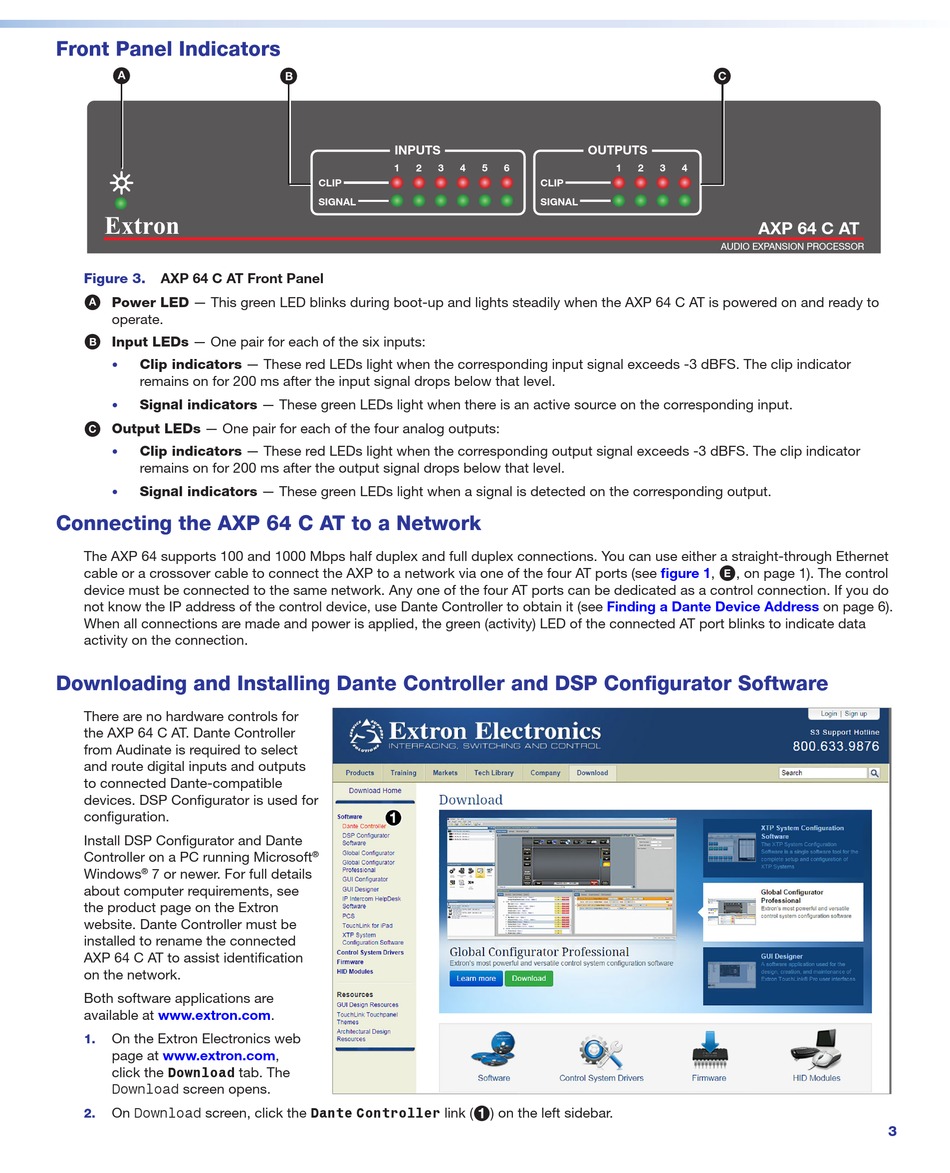

AXP 64 C AT Front Panel
Figure 3.
Power LED — This green LED blinks during boot-up and lights steadily when the AXP 64 C AT is powered on and ready to
A
operate.
Input LEDs — One pair for each of the six inputs:
B
Clip indicators — These red LEDs light when the corresponding input signal exceeds -3 dBFS. The clip indicator
•
remains on for 200 ms after the input signal drops below that level.
Signal indicators — These green LEDs light when there is an active source on the corresponding input.
•
Output LEDs — One pair for each of the four analog outputs:
C
Clip indicators — These red LEDs light when the corresponding output signal exceeds -3 dBFS. The clip indicator
•
remains on for 200 ms after the output signal drops below that level.
Signal indicators — These green LEDs light when a signal is detected on the corresponding output.
•
Connecting the AXP 64 C AT to a Network
The AXP 64 supports 100 and 1000 Mbps half duplex and full duplex connections. You can use either a straight-through Ethernet
cable or a crossover cable to connect the AXP to a network via one of the four AT ports (see
device must be connected to the same network. Any one of the four AT ports can be dedicated as a control connection. If you do
not know the IP address of the control device, use Dante Controller to obtain it (see
When all connections are made and power is applied, the green (activity) LED of the connected AT port blinks to indicate data
activity on the connection.
Downloading and Installing Dante Controller and DSP Configurator Software
There are no hardware controls for
the AXP 64 C AT. Dante Controller
from Audinate is required to select
and route digital inputs and outputs
to connected Dante-compatible
devices. DSP Configurator is used for
configuration.
Install DSP Configurator and Dante
Controller on a PC running Microsoft
Windows 7 or newer. For full details
®
about computer requirements, see
the product page on the Extron
website. Dante Controller must be
installed to rename the connected
AXP 64 C AT to assist identification
on the network.
Both software applications are
available at www.extron.com.
On the Extron Electronics web
1.
page at www.extron.com,
click the Download tab. The
Download screen opens.
On Download screen, click the Dante Controller link (
2.
INPUTS
1 2 3 4 5
CLIP
SIGNAL
®
1 ) on the left sidebar.
OUTPUTS
6 1 2 3 4
CLIP
SIGNAL
figure
Finding a Dante Device Address
Product Category
AXP 64 C AT
AUDIO EXPANSION PROCESSOR
1,
E , on page 1). The control
on page 6).
3
