OM POWER OM2000+ Manual page 13

BAND -­‐ B and s elector s witch
TUNE -­‐ A node c apacitor f or t uning
( higher f requencies t o " 0"; l ower f requencies t o „ 100").
LOAD -­‐ O utput c apacitor t unes a ntenna l oad r esistance t o t he a mplifier.
C apacity i s l ow a t „ 100" a nd h igh a t " 0" o n t he s cale.
TUNE L ED -­‐ T hree L EDs a ssists i n t uning t he a mplifier
WATMETER -­‐ A nalog d ouble s ystem m eter f or f orward a nd r eflected p ower m easuring

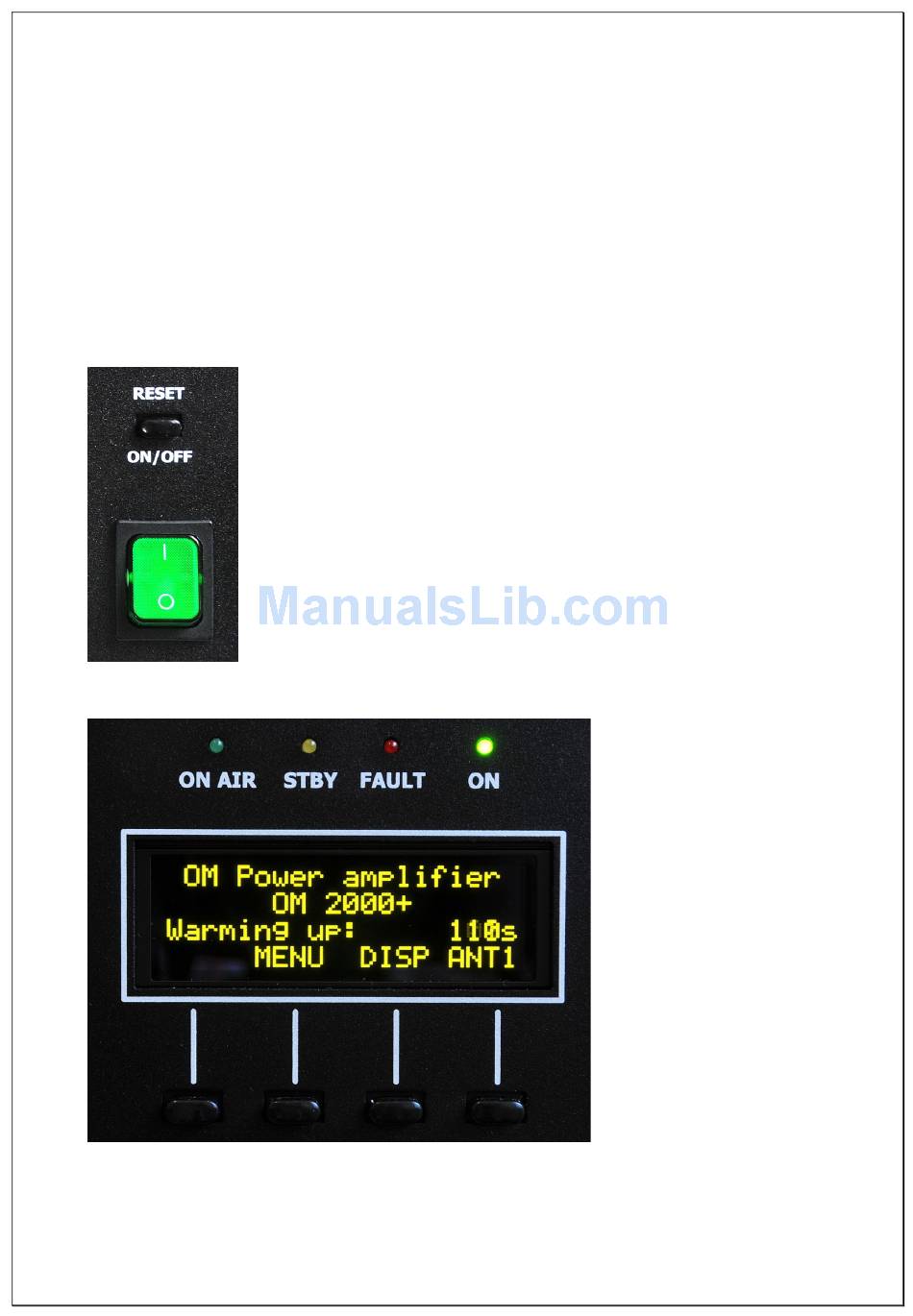

O N / O FF -­‐ L ong p ress ( abt. 1 s ec.) t o s witch P A O N/OFF
R ESET -­‐ S hort p ress t o r eset f aults o r w arnings
0 / I
Y ou c an s witch A ntenna p orts e ven i f P A i s s witched O FF.
S 1 S 2 S 3 S 4
P ower O N s mall 1 2V A PU f or l ogic a nd p rotection c ircuits
12
