SEWOO LK-D10 Manual

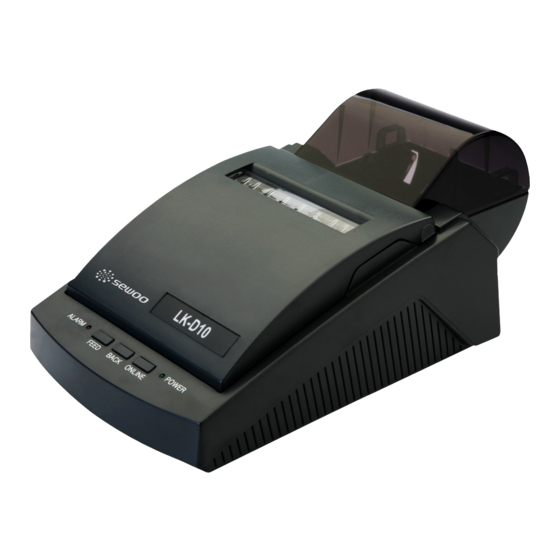

Sewoo lk-d10 impact dot matrix printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

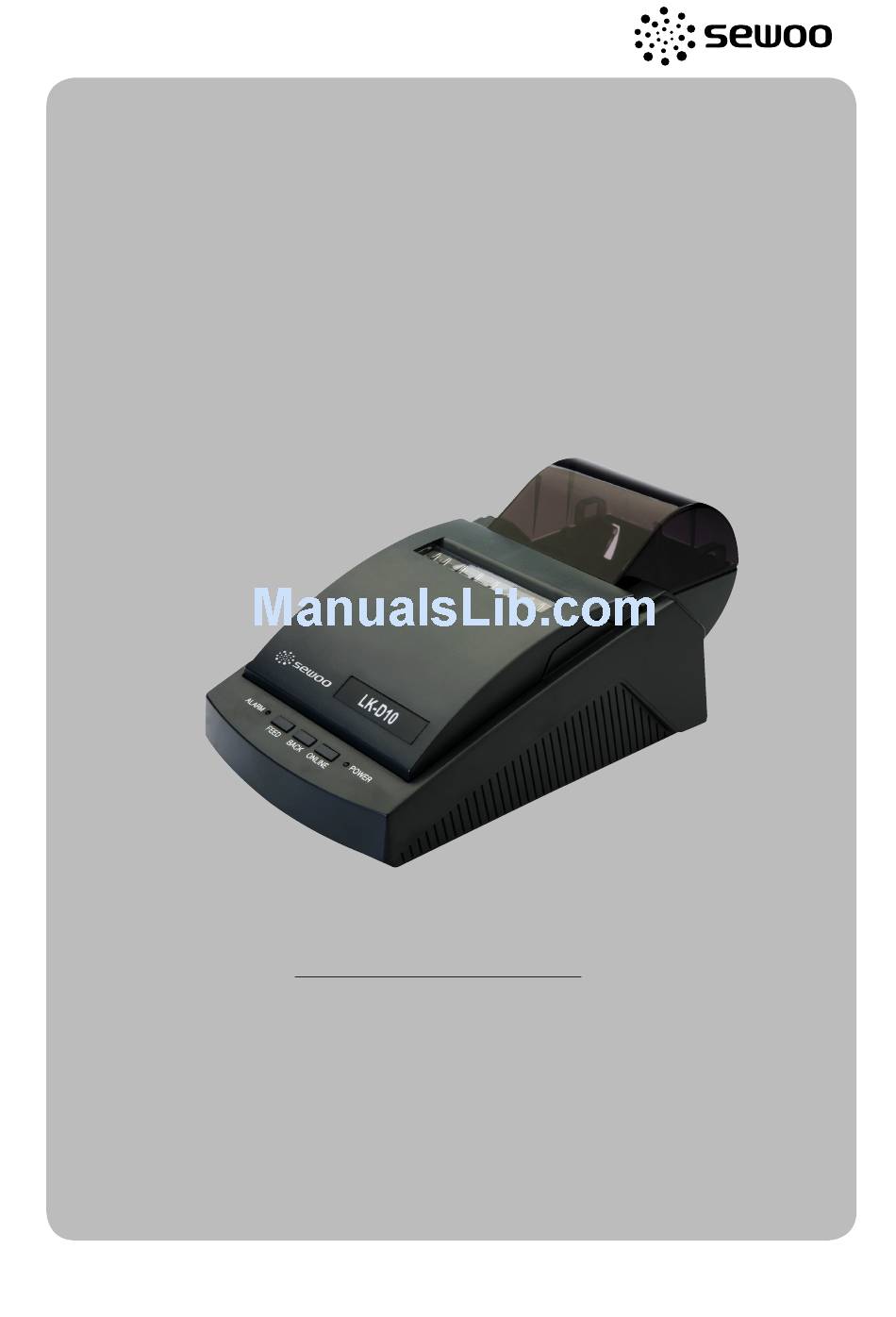

MODEL : LK-D10
Mini Dot Impact Printer
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-D10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-D10

Summary of Contents for SEWOO LK-D10

  • Page 1 MODEL : LK-D10 Mini Dot Impact Printer All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    Table of Contents 1. Features 2. Specification 3. Self Test 4. Configuration Setup 5. User Switches 5.1. Panel Switches 5.2. Power Switch 5.3. Indicators 6. Command List 6.1. EMULATION EPSON TM-U200 6.2. EMULATION CITIZEN iDP-3540 6.3. EMULATION VERIFONE 900 6.4. EMULATION STAR SP200 7.

  • Page 4: Features

    1. Features ♣Power Supply Requirements Either input 120VAC/Output 24VDC 2.5A for North America or Input 230VAC/Output 24VDC 2.5A for Europe with a 3pin mini-din connector power supply is provided. ♣Di p Switch Configuration Emulation mode, CPL Select mode, Flow Control mode, Data Width/Parity, and Baud Rate are all configured through dip switch settings.

  • Page 5: Specification

    2. Specification Printer Specifications MODEL LK-D10 PRINT METHOD 9-pin serial impact dot matrix PRINT DIRECTION Bi-directional (with logical seeking) NO. OF COLUMNS Epson Mode : 42/35, 40/33, Star Sp-200 : 42/35 Other Modes : 40/32 NO. OF DOTS/LINE 320 dots...
  • Page 6 Overall dimension...

  • Page 7: Self Test

    3. Self Test 1) While pressing the paper FEED switch after the printer in turned on the self test mode is initiated. The printer self test includes a listing of the current default settings and Dip Switch information. 2) While pressing the paper BACK switch after the printer in turned on the self test mode is initiated. The printer self test includes a listing of internal memory test, print head pin firing test, vertical line alignment test, and multiple character fonts/sizes.

  • Page 8: Configuration Setup

    4. Configuration Setup When the paper FEED switch is pressed and released instantly as the power is applied to the printer, the printer will print the current printer configuration settings along with the DIP switch information. If the printer setup needs to be changed, turn the Power Off before changing the setting. The printer will be setup at the factory as follows;...

  • Page 9: User Switches

    5. User Switches 5.1. Panel Switches FEED button Advance media in line feed increments if the FEED switch is pressed momentarily. If the FEED switch is pressed for more than 1 seconds, the media will advance continuously until the switch is released. BACK button Feed the media back in each line increment until 20 lines back if the BACK switch is pressed momentarily.

  • Page 10: Command List

    6. Command List 6.1. EMULATION EPSON TM-U200 Command Hex Code Description <09>H Horizontal tab <0A>H Print and line feed <0D>H Carriage Return DLE EOT <10>H<04>H<n> Real-time status transmission DLE ENQ <10>H<05>H<n> Real-time request to printer ESC SP <1B>H<20>H<n> Set right-side character spacing ESC ! <1B>H<21>H<n>...

  • Page 11: Emulation Citizen Idp-3540

    6.2. EMULATION CITIZEN iDP-3540 Command Hex Code Description <07>H Drive pulse setting command for 1st drawer <08>H Clear data in buffer <0A>H Paper feed <0C>H<n> Paper feed n lines <0D>H Print command <0E>H Select expanded character mode <0F>H Select normal character mode <11>H Initial set command <12>H...

  • Page 12: Emulation Verifone 900

    6.3. EMULATION VERIFONE 900 Command Hex Code Description <00>H Pad character <18>H Empty print buffer and cancel character attributes <0A>H Print and feed one line <0C>H Print data in buffer and eject paper to 1.2 <0D>H Line feed <12>H Change ribbon color <1E>H Set double width mode or <0E>H...

  • Page 13: Emulation Star Sp200

    6.4. EMULATION STAR SP200 Command Hex Code Description Differed drive command “A” for peripheral unit <07>H (Default setting) <18>H Cancel print data in buffer <0A>H Line feed <0D>H Line feed (same as LF) <0E>H Select expanded character mode <0F>H Cancel expanded character mode <1C>H Immediate drive command “B”...

  • Page 14: Interface

    7. Interface The tables below describe the type of socket and the function of each pin. <D-SUB 25 Female Serial Port> <D-SUB 25 Male Parallel Port> <D-SUB Centronics Parallel Port> <D-SUB 9 Female Serial + MSR Port>...

  • Page 15: Serial Interface

    7.1. Serial interface 7.1.1. D-SUB 25Pin Serial Port SIGNAL DESCRIPTION Output Printer transmit data line RS-232C level Input Printer receive data line RS-232C level 4, 20 Output Printer handshake to host line RS-232C level Input Data Send Ready 1, 7 System Ground 7.1.2.

  • Page 16: Parallel Interface

    7.2.Parallel interface 7.2.1. D-SUB 25Pin Parallel Port SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0-7 Input Data bit Transmitted 0 – 7 ACK- Output Data receiving competed BUSY Output Impossible to printer data receiving Output Paper empty SELECT Output Printer’s status for ON/OFF line AUTO FD- Input...

  • Page 17: Cash Drawer Connector

    8. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0Amp at 24VDC for 510 ms or less, when not printing. <Cash Drawer Connector> SIGNAL DESCRIPTION Signal GND...

  • Page 18: Power Supply

    9. Power Supply The printer requires an external power supply with the power rating of 24VDC/2.5A with Input 120VAC for North America or 24VDC/2.5A with Input 230VAC for Europe. A power supply is included in the box. <Power Supply Connector>...

  • Page 19: Dip Switch Settings

    10. Dip Switch Settings This table gives the definition for the DIP switch settings. 10.1. External Di p Switch Factory Function Setting setting Epson TM-U200 Epson Emulation Citizen iDP3540 (*1) (TM-300) (OFF) U200 (Star SP200) (ON) CR Only CR only CR + LF 40/33 40/33 Char/Line...

  • Page 20: Internal Dip Switch

    10.2. Internal Di p Switch Function Setting Roll Type Paper Type Sprocket Type Not Install Two Color Install Wansung Hangul Johap Epson TM-U200/Citizen iDP-3540 Emulation Epson TM-300/STAR SP-200...
  • Page 25 SEWOO TECH CO.,LTD. Doosung BD, 689-20, Geumjung-dong, Gunpo-si, Gyeonggi-do, 435-862 South Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com Rev. 1.0...
