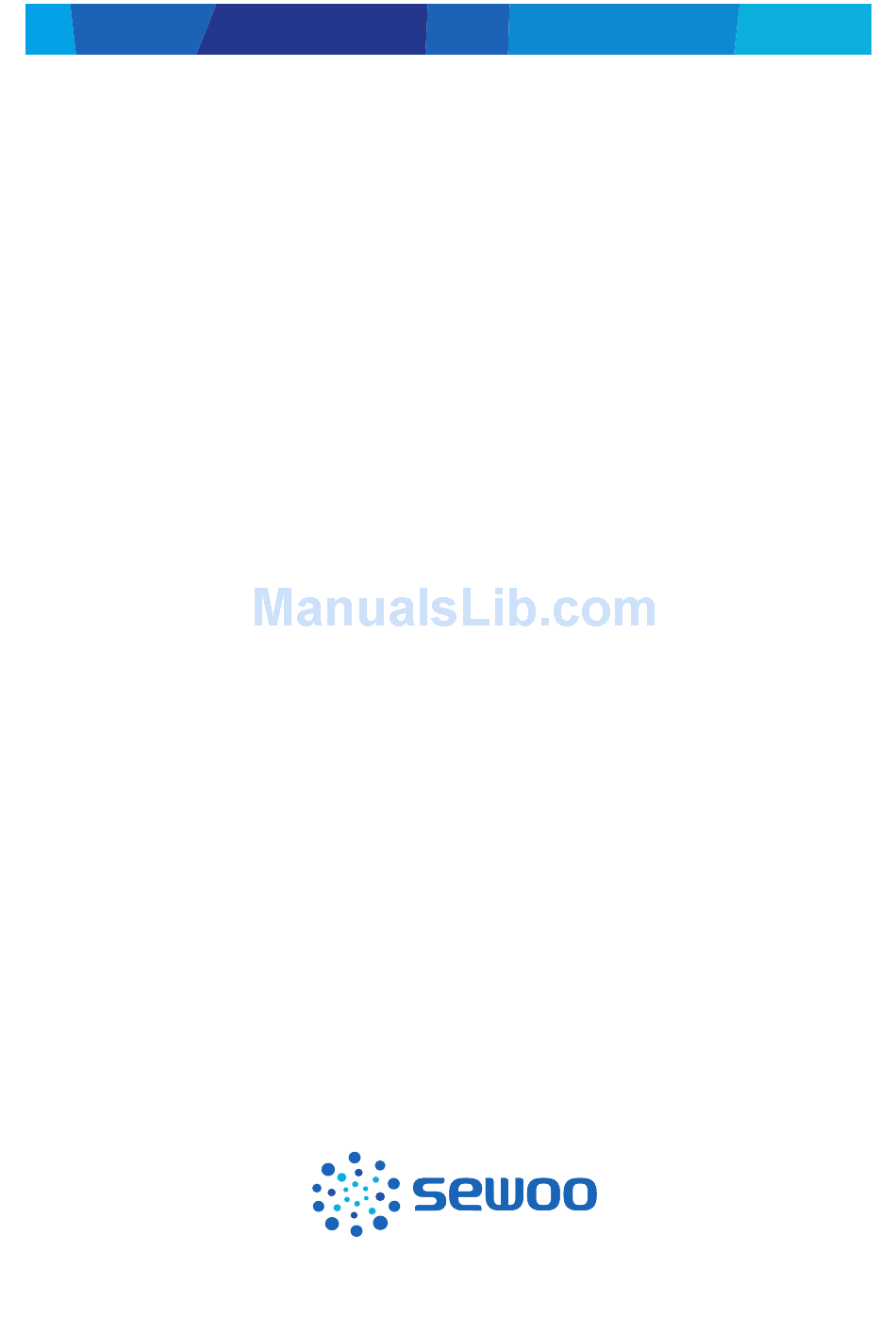

CONFIGURATION MANUAL
Rev.B 12/17
(Configuration Tool)
J. STEPHEN Lab., Ltd.
The manual and product are protected by copyright.

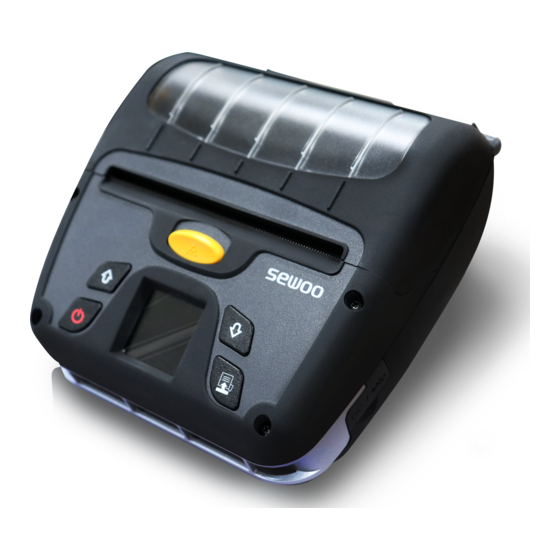

MOBILE PRINTER

MODEL : LK-P SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P SERIES

Summary of Contents for SEWOO LK-P SERIES

  • Page 1: Mobile Printer

    CONFIGURATION MANUAL Rev.B 12/17 (Configuration Tool) J. STEPHEN Lab., Ltd. The manual and product are protected by copyright. MOBILE PRINTER MODEL : LK-P SERIES...

  • Page 2: Table Of Contents

    Table of Contents 1. Instruction 2. Emulation Setting 3. Code Page Setting (ESC/POS Only) 4. Density Setting (ESC/POS Only) 5. Power Save Mode Setting 6. Label Media Setting(CPCL, ZPL, EPL Only) 7. Bluetooth Setting 7-1. Numeric Comparison Setting 8. NFC Setting 9.

  • Page 3: Instruction

    To configure the printer with Configuration Tool Utility. 1. Make sure that you have a PC running Windows XP or later. 2. Download Configuration Tool utility from the Sewoo website at (www.miniprinter.com). 3. Connect your printer to your PC using USB cable (Recommended).

  • Page 4: Emulation Setting

    2. Emulation Setting To configure Printer’s Emulation with Configuration Tool Utility. 1. Click Get Emulation to check current emulation. 2. Update or check your settings. A. CPCL F/W (You can Select CPCL or ESC/POS) B. ZPL F/W (You can Select ZPL or EPL) 3.

  • Page 5: Code Page Setting(Esc/Pos Only)

    3. Code Page Setting(ESC/POS Only) To configure Code Page settings with Configuration Tool Utility. (Code page can be set by command in CPCL, ZPL) 1. Update or check the Code Page in the Code Page Setting. 2. Click Save Code Page to finish. 3.

  • Page 6: Density Setting(Esc/Pos Only)

    4. Density Setting(ESC/POS Only) To configure Density setting with Configuration Tool Utility. 1. Update or check the Density in the Density Settings. 2. Click Save Density to finish.

  • Page 7: Power Save Mode Setting

    5. Power Save Mode Setting(ESC/POS Only) To configure Power Save Mode setting with Configuration Tool Utility. 1. Update or check the Power Save Mode in the Power Save Mode. 2. Click Save Power Save Mode to finish. Use the following table to Printer’s Emulation setting Mode Description None Power Save...

  • Page 8: Label Media Setting(Cpcl, Zpl, Epl Only)

    6. Label Media Setting(CPCL, ZPL, EPL Only) To configure Label Media Type setting with Configuration Tool Utility. 1. Update or check the Label Media Settings in the Label Media Setting. 2. Select Sensor position and Click Media type (Gap or Black Mark or Continuous) to finish. Use the following table to Label Media setting.

  • Page 9: Bluetooth Setting

    7. Bluetooth Setting To configure Bluetooth setting with Configuration Tool Utility. (Bluetooth is Optional Interface. For more information, Please contact your supplier) 1. Click Get Bluetooth Information. 2. Update or check your settings 3. Click button you need to set to finish.
  • Page 10 7. Bluetooth Setting Use the following table to Bluetooth setting Name Description BT Address The MAC address for Bluetooth Module. Bluetooth device The Name of Bluetooth Printer to pair. name (Bluetooth ID) PIN Code Pin code to pair (Default : 0000 or 1234) iOS auto connection Allowing iOS devices to automatically reconnect the printer.

  • Page 11: Numeric Comparison Setting

    7-1. Numeric Comparison Setting 1. Click the ‘Enable’ tab on the Numeric Comparison Settings. 2. Reboot a printer. 3. Click the Bluetooth device name on the PC or mobile Bluetooth setting screen. 4. The passkey(6 digits) will be displayed on the printer and the device. (If a printer doesn’t have a LCD, the passkey will be printed out.) 5.

  • Page 12: Nfc Setting

    8. NFC Setting 1. Turn on the NFC function on your mobile devices. (Choose either NFC P2P mode or standard mode / Connection is not available with NFC card mode.) NOTE A display type can be slightly different depending on device models. 2.

  • Page 13: Wi-Fi Setting

    8. Wi-Fi Setting To configure Wireless LAN settings with Configuration Tool Utility. (Wi-Fi is Optional Interface. For more information, Please contact your supplier.) 1. Click Start Wi-Fi Settings. 2. Select the connection in the Port Information. 3. Click Open port. 4.
  • Page 14 8. Wi-Fi Setting Use the following table to Wireless LAN setting. Number Name Description SSID The Network name to connect. Wi-Fi Mode Set the mode of the device to adhoc, infrastructure or SoftAP. Wi-Fi Channel Set the channel to use. Wi-Fi Encryption Set the type of Encryption to none, WEP-64, WEP-128 or WPA.
  • Page 15 8. Wi-Fi Setting 7. To Set Wi-Fi printer correctly, you need to check the AP’s or Router’s setting in advance. Ex) D-Link Router (Model: DIR-820L)
  • Page 16 J. STEPHEN Lab., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea TEL : +82-31-8077-5000 FAX : +82-31-459-8880 www.miniprinter.com...
