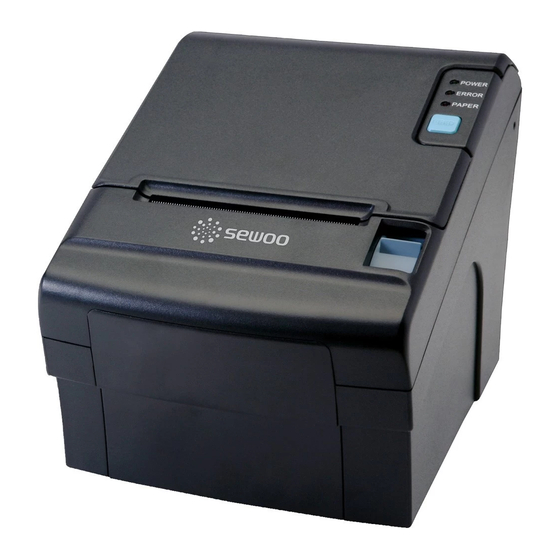

- Page 1 SEWOO TECH CO.,LTD. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeongi-do, 447-210, Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-TL200 Receipt Printer User’s Manual TL200 Rev. B 8/12 All specifications are subject to change without notice...
-
Page 3: Table Of Contents
Table of Contents 1. Parts Identifications CONTROL PANEL 1. Parts Identifications Features LED indicators 2. Setting up the printer to indicate printer status and switches to operate 2.1 Unpacking PRINTER COVER the printer. 2.2 Connecting the cables Open this cover to load or replace paper. -
Page 4: Setting Up The Printer
2. Setting Up the Printer 2-1. Unpacking 2-2. Connecting the Cables Your printer box should include these items. If any items are damaged or missing, please contact your You can connect up the cables required for printing to the printer. dealer for assistance. - Page 5 2-2-1. Interface Connector 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing. <9 Pin Serial> <USB “B”...
-
Page 6: Loading The Roll Paper
5. Be sure to note the correct direction that the paper comes off the roll. 2-3. Loading the Roll Paper Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. (Turn off power switch) 1. -
Page 7: Adjustment Of Paper Width
♣CAUTION: 2-4. Adjustment of paper width When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on 1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow. and off several times. -
Page 8: Control Panel And Other Functions
4. Self Test 3. Control panel and other functions The self-test result indicated whether the printer is operating properly. Also with this, user can check 3-1. Control panel following options or status of the printer. You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’... -
Page 9: Ascii Print
5. ASCII Print 7. Hexadecimal Dump ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works This feature allows experienced users to see exactly what data is coming to the printer. This can be properly with this useful in finding software problems. -
Page 10: Printer Cleaning
8. Printer cleaning 9. Specifications Appendix A : Specifications If the interior of the printer is dusty, printing quality can be lowered. In this case, follow the instructions below to clean the printer. 9-1. General Specifications (1) Printing Method Direct line thermal printing. ♣Note : 1. -
Page 11: Auto Cutter Specifications
(8) Overall dimension 9-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.06 ~ 0.09 mm (3) Cutter Life 1.5 million cuttings 9-3. Interface USB (B type) + Serial Build-in 9-4. Electrical Characteristics (1) Input Voltage DC 24V ±... -
Page 12: Environmental Requirements
10. Command List ♣Important! Command Function REMARKS When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Horizontal tab (1) Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. Print and line feed (2) Be careful about installing the printer in an area where there is noise. - Page 13 Command Function REMARKS ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS /...
