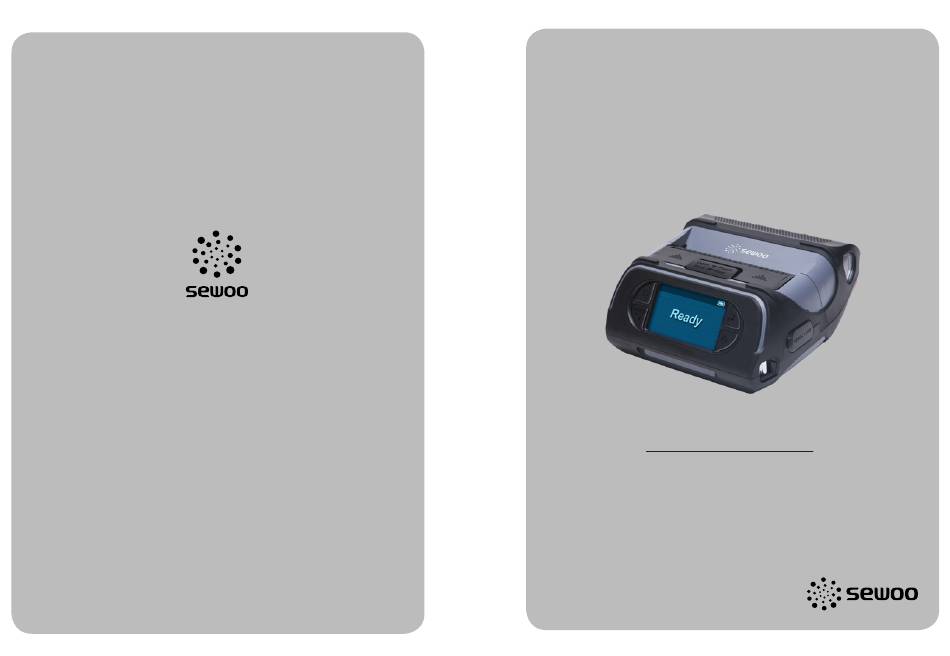

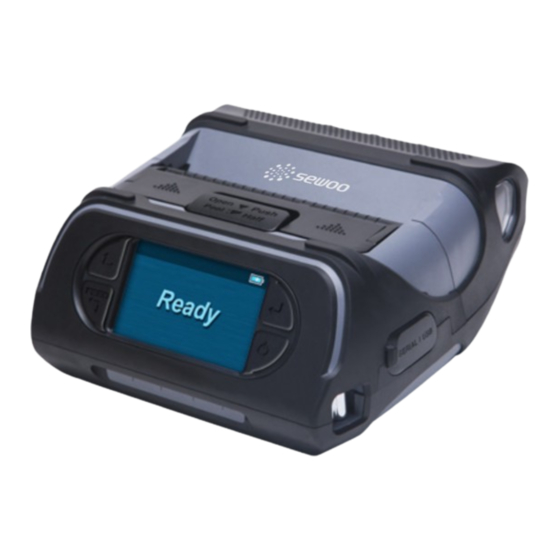

- Page 1 SEWOO TECH CO.,LTD. 374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P43 USER’S MANUAL All specifications are subject to change without notice P43 Rev. A 06/13...
-
Page 2: Table Of Contents
Table of Contents RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION 1. Safety Caution 2. Unpacking 3. Product Overview 4. Installation & Usage 4-1. Display 4-2. Installing the Battery 4-3. -
Page 3: Safety Caution
1. Safety Caution For higher reliability and safety, consider the following precautionary measures. WARNING Read and follow the instructions carefully before running of the product. Failure to follow these instructions could result in fire, electric shock, or other injuries, or property damage Indication Prohibition Must follow... -
Page 4: Unpacking
2. Unpacking 3. Product Overview Standard Front PEELER WING PEELER BODY Printer Battery COVER OPEN BUTTON DISPLAY SERIAL AC cord Adaptor USB Cable Bottom BATTERY Belt Clip Quick Reference BELT CLIP Optional CONNECTOR SHOULDER STRAP RING CHARGER CONNECTOR Shoulder Strap Paper Serial Cable... -
Page 5: Display
4. Setting Up the Product 4-2. Installing the Battery 4-1. Display Function Button Name Advances the supply. Clears error message. Moves down through menu options. Paper Feed / 1. Refer to 4-9 for Diagnostic Test information. Down Button 2. Refer to the service manual regarding Hexadecimal Dumping. -
Page 6: Removing The Battery
4-3. Removing the Battery 4-4. Charging the Battery 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. Remove the battery. Lift out the battery. 3. Plug the power code to electrical outlet. 3-4-1 The status of lamp in charging Status Charging... -
Page 7: Interface Cap Installation
4-6. Interface Cap Installation 4-5. Belt Clip Usage When Interface Cap separated from Using a sharp tool, insert the Cap Insert screw into belt clip. the printer, try to array the Cap Hook Hook to the hole which is located in in horizontal direction as shown in the the right side of Interface Cap. -
Page 8: Roll Paper Installation
4-7. Roll Paper Installation Be cautious to handle the product when Printer Cover is an open position. You may have a potential risk of injury when Paper Cover closes CAUTION Open the Paper cover by pressing the Put the stock in so it unrolls from the Open button and set the width of paper bottom. -
Page 9: Install / Uninstall The External Paper Guides
4-8. Install / Uninstall the External Paper Guides When install the external paper, set the printer 20mm above from the Uninstall the External Paper Guides ground. Then insert the paper in right direction to the backside of the printer paper slot and adjust the paper guide to fit the paper properly. CAUTION Recommendation Please set apart the printer and paper at least... -
Page 10: Peel Mode
4-9. Peel Mode When users operates the peeler like the image below that has Peel Mode slits on the label(1) and the perforated label(2), there might be an error in the peeler function CAUTION Paper (1) Label Paper Engraved Line With a roll of stock installed, slide the Push the peeler body until you see peeler body towards the back of the... -
Page 11: Shoulder Strap Installation
4-11. Diagnostic Test 4-10. Shoulder Strap Installation Optional Press and hold the Feed button Insert the strap into the hook of the printer. Turn off the printer. and Power button. NOTE 1. For Hex Dump mode, do steps 1-2 then press the Feed button. -
Page 12: Peripherals Connection
5. Peripherals Connection 5-1. Interface Cable Connection The Sample of Self-test Printout Serial 1. Connect the USB or Serial cable to the cable connector on the printer. NOTE Use cable only offered by the printer manufacturer. 2. Connect the interface cable into the USB or Serial port of the device Upon initial installation or for troubleshooting, you can run the diagnostic test to (PDA, PC, etc.) get information about:... -
Page 13: Printer Cleaning
6. Printer Cleaning If the interior of the printer is dusty, printing quality can be lowered. In this case, follow the instructions below to clean the printer. 6-2. Platen Roller Cleaning 1.Clean the platen roller with a clean soft cloth moistened with isopropyl 6-1. -
Page 14: Specification
7. Printer Specification 7-1. Specification Display TFT-LCD (RGB) 240X400 Printing Method Direct Thermal Adaptor Input AC 100 ~240V 50/60Hz Printing Speed 80mm/sec Output 9.0V, 4.0A Resolution 203 DPI X 203 DPI Battery Battery Type Li-ion Character ALPHA NUMERIC Character, Extension Character Output 7.4V, 19.24wh Barcode... -
Page 15: Cpcl Command Compatibility
8. CPCL Command Compatibility NOTE Graphics Compatibility Compatible with only ○ Partially commanders provided by Not Compatible Compatible Compatible LINE ○ the manufacturer. INVERSE-LINE ○ △ ○ ● PATTERN ○ GRAPHICS ○ Printer Commands Compatibility ○ PRINT ○ Advanced Commands Compatibility FORM ○... -
Page 16: Esc/Pos Command Compatibility
9. ESC / POS Command Compatibility Command Function Line Print Mode Compatibility Horizontal tab SETLP ○ Print and line feed SETLF ○ Print and carriage return Moving With X and Y Coordinates ○ Print end position label to start printing LMARGIN ○... - Page 17 ESC＼ Set relative position ESC a Align position ESC d Print and feed paper n lines ESC t Select character code table ESC { Set/cancel upside-down character printing FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $...
