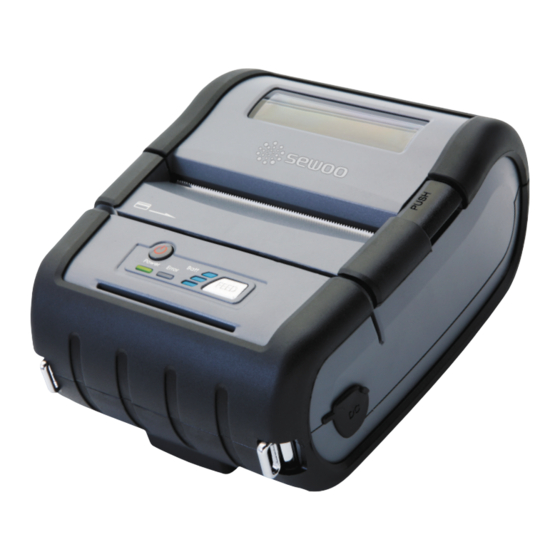

SEWOO LK-P30B User Manual

Mobile printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SEWOO TECH CO.,LTD.
Doosung BD, 689-20, Geumjung-dong, Gunpo-si, Gyeonggi-do, 435-862 South Korea
TEL : +82-31-459-8200 FAX : +82-31-459-8880
www.miniprinter.com
MODEL : LK-P30B
MOBILE PRINTER
All specifications are subject to change without notice
Rev. 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P30B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P30B

Summary of Contents for SEWOO LK-P30B

  • Page 1 SEWOO TECH CO.,LTD. Doosung BD, 689-20, Geumjung-dong, Gunpo-si, Gyeonggi-do, 435-862 South Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P30B MOBILE PRINTER All specifications are subject to change without notice Rev. 2.0...

  • Page 2: Table Of Contents

    Table of Contents 1. Unpacking 2. Product overview 3. Usage and Installation 3-1. Control panel usage 3-2. Battery Installation 3-3. Battery removal 3-4. Battery charging 3-5. Battery charger usage 3-6. Usage of Cigar Jack for charging 3-7. Belt clip usage 3-8.

  • Page 3: Unpacking

    1. Unpacking 2. Product overview Standard Front Power switch Open Button Control Printer Battery Belt Buckle Panel Paper feed button DC Power Charger Serial Cable USB Cable Shielded Rear Roll paper Quick Manual Optional Battery Belt clip SERIAL hole Battery Holder (Cradle) Cigar Jack Charger Shoulder strip Leather case...

  • Page 4: Usage And Installation

    3. Usage and Installation 3-1 Control panel usage 3-2 Battery Installation Hook Button Name function This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 seconds button and it will turn on the power.

  • Page 5: Battery Removal

    3-4 Battery charging 3-3 Battery removal 180˚ Lamp 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. 3. Plug the power code to electrical outlet. Put up the Belt clip hole turning 180 degree. 3-4-1 The status of lamp in charging Status charging...

  • Page 6: Battery Charger Usage

    3-5 Battery charger usage 3-6 Usage of Cigar Jack Charger for charging Optional Optional Lamp Printer DC Jack 1. Insert the battery into the battery holder as shown above 2. Connect the DC JACK to the power electrical outlet. 3. Plug the power code into the electrical outlet. 4.

  • Page 7: Belt Clip Usage

    3-7 Belt Clip usage 3-8 Roll Paper installation Insert the belt clip screw into the hole of Belt clip Press the PUSH button to open Insert the paper in the right the paper cover direction Pull a short length of paper out of Tear off the additional paper using As shown in the picture, tighten the screw with a screw driver.

  • Page 8: Leather Case Usage

    3-9 Leather case usage 3-10 Self Test Optional Turn off the power pressing the While you are pressing the FEED power button for approximately button, press the power button Open the leather case Place the printer into the leather 3 seconds. case NOTE 1.

  • Page 9: Msr Usage

    3-11 MSR usage The sample of self test printout Optional Insert and swipe the card in the direction of the arrow as shown in the picture. When the printer is installed initially or when you face a problem, you can run the self test and check the information about -Control Circuit, Mechanism, Print Quality, ROM Version After checking with self-test and no issues are found, you can examine other...

  • Page 10: Ic Card Usage

    4. Peripherals connection 3-12 IC CARD usage This printer can communicate with Peripherals device via Bluetooth and cables. Optional 4-1 Bluetooth Connection Insert the card in the direction of the arrow as shown in the picture. 1. Printer can be connected to the PDA and PC which can do wireless communication.

  • Page 11: Interface Cable Connection

    5. Pritner Specification 4-2 Interface Cable Connection 5-1 Specification Printing Method Direct Thermal Printing Speed 100mm/sec Resolution 203 DPI X 203 DPI Character Font A (12X24), Font B (9X17) Character per line Font A : 48pt , Font B : 64pt Character set ALPHA NUMERIC Character, Extension Character...

  • Page 12: Cpcl Command Compatibility

    6. CPCL Command Compatibility NOTE IC CARD (Optional) EMV level one certified smart card reader Compatible with only Battery Charger input AC100~240V, 50/60Hz Partially commanders provided Compatible Compatible Compatible output 8.4V , 800~1400mA by the manufacturer. Battery Battery type Li-ion ○...
  • Page 13 Graphics Line Print Mode Compatibility Compatibility ○ SETLP ○ LINE ○ SETLF ○ INVERSE-LINE Moving With X and Y Coordinates ○ ○ PATTERN LMARGIN ○ ○ GRAPHICS ○ SETBOLD ○ ○ SETSP ○ Advanced Commands Special ASCII Characters ○ Compatibility CONTRAST SETFF ○...

  • Page 14: Certification

    7.Certification FCC Information CAUTION Antenna shall be mounted in such a manner to minimize the potential This device complies with part 15 of the FCC Results. Operation is subject for human contact during normal operation. The antenna should not to the following two conditions: be contacted during operation to avoid the possibility of exceeding the (1) This Device may not cause harmful interface, and FCC radio frequency exposure limit.

  • Page 15: Setting Up The Software

    8. Setting up the software Please refer to the programming manual included in CD.
