Summary of Contents for SEWOO LK-P300
- Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P300 ENG Rev. A 02/2021...

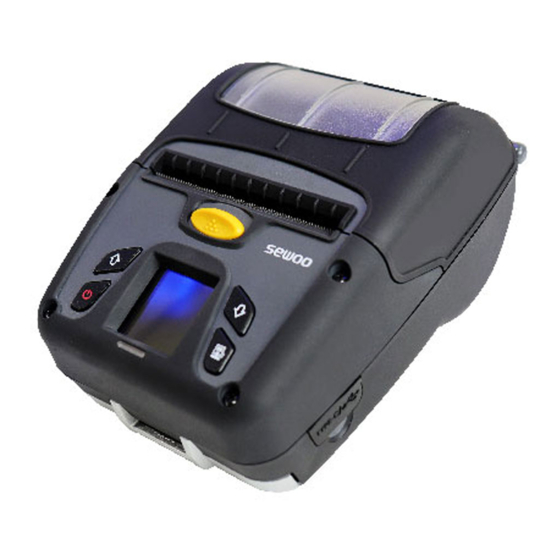

- Page 2 MODEL : LK-P300 MOBILE PRINTER(Wi-Fi & Bluetooth) All specifications are subject to change without notice...
- Page 3 Following information shall be included in the manual Information to User; Caution: the user that changes or modifications not expressly approved by the Aroot Co., Ltd. responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and 2) T his device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
- Page 6 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn off the product. Potential risk of malfunction, electric Turn off the power shock, or fire.
-
Page 7: Table Of Contents
Table of Contents Product Overview 1. Unpacking 2. Product overview 3. Control Panel Usage Set Up 4. Paper Installation 5. Battery 5-1. Battery Installation 5-2. Battery Removal 5-3. Battery Charging 5-4. Charging Cradle(optioanl) 5-5. Set Cradle(optioanl) 6. Belt Strap 7. Self Test Peripheral Connection 8. - Page 8 Maintenance 9. Cleaning the Printer 9-1. Print-Head Cleaning 9-2. Platen Roller Cleaning 10. JAM Error Spectification 11. Black Mark 12. Gap 13. Printer Specification 14. Utilities 15. S/W...
-
Page 9: Unpacking
1. Unpacking Standard Printer Battery Charger USB Cable Quick Manual CD (Manual) Roll Paper Belt Strap Cleaning Pen Optional Charging Cradle Shoulder Strap Car Charger Charger Set Cradle Large Battery... -
Page 10: Product Overview
2. Product overview Front COVER OPEN Button POWER Button Paper FEED Button Rear Strap Bracket Battery... -
Page 11: Control Panel Usage
3. Control Panel Usage Button Name Function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will Button power on. - When you press this button while the printer is powered on, the printer will turn off. -
Page 12: Paper Installation
4. Paper Installation CAUTION Make sure to be careful of the HOT head COVER OPEN button Paper guide Press the COVER OPEN button up to open the Place the paper roll as shown. Make sure Paper cover. You can set the width of paper the paper is placed in the right direction. -
Page 13: Battery
5. Battery 5-1. Battery Installation Please make sure you hear the closing sound of the upper cover. HOOK 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer. -
Page 14: Battery Removal
5-2. Battery Removal REMOVE Remove the battery as shown. 1 Press up on the battery handle and lift it up. 2 Remove the battery. -
Page 15: Battery Charging
5-3. Battery Charging Lamp Lamp 1 Make sure the printer is turned off. 2 After opening the cover, connect the to the printer. 3 Plug the power cord into the electrical outlet. NOTE 01 If the charger provided by the manufacturer is not used, the printer can be damaged, and the manufacturer is not liable for the consequential damage. -
Page 16: Charging Cradle(Optioanl)
5-4. Charging Cradle Optional Lamp 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the electrical outlet. 3 Plug the power cord into the electrical outlet. 4 Once the charging is completed, remove the battery from the charger. The charging status LED Status charging... -
Page 17: Set Cradle(Optioanl)
5-5. Set Cradle Cradle Lever Lamp 1 Place and slide the product from top to bottom of the Set Cradle as shown in the picture. 2 Connect the USB cable to the Set Cradle. 3 When charging is complete, push the Cradle Lever and take out the product to the top of the Set Cradle. -
Page 18: Belt Strap
6. Belt Strap Prepare the belt strap. Put the strap into the strap bracket hole as shown. Turn the strap and printer over and Adjust the strap length for the user’s put the strap into the hook as shown. convenience. -
Page 19: Self Test
7. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately press the power button. 3 seconds. NOTE 01 To enter hex dump mode, press the FEED button once more. 02 If the FEED button is not pressed, the self-test will automatically finish after 3 seconds. - Page 20 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.
-
Page 21: Peripheral Connection
8. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 8-1. Bluetooth Connection 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities (PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer. -
Page 22: Wi-Fi Connection
8-3. NFC Connection The printer can be connected to devices equipped with NFC communication capabilities. Use the NFC connection function supported by the device to connect to the printer. NOTE - Please refer to the CONFIGURATION MANUAL for details. - NFC is only compatible with Bluetooth. -
Page 23: Interface Cable Connection
8-4. Interface Cable Connection COVER 1 Flip over the connector cover and connect USB cable to the printer connector. NOTE Only use cables included with the printer. (USB) 2 Connect the interface cable to the USB port of the device (PDA, PC, etc.). -
Page 24: Cleaning The Printer
9. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning. -
Page 25: Platen Roller Cleaning
9-2. Platen Roller Cleaning 1 Clean the Roller with a soft cloth with alcohol or a cleaning pen. 2 Wipe the entire Roller by rotating it with your fingers. 3 When using a linerless paper, wipe the surrounding parts that touch the surface of the paper. Cover Top Roller Frame Roller... -
Page 26: Jam Error
10. JAM Error CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button up to open the PRINTER COVER. NOTE NOTE Please make sure you hear the If the cover is not shut down completely, closing sound of the upper cover. -
Page 27: Black Mark
11. Black Mark... -
Page 28: Gap
12. Gap... -
Page 29: Printer Specification
13. Printer Specification Printing Method Direct Thermal Printing Speed Max. 127 mm/s Resolution 203 DPI Font A(12×24), Font B(9×17), Asian Font(KOR,JPN,CHN-GB2312,CHN- Character Big5), Font0/1/2/4/5/6/7, Resident TTF, Downloadable TTF, FontA~H, FontGS, Residnt TTF(Font0), Font 1~8 - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS UPC-E, Codabar, Code93, Code128 - 2D : QR, PDF417... - Page 30 Thermal Receipt / Label / Linerless Type Roll Max Paper Max. 66.5 m Diameter 12.5 mm Roll Core Standard Interface Wi-Fi(802.11a/b/g/n/ac), Bluetooth Smart Option ready combo(Bluetooth 4.2+BLE) Input AC 100 ~ 240V, 50/60Hz Battery Charger 5V / 2A Output Li-ion Type Battery Output...
-
Page 31: Utilities
This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication, (ESC/POS) and able to printer settings. -
Page 32: S/W
Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
