SEWOO TECH CO.,LTD.
Doosung BD, 689-20, Geumjung-dong, Gunpo-si, Gyeonggi-do, 435-862 South Korea
TEL : +82-31-459-8200 FAX : +82-31-459-8880
www.miniprinter.com

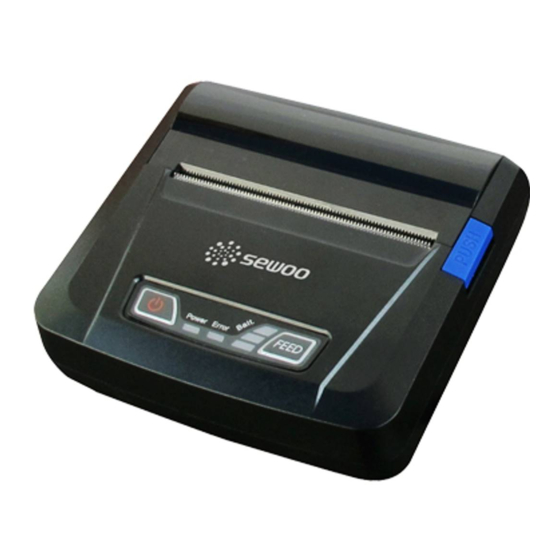

MODEL : LK-P31
MOBILE PRINTER
All specifications are subject to change without notice
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P31 and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LK-P31

Summary of Contents for SEWOO LK-P31

  • Page 1 SEWOO TECH CO.,LTD. Doosung BD, 689-20, Geumjung-dong, Gunpo-si, Gyeonggi-do, 435-862 South Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P31 MOBILE PRINTER All specifications are subject to change without notice Rev. 1.0...

  • Page 2: Table Of Contents

    Table of Contents 1. Unpacking 2. Product overview 3. Usage and Installation 3-1. Control panel usage 3-2. Battery Installation 3-3. Battery removal 3-4. Battery charging 3-5. Battery charger usage 3-6. Usage of Cigar Jack for charging 3-7. Roll paper installation 3-8.

  • Page 3: Unpacking

    1. Unpacking 2. Product overview Standard Front Power switch Control Printer Panel Open Button Paper feed button Charger Battery USB Cable Shielded Rear Roll paper Quick Manual Optional Battery Battery Holder (Cradle) Cigar Jack Charger Case Usage...

  • Page 4: Usage And Installation

    3. Usage and Installation 3-1 Control panel usage 3-2 Battery Installation Hook Button Name function This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 seconds button and it will turn on the power.

  • Page 5: Battery Removal

    3-4 Battery charging 3-3 Battery removal Lamp 1. Be sure that the printer is turned off After putting up the belt clip, remove the battery holding it up as shown above. 2. After open the DC JACK cover, insert DC JACK into the printer. 3.

  • Page 6: Battery Charger Usage

    3-5 Battery charger usage 3-6 Usage of Cigar Jack Charger for charging Optional Optional Lamp Printer DC Jack 1. Insert the battery into the battery holder as shown above 2. Connect the DC JACK to the power electrical outlet. 3. Plug the power code into the electrical outlet. 4.

  • Page 7: Roll Paper Installation

    3-8 Printer Case Usage 3-7 Roll paper installation Optional Put the printer into the case following the direction as shown Press the PUSH button to open Insert the paper in the right Open the Velcro. in the picture. the paper cover direction Close the Velcro.

  • Page 8: Self Test

    3-9 Self Test The sample of self test printout Turn off the power pressing the While you are pressing the FEED power button for approximately button, press the power button 3 seconds. When the printer is installed initially or when you face a problem, you can run the NOTE self test and check the information about 1.

  • Page 9: Peripherals Connection

    4. Peripherals connection 4-2 Interface Cable Connection This printer can communicate with Peripherals device via Bluetooth and cables. 4-1 Bluetooth Connection 1. Connect USB into the cable connector on the printer. 1. Printer can be connected to the PDA and PC which can do wireless communication.

  • Page 10: Specification

    5. Pritner Specification 5-1 Specification Battery Charger input AC100~240V, 50/60Hz Printing Method Direct Thermal output 8.4V , 800~1400mA Printing Speed 60mm/sec Charging time 2.5Hrs Resolution 203 DPI X 203 DPI Battery Battery type Li-ion Character Font A (12X24), Font B (9X17) output 7.4V, 1130mAh Character per line...
