J. STEPHEN Lab., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea
TEL : +82-31-8077-5000 FAX : +82-31-459-8880
http://www.miniprinter.com
USER'S MANUAL / Peeler

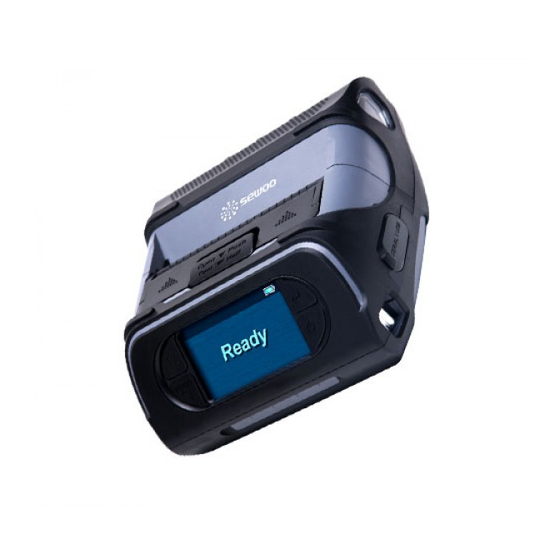

MODEL : LK-P43
All specifications are subject to change without notice
P43(Peeler) Rev. H 01/18
