V I . B A T T E R I E S A N D C H A R G I N G
To charge the batteries using the off-board charger:
1. Position the front of your travel chair next to a standard
electrical outlet.
2. Be certain the controller power is turned off.
3. Plug the off-board charger into the battery box charger port.
See figure 18.
NOTE: The off-board charger connector can be inserted
through a slot found on the back of the basket and located
directly in front of the battery box.
4. Plug the off-board charger into the electrical outlet.
WARNING! The LED lights onthe charger indicate
different charger conditions at various times:
charger power on, charging in progress and
charging complete. If the LED does not indicate
that charging is completed within 24 hours,
unplug the charger from the outlet and contact
your authorised Pride Provider. Refer to the
manual supplied with the battery charger for a
complete explanation of these indicators.
5. When the batteries are fully charged, disconnect the off-board
charger from the electrical outlet and then from the battery
box.
NOTE: The Go-Chair batteries can be charged when the battery
box is removed from the power base.
To charge the batteries with the battery box removed from the
power base:
1. Remove the battery box from the power base. See IV. "Assem-
bly/Disassembly."
2. Position the battery box next to a standard electrical outlet. See
figure 19.
3. Plug the off-board charger into the battery box charger port.
4. Plug the off-board charger into the electrical outlet.
5. When the batteries are fully charged, unplug the off-board char-
ger from the electrical outlet and then from the battery box.
6. Reinstall the battery box to the power base.
To charge the batteries using the XLR off-board charger port:
1. Position the front of your Go-Chair next to a standard electri-
cal outlet.
2. Be certain the controller power is turned off and the freewheel
levers are in the engaged position. See III. "Your Go-Chair."
3. Plug the off-board charger into the XLR off-board charger port
located on the controller. See figure 20.
4. Plug the off-board charger into the electrical outlet.
5. When the batteries are fully charged, unplug the off-board
charger from the electrical outlet and then from the controller.
18 www.pridemobility.com

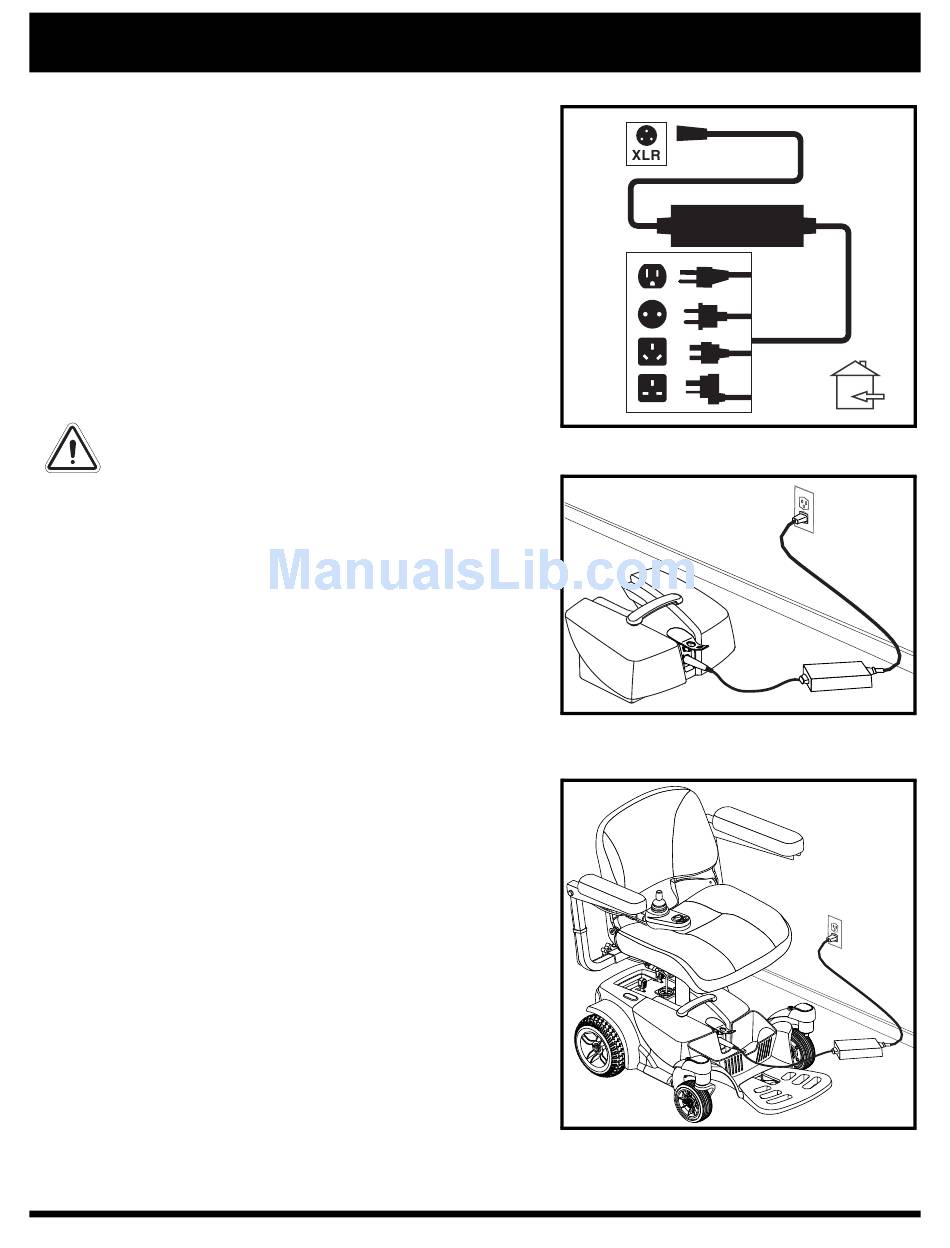

Figure 18. Battery Charging
