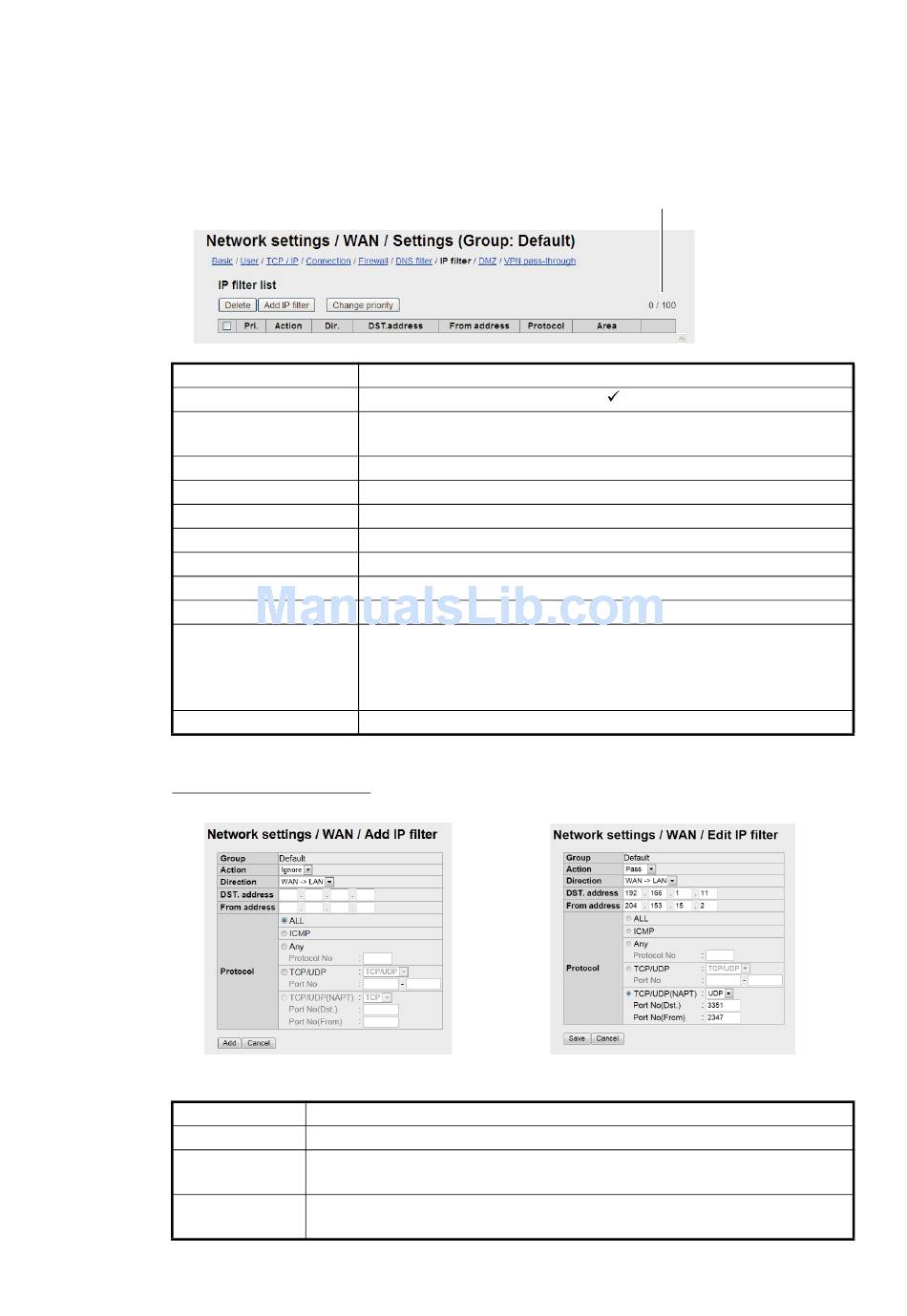

Group setting screen (IP filter)
Click [IP filter] on the Group setting screen to show the IP filter setting screen. This
screen lets you prevent unwanted communications. Set the screen according to appli-
cation and system.
Item
Delete button
Add IP filter button
Change priority button Change priority of IP filters. The priority edit screen appears.
Pri.
Action
Dir
DST. address
From address
Protocol
Area
Edit button
Entry screen/Edit screen
Entry screen
Item
Group Display group name
Action Select action (Ignore, Reject, Pass). Select [Pass] to set [TCP/
UDP(NAPT)] at [Protocol].
Direction Show direction (WAN→LAN, LAN→WAN). Select [WAN→LAN] to set
[TCP/UDP(NAPT)] at [Protocol].
No. of registrations/No. of registrations available
Delete items with checkmarks [ ].
Register new IP filter. (Max. 100.) The IP filter entry screen ap-
pears.
Show priority. (The smaller the number the higher the priority.)
Show actions.
Select direction.
Show the recipient address (if not set, "anywhere" is shown).
Show the sender address (if not set, "anywhere" is shown).
Display the protocol.
• If [Protocol] is [Any], displays the protocol number.
• If [Protocol] is [TCP/UDP]: displays the port range.
• If [Protocol] is [TCP], [UDP]: displays the port range or port
numbers for [Dst.] and [From].
Edit the IP filter. The edit screen appears.
