Decode Zones and Lighting Zones
Decode Zones and Lighting Zones

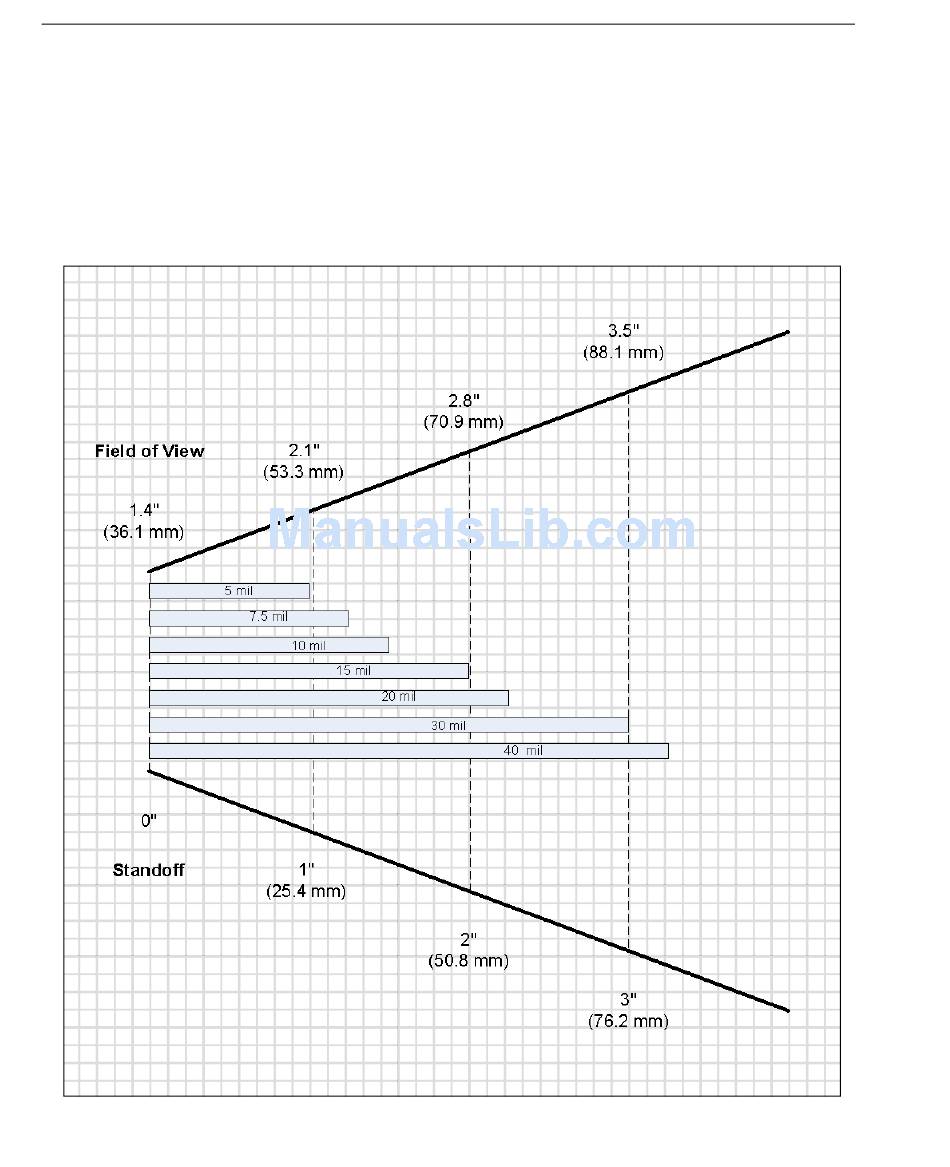

The following chart provides a guideline for overall read performance based on mark size.
Actual range for direct part marks will vary based on mark parameters and the illumination
zone required for readings. The chart below is intended as a guideline.
Decode Zones
3-4
Mobile Hawk Handheld DPM Imager User's Manual
