Image Quality
The video view in EZ Mode (and also on the Video tab in I/O Parameters) allows you to
capture images from the Mobile Hawk for further analysis. If Upload Images is checked and
you click the Start button, image captures will be uploaded automatically for every good
read. Images will also be uploaded for every no read, upon release of the imager's trigger.

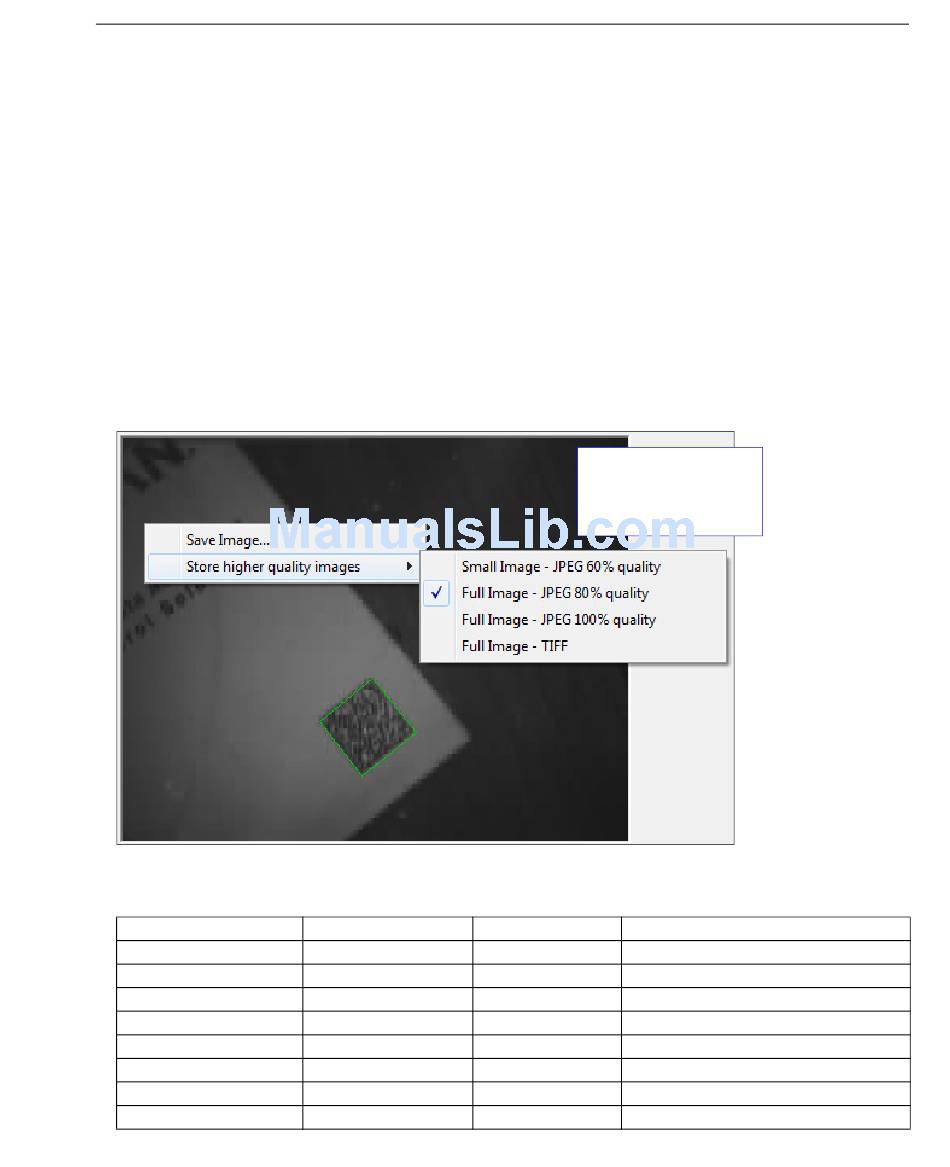

You can right-click on a captured image to bring up the menu shown below. If you select
Store higher quality images, you will see a dropdown menu with JPEG 60% quality (small
size), JPEG 80% quality (full size), JPEG 100% quality (full size) and TIFF (full size).
The imager's illumination setup can be restored by clicking the Default box in the EZ
Mode view. Refer to the
Hawk's illumination capabilities.
Note: If you have difficulty viewing TIFF images with Windows Picture and Fax Viewer, it
is recommended that you use Paint or viewer software that is optimized for TIFF files.
Note: TIFF images are large files and take significantly longer to download than JPEG images.
Note: Image size will vary depending on user settings for
whether or not Low Resolution Image
Image Save Mode
Small Size (Displayed)
Small Size
Small Size
Small Size
Full Size
Full Size
Full Size
Full Size
Mobile Hawk Handheld DPM Imager User's Manual
Basic Operations
is checked in the Illumination dialog in ESP.
Region of Interest Low Resolution
1280 x 1024 No
1280 x 1024 Yes
800 x 600 No
800 x 600 Yes
1280 x 1024 No
1280 x 1024 Yes
800 x 600 No
800 x 600 Yes
section for more information about the Mobile
Right-click on the
image capture to
bring up this menu.
Region of
Final Image Size
320 x 256
320 x 256
400 x 296
400 x 296
1280 x 1024
640 x 512
800 x 600
400 x 296 (JPEG); 400 x 300 (TIFF)
Using ESP
Interest, and
2-3
