General Specifications
Appendix A — General Specifications
Mechanical
Height: 7" (180 mm)
Width: 2.5" (63 mm)
Depth: 4.5" (114 mm)
Weight: 7.2 oz. (204 g) (not including cable)
Environmental
Operating temperature: 0° to 50°C
(32° to 122°F)
Storage temperature: –20° to 65° C
(–4° to 150°F)
Humidity: 5 to 95% (non-condensing)
Shock: Withstands >50 drops of 6' (1.8 meters) to concrete
MAXlite Illumination
Combination Dome and Low Angle illumination system.
Dome: 2-color, 640nm (red) and 470nm (blue)
Low Angle: Quadrant 30°, 640nm (red)
Symbologies
Aztec, BC412, Codabar, Code 39, Code 93, Code 128,
Data Matrix (ECC 0-200), GS1 DataBar, Interleaved 2 of
5, MicroPDF417, Micro QR Code, PDF417, Pharmacode
QR Code, UPC/EAN
Image Collection Options
Sensor: CMOS
Sensor Array: 1280 x 1024
Communication Protocols
Standard Interface: USB, RS-232
Read Parameters
Rotational Tolerance: ±180°
Focal Range: 0 to 2" (0 to 50.8 mm)
Focal Point: Optimal at 0.25" (6.3 mm)
Field of View: Horiz. 1.59" (40.39 mm) x Vert. 1.27" (32.31
mm) at optimum focus
Print Contrast Resolution: 20% minimum contrast
Ambient Light Immunity: Sunlight: Up to 9,000 ft. candles,
96,890 lux
Indicators
Status Indicators: Vibration motor, audible tones, visual
feedback with multi-color LED, blue-line targeting pattern
Image Output Options
Format: JPEG, TIFF
Electrical
Power Requirements: 5 VDC (mA)
Typical: 408mA Peak: 500mA Idle: 285mA
A-2
Note: Nominal
dimensions
shown. Typical
tolerances
apply.

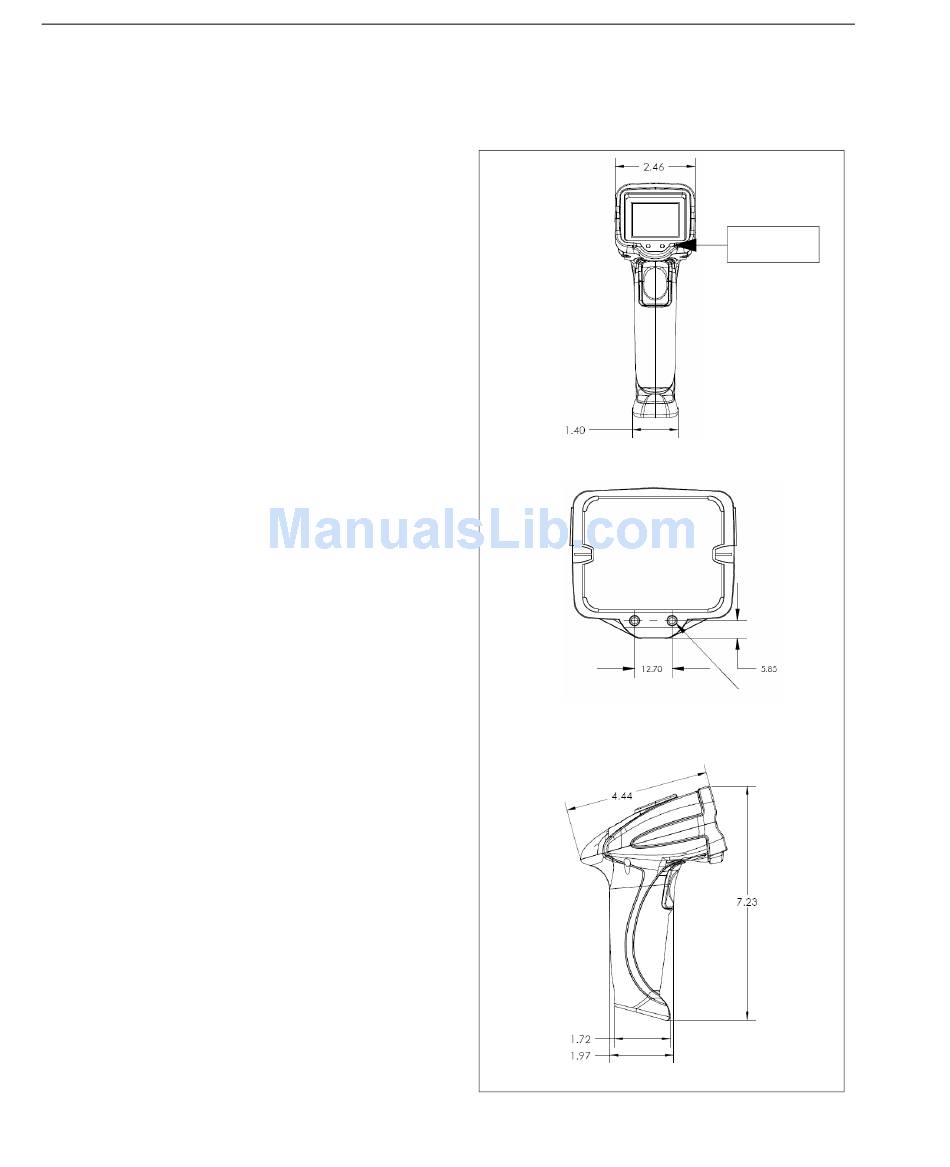

Front View

Use #2-56 hardware; do not exceed .115" depth.
Note: For training accessories only; not for mounting purposes.
Detail A
Side View
Mobile Hawk Dimensions
Mobile Hawk Handheld DPM Imager User's Manual
Detail A
