Select Protocol and Connect to Imager

USB (Standard)

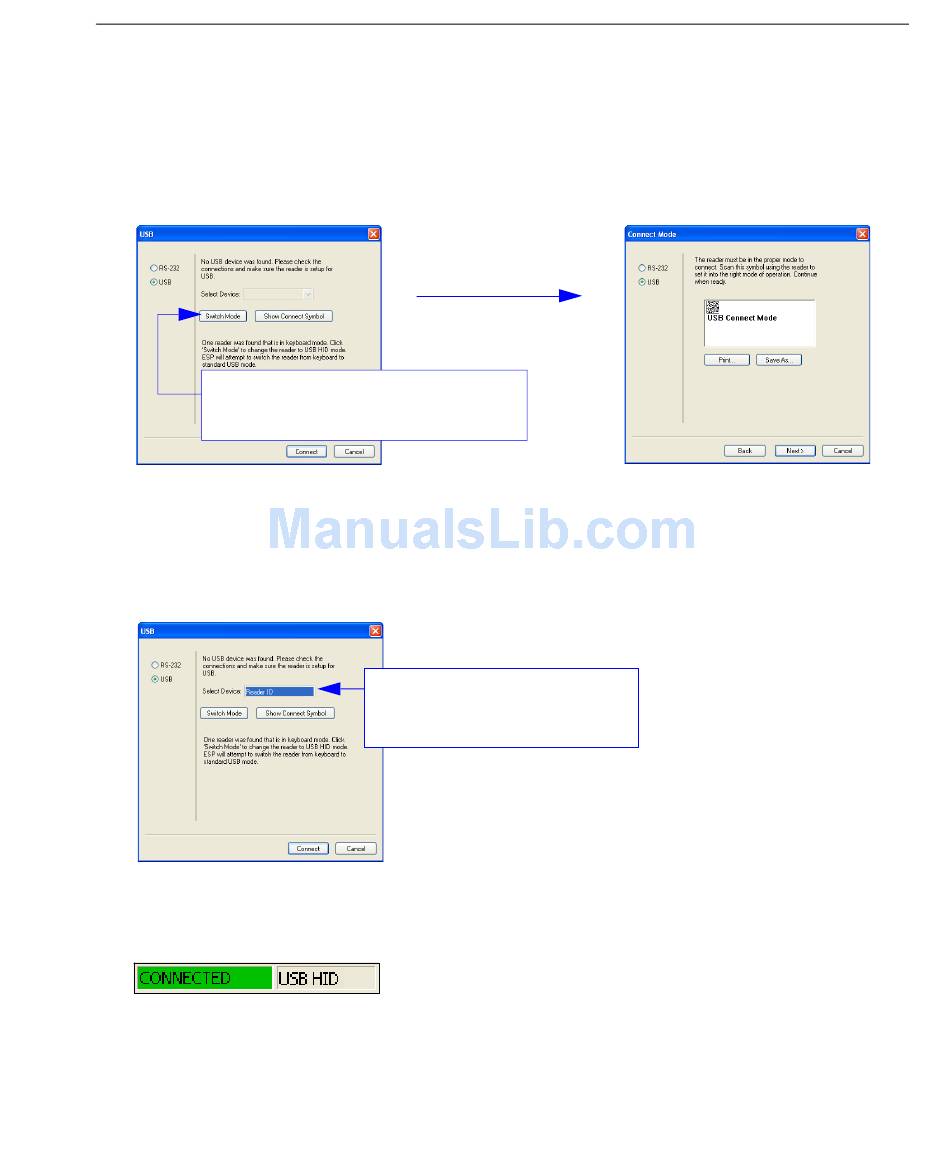

• In the Select Protocol dialog box, select the communications protocol you are using
and click Next.
From the default USB settings, click the
Switch Mode button to connect to the
reader in USB HID Mode.
• Print the USB Connect Mode symbol (also shown in the Install ESP step) and decode
it with the imager to ensure that you are in the correct communications mode. Keep the
printed symbol in a convenient place for future use.
• Click Next when you are finished.
The Select Device dialog will then reappear:
• You will see a "Reader ID" number in the Select Device field. Click Connect.
• When you are connected successfully, the
green box in the status bar at the bottom right of the screen.
You are now ready to configure your imager using ESP. Subsequent sections provide
more detailed information about ESP's configuration options.
