Targeting and Decoding

Targeting and Decoding

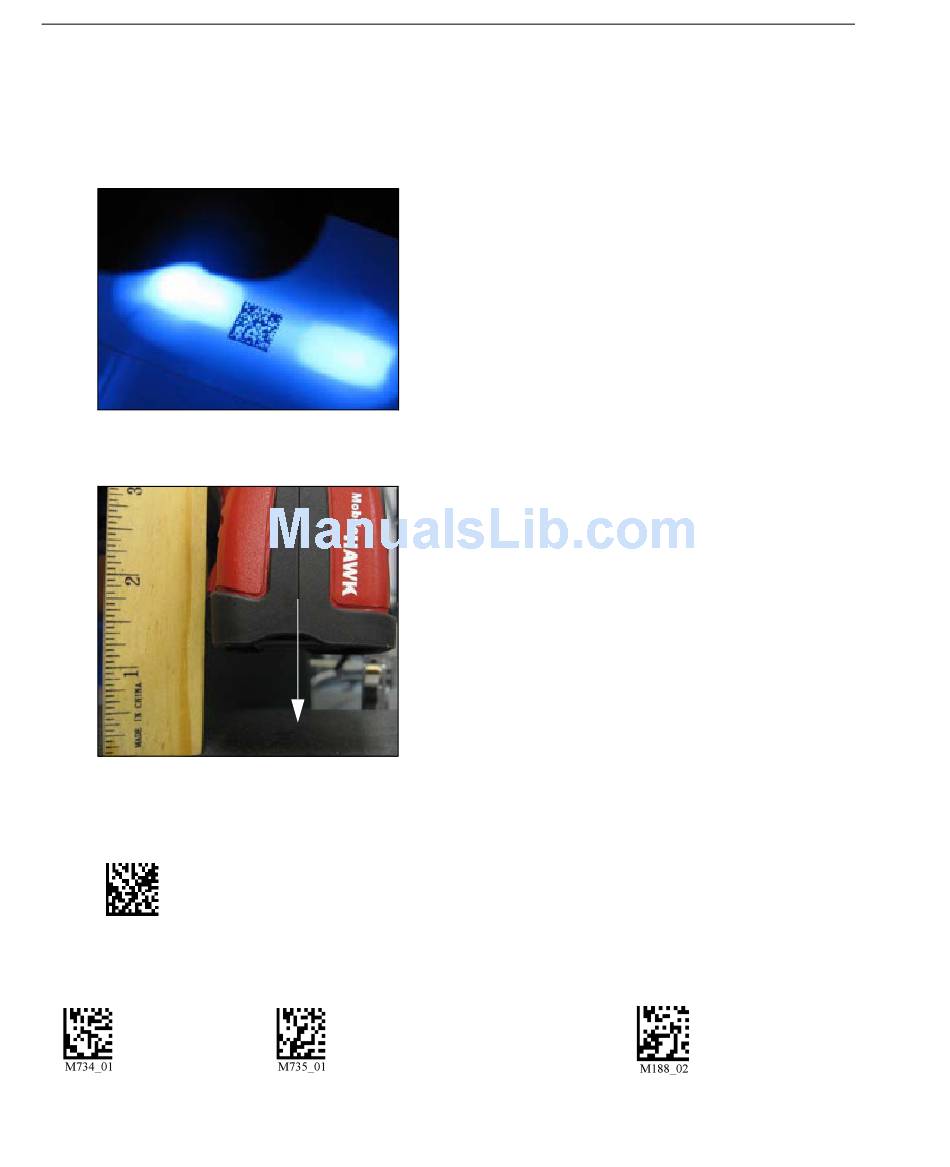

The Mobile Hawk features simple blue targeting LEDs to indicate optimal read range.
1. Hold the imager about 6" from the mark and align the blue targeting pattern as shown below.
2. Move the front of the imager steadily downward toward the mark and parallel to the
mark surface.
3. The imager will decode the mark at the optimal read distance – typically from the point
of contact to .50" (contact – 12.70 mm).
Test Symbol
ABCDEFGHIJKLMNOP
Targeting LEDs
Read the configuration symbols below to enable or disable targeting LEDs.
Targeting
LED On
3-2
Targeting
LED Off
Save
Settings
