Select Protocol and Connect to Imager
RS-232 Option

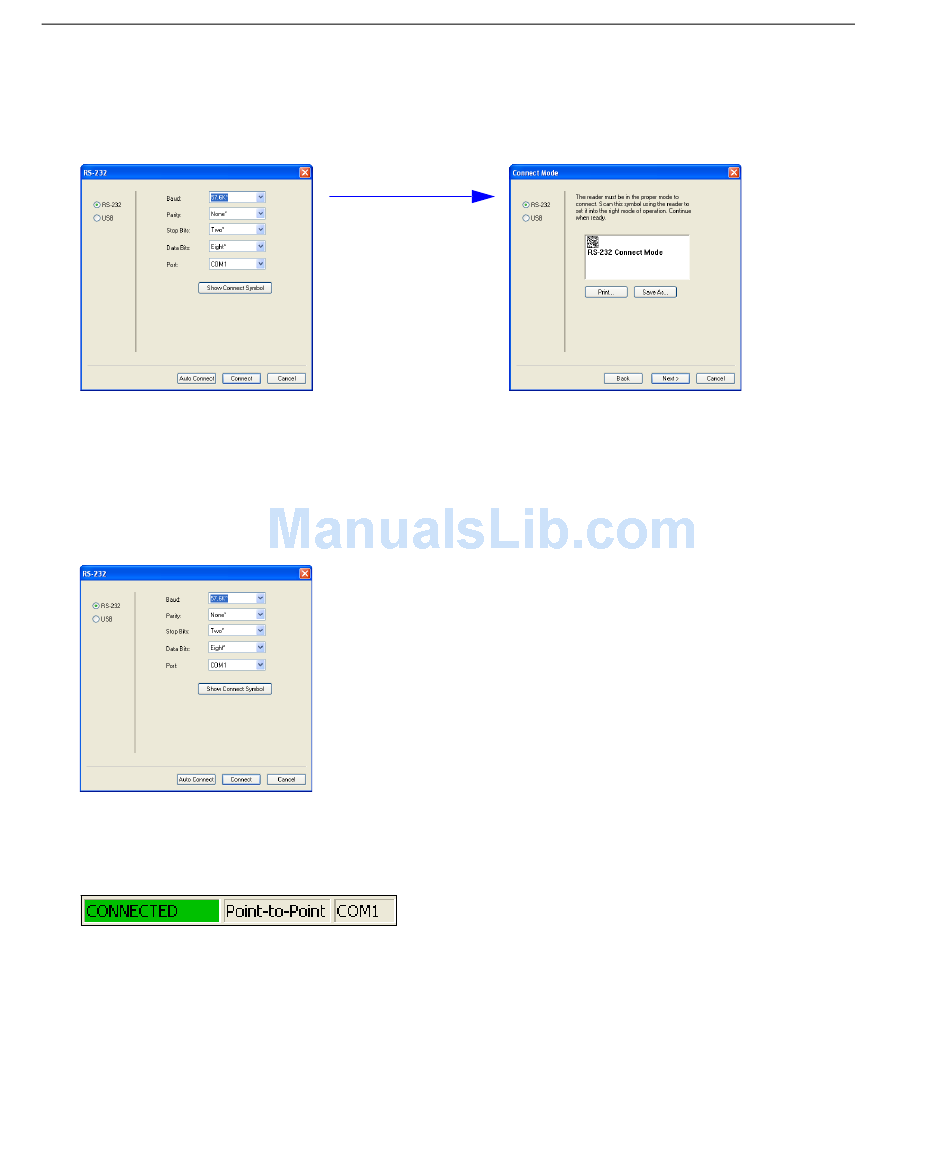

• In the Select Protocol dialog box, select the communications protocol you are using
and click Next.
• Print the RS-232 Connect Mode symbol (also shown in the Install ESP step) and
decode it with the imager to ensure that you are in the correct communications mode.
Keep the printed symbol in a convenient place for future use.
• Click Next when you are finished.
• The Com Port dialog will then reappear. Select which communications port you are
using. If you don't see your communications port listed on the dropdown menu, select Other.
• Click Connect.
• When you are connected successfully, the
green box in the status bar at the bottom right of the screen.
If the connection attempt fails, enable a different communications port, check your port
connections, and try again.
You are now ready to configure your imager using ESP. Subsequent sections provide
more detailed information about ESP's configuration options.
1-8
CONNECTED message will appear in a
