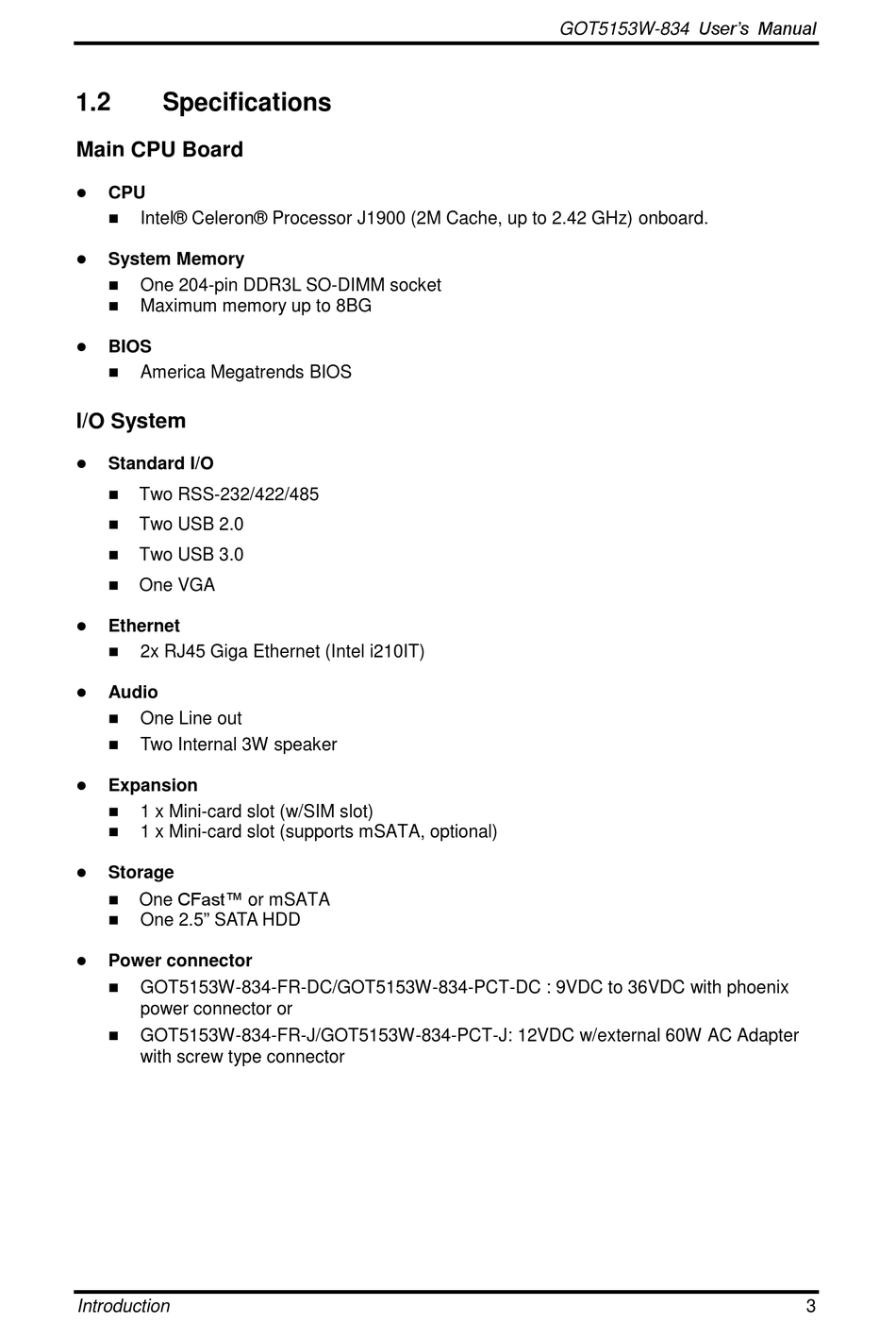

1.2

Specifications

Main CPU Board
 CPU
 Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) onboard.
 System Memory
 One 204-pin DDR3L SO-DIMM socket
 Maximum memory up to 8BG
 BIOS
 America Megatrends BIOS
I/O System

Standard I/O
 Two RSS-232/422/485
 Two USB 2.0
 Two USB 3.0
 One VGA
 Ethernet
 2x RJ45 Giga Ethernet (Intel i210IT)

Audio
 One Line out
 Two Internal 3W speaker

Expansion
 1 x Mini-card slot (w/SIM slot)
 1 x Mini-card slot (supports mSATA, optional)

Storage
One CFast™ or mSATA

 One 2.5" SATA HDD
 Power connector
 GOT5153W-834-FR-DC/GOT5153W-834-PCT-DC : 9VDC to 36VDC with phoenix
power connector or
 GOT5153W-834-FR-J/GOT5153W-834-PCT-J: 12VDC w/external 60W AC Adapter
with screw type connector
