Barcode Symbologies - Lexmark FORMS 249X Technical Reference

Data is the actual data to be transferred into the barcode symbology.
The data for the barcode data transfer command is a string of ASCII characters
immediately following the n1, n2 count bytes. The string "APPLE" is transferred
in the example below:
<x
1B5B70
0500
>APPLE
To determine the data length requirement for each barcode type, continue with

Barcode Symbologies.

Barcode Symbologies
The seven barcode symbologies (EAN-13, EAN-8, Code 39, Interleaved 2of5,
UPC-A, POSTNET and Code 128) are defined, with examples, in the following
section.

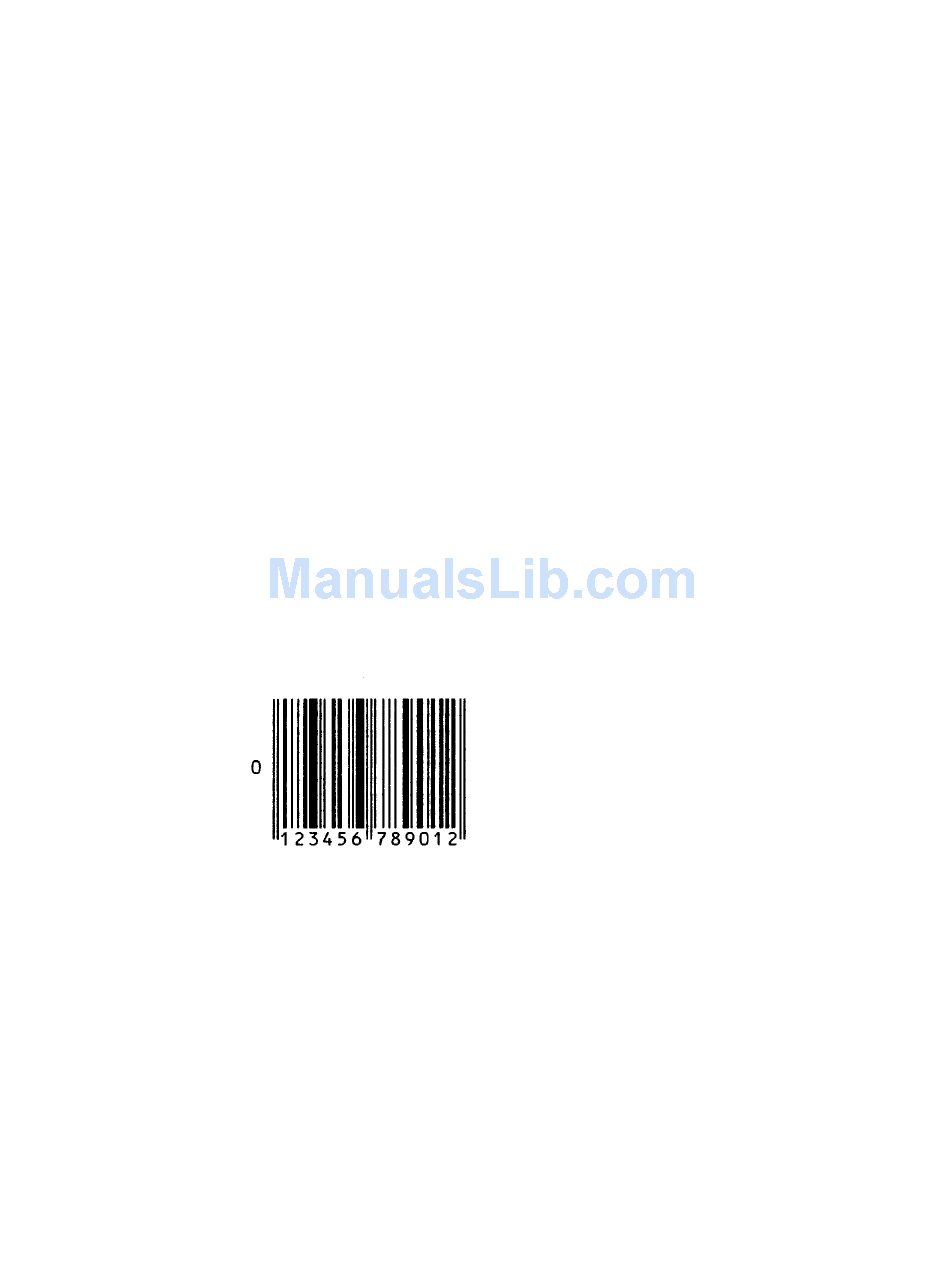

EAN-13
- barcode data transfer command prefix
- byte count (low byte first) - x0005, 5
- 5 bytes following the '>' is the data to be
transferred
Section 8: Barcodes
153
