- Page 1 CLUX-14CEC 1x4 HDMI 1.3 Splitter with CEC Function Operation Manual CLUX-14CEC...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Operation Controls and Functions………………...……..……… Front Panel ................Rear Panel …………………………………………..….….… Connection and Installation …….…………………..…..…..…... Acronyms …….…………………..…..…..…......... -
Page 5: Introduction
1. Introduction This HDMI v1.3 Splitter is an impressive device that can handle all of your HDMI signal distribution needs. From a single HDMI input it can transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio with high bandwidth up to 225MHz (6.75Gbps) to four HDMI outputs. -
Page 6: Features
5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant Receiver Deep color video up to 12bit, 1080p@(24/60)Hz Simultaneously displays one HDMI source on four displays HDCP keysets that allow each output to work independently when connected to an HDMI display Splits a single HDMI source into four outputs(max.) without signal loss ... -
Page 7: Specifications
6. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Port 1x HDMI female port (Type A connector) Output Ports 4x HDMI female ports (signal link) HDMI Cable In 1080p 8-bit (20M), 12-bit (15M) HDMI Cable Out 1080p 8-bit (10M), 12-bit (10M) ESD Protection Human body model: ±... -
Page 8: Operation Controls And Functions

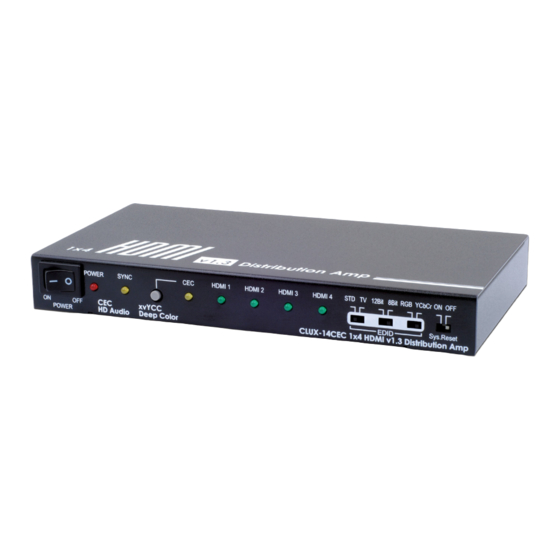

HDMI 2 HDMI 3 HDMI 4 STD TV 12Bit 8Bit RGB YCbCr ON OFF xvYCC Sys.Reset EDID HD Audio Deep Color CLUX-14CEC 1x4 HDMI v1.3 Distribution Amp POWER ① ② ③ ④ ⑤ ⑥ ⑦ Power Switch: This switch turns the system on and off. -
Page 9: Rear Panel
EDID and record/save it in the unit. If the display attached to the first output source is DVI it will skip to next output until the first HDMI is detected. Sys. Reset switch: It is suggested to always turn this setting OFF, unless ⑦... -
Page 10: Connection And Installation
8. Connection and Installation LCD TV LCD TV LCD TV LCD TV... -
Page 11: Acronyms
Acronyms Acronym Complete Term Consumer Electronics Control Digital Theater Systems Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Personal Computer Printed Circuit Board SYNC Synchronize TMDS Transition Minimized Differential Signaling Transistor-Transistor Logic UXGA Ultra Extended Graphics Array Video Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20091029 MPM-CLUX14CEC...
