Summary of Contents for Cypress CLUX-14CEC

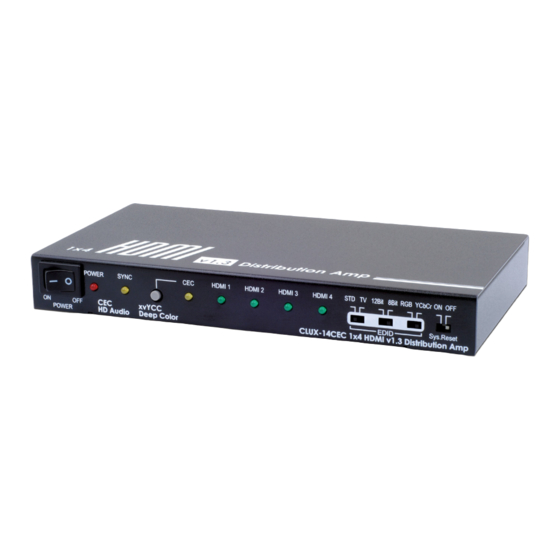

- Page 1 1 by 4 HDMI v1.3 Splitter Operation Manual...
- Page 2 Introduction This HDMI v1.3 Splitter is an impressive device that can handle all of your HDMI signal distribution needs. From a single HDMI input it can transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio with high bandwidth up to 225MHz (6.75Gbps) to four HDMI outputs.
- Page 3 Supports xvYCC and CEC bypass and also system reset functions Has CEC function's one touch play & Record, programmable timer, menu language, deck & device menu control, OSD display, device OSD transfer, remote control pass through, system audio control and system standby ...
- Page 4 When the EDID is switched to TV, the unit will detect the first HDMI output EDID and record/save it in the unit. If the display attached to the first output source is DVI it will skip to next output until the first HDMI is detected. ⑦...
- Page 5 Specifications Frequency Bandwidth 2.25Gbps (single link) Input Port 1x HDMI female port (Type A connector) Output Ports 4x HDMI female ports (signal link) HDMI Cable In 1080p 8-bit (20M), 12-bit (15M) HDMI Cable Out 1080p 8-bit (10M), 12-bit (10M) ESD Protection Human body model: ±...
