Summary of Contents for Cypress CLUX-14W

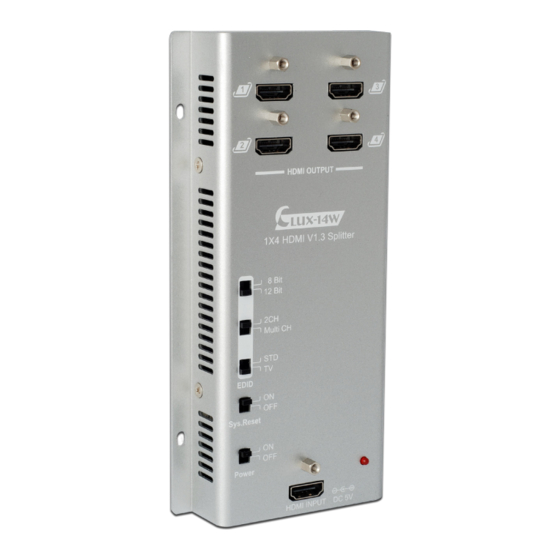

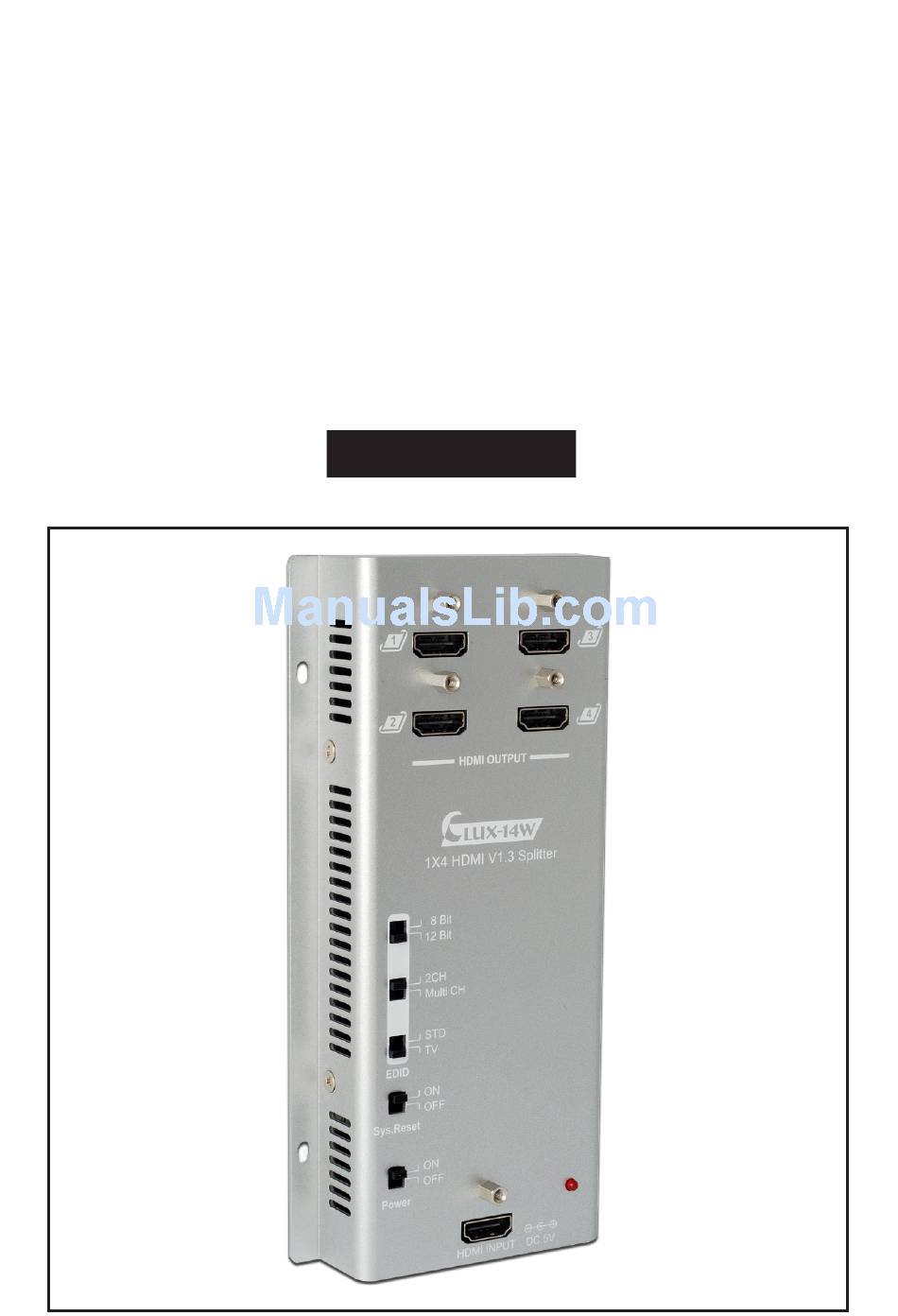

- Page 1 CLUX-14W 1 by 4 HDMI 1.3 Splitter Operation Manual CLUX-14W...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction … ………………………………………........ Applications......…………………………………………… Package Contents..…………………………………………..……. System Requirements..…….……….…………………..……….. Features ......……………………………………………….. Specifications..................Operation Controls and Functions ....………………………….. 7.1 Front Panel ......….………………………………….. 7.2 Bottom Panel......…………………..………….. Connection and Installation.............. -
Page 5: Introduction
1. Introduction The HDMI v1.3 Splitter is the most advance solution for HDMI signal distribution. This device defines and supports deep color (10 & 12-bit) video with new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, a high bandwidth up to 225MHz (6,75Gbps). Besides splitting and distributing, the device also does signal amplification and equalization to provide high performance I/O of audio and video. -
Page 6: Features
5. Features HDMI v1.3, HDCP1.1 and DVI1.0 compliant Receiver. Deep Color video up to 12bit, 1080p(24/60Hz). One HDMI source connect up to four HDMI displays simultaneously. HDCP keysets allows each output to work independently when connecting to a HDMI display. Splits a HDMI source up to four outputs without signal loss. -
Page 7: Specifications
6. Specifications Frequency bandwidth 2.25Gbps (single link) Input port 1 x HDMI Female port Output ports 4 x HDMI Female ports (single link) ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) PCB stack - up 4-layer board impedance control - differential 100 ohm - sigle 50 ohm Input TMDS signal... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions ① HDMI OUTPUT 1~4: 7.1 Front Panel Connect your LCD TV or HD monitor with HDMI cables. ② EDID selection: STD/TV – By switching to STD users can select both deep color and audio ① channels function, if switching to TV the unit will read TV ’... -
Page 9: Bottom Panel
7.2 Bottom Panel the unit and connect the adaptor to AC wall outlet. Red LED will illuminate when the Power is On. ① 8. Connection and Installation LCD TV LCD TV LCD TV LCD TV DVD / Blue Ray... - Page 10 Acronyms Acronym Complete Term Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwith Digital Content Protection HDMI High-Definition Multimedia Interface Multi CH Multiple Channel Standard...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090814 MPM-CLUX14W...
