- Page 1 CLUX-1H4CAT 1 by 4 HDMI to CAT 6 V1.3 Splitter Operation Manual CLUX-1H4CAT...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Pin Definitions ……………...……..........…… IR Cable Pin Definition ............RJ-45 Pin Definitions ..............Connection and Installation ….…………………..…..…..….. -
Page 5: Introduction
1. Introduction The 1 by 4 HDMI to CAT6 1.3 splitter when used with CAT6 to HDMI receivers it will allows user to distribute a HDMI over 45 meters through CAT6 cables over 45 mters This solution provides a direct input of one HDMI to a looped output of HDMI and 3 CAT6 outputs –... -
Page 6: Features
5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant Deep color video up to 12bit, 1080p@60Hz Allows users to link up to four displays HDCP keysets allows each output to work independently when connected to a HDMI display Supports both DVI source/display by using HDMI to/from DVI adaptor ... -
Page 7: Specifications
6. Specifications Video Bandwidth 2.25MHz/6.75Gbps Input Ports 1 x HDMI female port (Type A connector) Output Ports 3 x CAT6 output Video/3 x CAT6 output DDC 1 x HDMI female port (Type A connector) EDID STD / TV HDMI Audio Output PCM2, 5.1, 7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD HDMI Cable In... -
Page 8: Operation Controls And Functions

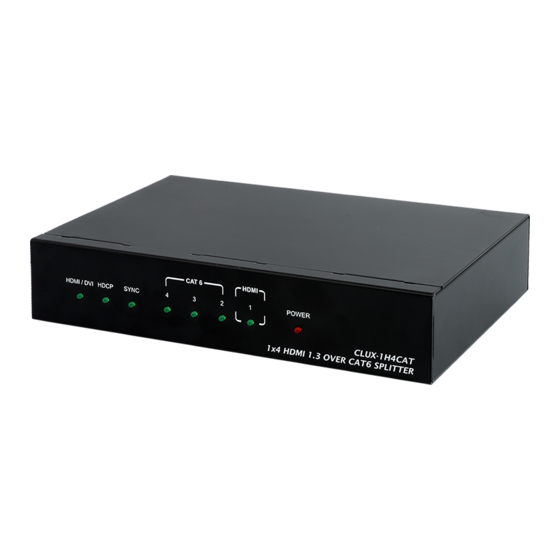

7.1 Front Panel CAT 6 HDMI HDMI / DVI HDCP SYNC POWER CLUX-1H4CAT 1x4 HDMI 1.3 OVER CAT6 SPLITTER ① ② ③ ④ ⑤ ① HDMI/DVI indicators: When the LED turns on this means the input source is HDMI and when the input source is DVI the LED will not turn on. - Page 9 ③ EDID Control Switcher: Switch the EDID between STD & TV. Switch to STD to use the built-in EDID or switch to TV to use TV ’ s EDID. Default factory setting is on TV, leave as is when the display is working properly. Note: 1.
-
Page 10: Pin Definitions
8. Pin Definitions 8.1 IR Cable Pin Definition IR Blaster IR Receiver ① Power 5V ① IR signal ② IR blaster signal ② Power 5V ③ NC ③ Grounding ① ② ③ ① ② ③ Note: The frequency on both IR Receiver & Blaster can support 30~50KHz. 8.2 RJ-45 Pin Definitions Video TX2+... - Page 12 60°...
-
Page 13: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 cable Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared LPCM Linear Pulse Code Modulation Standard SYNC Synchronize SXGA Super Extended Graphics Array Video Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100401 MPM-CLUX1H4CAT...
