- Page 1 1x2 HDMI 1.3 Splitter Operation Manual CLUX-12S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................6. HDMI v1.3 Series............... -
Page 3: Introduction
1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (10-bit and 12-bit ) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). -
Page 4: Operation Controls And Functions

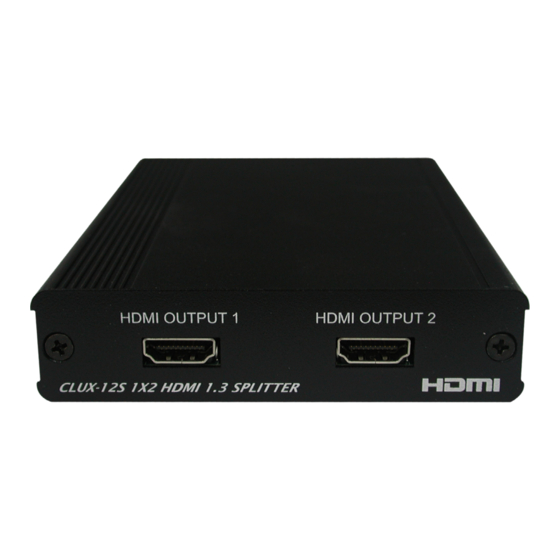

3. Operation Controls and Functions 3.1 Front Panel HDMI OUTPUT 1 HDMI OUTPUT 2 1X2 HDMI 1.3 SPLITTER HDMI output 1 to 2: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. -
Page 5: Connection And Installation
4. Connection and Installation HDMI Cable HDMI Cable DVD or Set-Top-Box HDTV HDMI display LCD TV 5. Specifications Frequency bandwidth 2.25Gbps (single link) Input port 1x HDMI female port (Type A connector) Output port 2x HDMI female ports Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 100(W) x 147(D) x 25(H) -
Page 6: Hdmi V1.3 Series
6. HDMI v1.3 Series: Product Description CLUX-11S 1x1 HDMI V1.3 Repeater CLUX-12S 1x2 HDMI V1.3 Splitter CLUX-14S 1x4 HDMI V1.3 Splitter CLUX-18S 1x8 HDMI V1.3 Splitter CLUX-21SY 2x1 HDMI V1.3 Switcher CLUX-31S 3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher...
