Summary of Contents for Cypress CLUX-4M

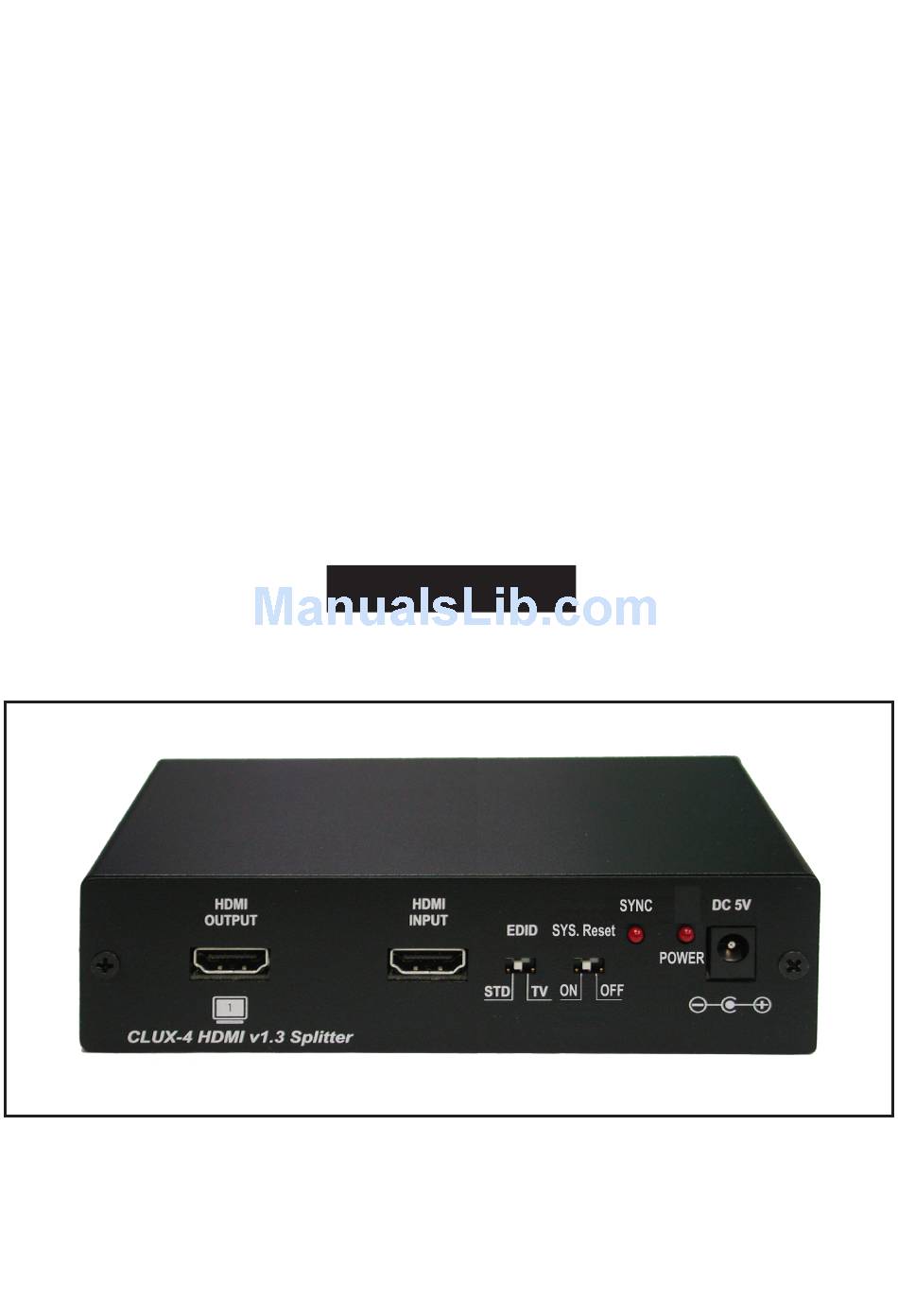

- Page 1 CLUX-4M 1x4 HDMI Multi-channel Splitter Operation Manual CLUX-4M...
- Page 3 Revision History Version No Date Summary of Change 20081110 Preliminary Release 20090430 EDID Rephrase 20121226 Removed HDMI Version Number Precautions Failure to follow the precautions described below may cause damage to multi channel splitter and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications…………………………..……………………....…. Package Contents……………..…………………......… System Requirements………………..………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Front Panel ................Rear Panel …………………………………………..….….… Connection and Installation……………………………..……..… Specifications……………………………………………...……….. -
Page 5: Introduction
1. Introduction The 1 by 4 HDMI Multi-channel Splitter is the most advanced solution to HDMI signal distribution. It supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the splitter also does signal amplification and equalization, so as to provide high performance I/O of audio and video. -
Page 6: Features
5. Features HDMI, HDCP1.1 and DVI1.0 compliant. Deep color support up to 12-bit, 1080p@24/60 Hz. One HDMI source to be connected to up to Four HDMI displays simultaneously. HDCP keysets allow each output to work independently when ... -

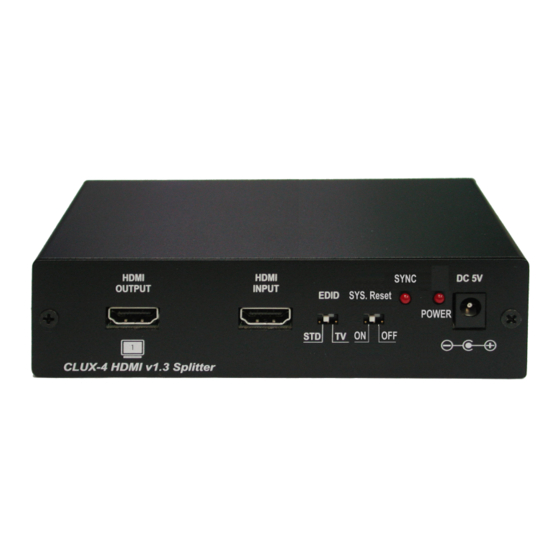

Page 7: Operation Controls And Functions
EDID SYS. Reset POWER TV ON CLUX-4M HDMI V1.3 Splitter ① HDMI OUTPUT 1: Connect each of the output ports to an HDMI display. When more than one output source is connected, an identical video signal will be shown on the connected displays. -
Page 8: Rear Panel
6.2 Rear Panel HDMI HDMI HDMI OUTPUT OUTPUT OUTPUT ① HDMI OUTPUT 2/3/4: Connect each of the output ports to an HDMI display. When more than one output source is connected, an identical video signal will be shown on the connected displays. 7. -
Page 9: Specifications
8. Specifications Input Port 1 x HDMI Output Ports 4 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions 206 mm (W) x 111 mm (D) x 32 mm (H) Weight 248 g Chassis Material Plastic Silkscreen Color Black Operating Temperature 0 °... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081120 MPM-CLUX4M...
