Summary of Contents for Cypress CPRO-8MCEC

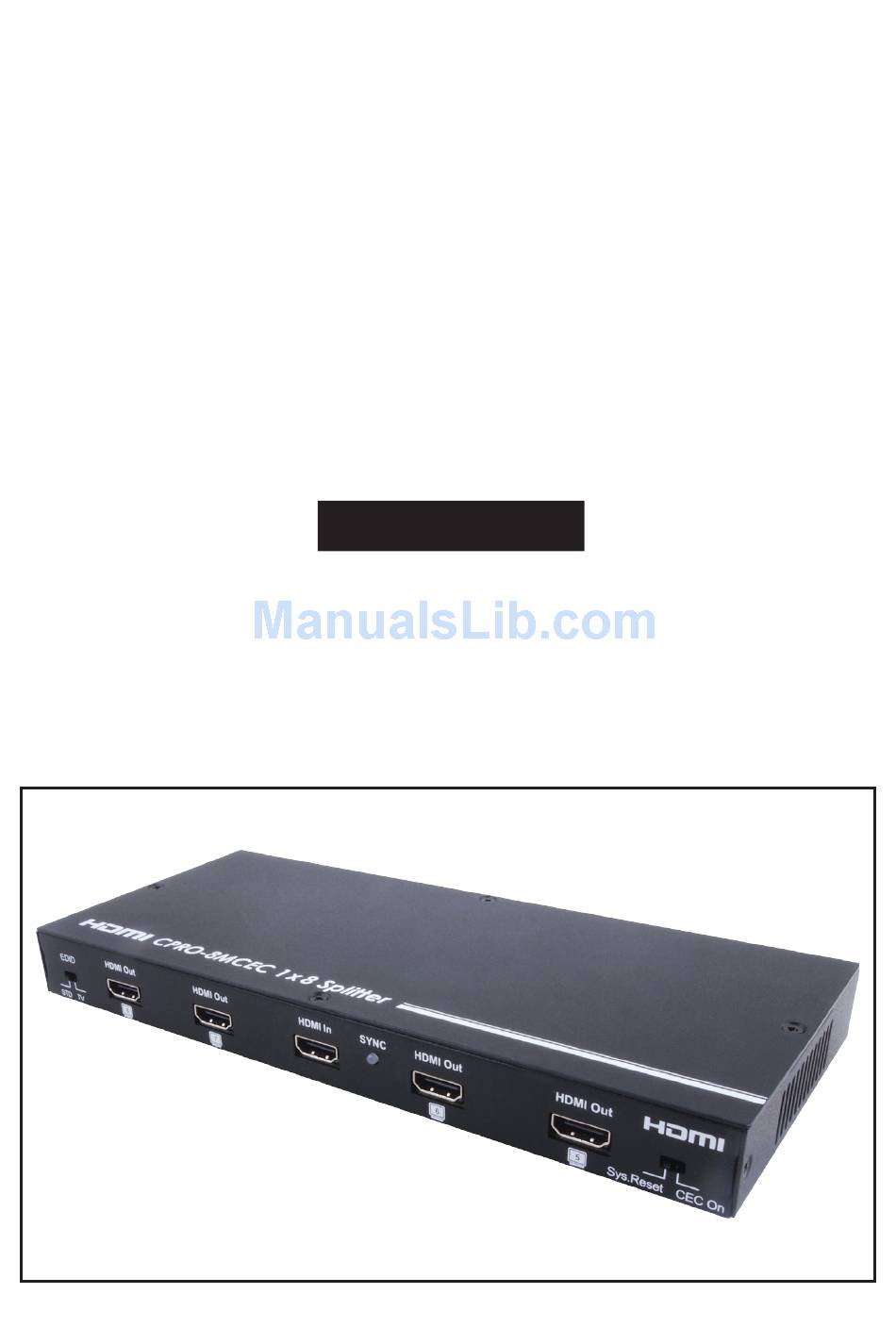

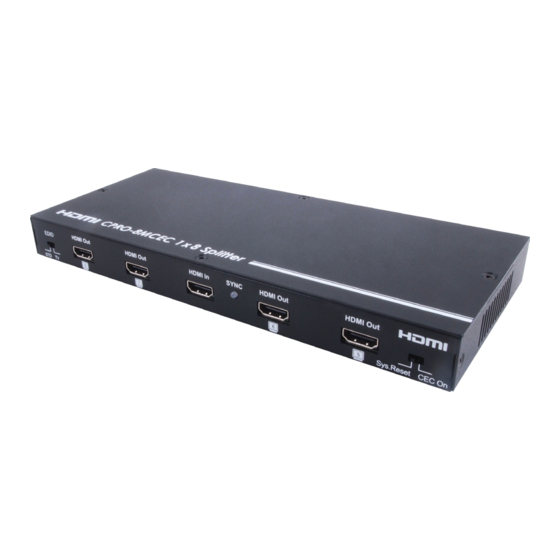

- Page 1 CPRO-8MCEC HDMI 1 by 8 Splitter with CEC Function Operation Manual CPRO-8MCEC...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction This is a high performance one input & eight outputs HDMI™ Splitter supports 3D and individual CEC control functions. One out of the eight outputs port supports Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC) follow by HDMI v1.4 Specification. The ARC provides an S/PDIF link from an HDMI™... -
Page 6: Features
5. Features Support multiplexed HDMI 1-input and 8-output Output port 4 supports Ethernet Channel (HEC) and Audio Return Channel (ARC) follow by HDMI v1.4 specification. HDMI 1.4 support: Audio Return Channel (ARC) 3D CEC ... -
Page 7: Specifications
6. Specifications Frequency bandwidth 2.25Gbps (single link) Input Port 1 x HDMI (Female type) Output port 8 x HDMI (Female type) 1 x Ethernet (Port 4) 1 x ARC (Port 4) Output Resolution 480i ~1080p 50/60, 1080p24, VGA~UXGA HDMI Cable In 1080p/8bits or 12bits (15M) HDMI Cable Out 1080p/8bits or 12bits (15M) -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel HDMI Out HDMI Out HDMI In SYNC HDMI Out HDMI Out EDID Sys.Reset CEC On STD TV ① ② ② ③ ④ ②... -
Page 9: Rear Panel
7.2 Rear Panel HDMI Out HDMI Out HDMI Out HDMI Out Power DC 5V RS-232 Ethernet ① ② ③ ③ ③ ④ ⑤ ① RS-232: This slot is to connect with 3.5Ø phone jack to D-Sub 9pin cable inclucded in the package for RS-232 control signal and is for service only. ②... -
Page 10: Connection And Installation
8. Connection and Installation Blu-ray LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV HDMI 1.4 LCD TV LCD TV INTERNET... -
Page 11: Acronyms
Acronyms Acronym Complete Term Audio Return Channel Audio Video Receiver Consumer Electronics Control EDID Extedned Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20101209 MPM-CPRO8MCEC...
