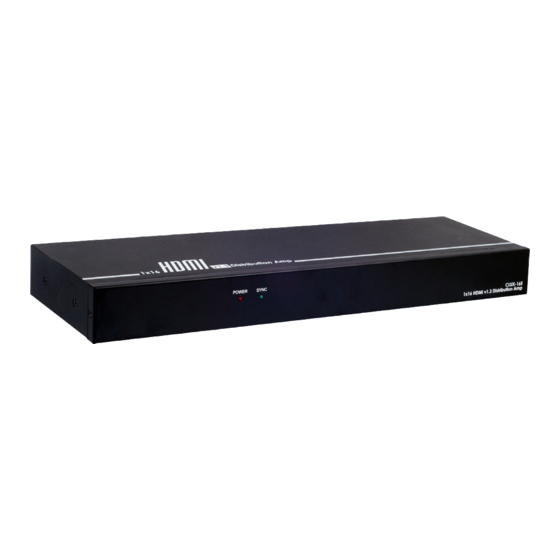

- Page 1 CLUX-16E HDMI V1.3 1 by 16 Splitter Operation Manual CLUX-16E...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel .............. -
Page 5: Introduction
1. Introduction The HDMI 1 by 16 splitter is capable of handling HDMI v1.3 and with support for Deep Color video and new lossless compressed digital audio. With extra features like EDID, this splitter is able to handle all your HDMI splitting needs. 2. - Page 6 Note: A.Cable tested with 24AWG using cables of another type may result in a different operating distance. B. Cable distance test included the following: PS3 120G and 37” Samsung 12-bit LCD TV. C.Figures provided in this manual are reference figures only, actual figures may depend on source and display use with cable specification.
-
Page 7: Specifications
6. Specifications TMDS Clock Frequency 225MHz Input Port 1 x HDMI, Output Ports 16 x HDMI EDID STD/TV HDMI Audio Format PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD HDMI Cable In 1080p 8-bit or 12-bit (10M) HDMI Cable Out 1080p 8-bit or 12-bit (10M) Power Supply 5V / 6A DC ( US/EU standards, CE/FCC/UL certified) -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel . Power LED: The green LED will illuminate when the power is connected with AC wall outlet. . SYNC: The LED will illuminate in green when the device has detected with sync from source. This LED will also blink once while the power is turned on. -
Page 9: Connection And Installation
8. Connection and Installation Blu-Ray HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV HDTV... - Page 10 Acronyms Acronym Complete Term Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Standard...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CAUSBAT100R...
