- Page 1 CLUX-12E 1x2 HDMI 1.3 Splitter Operation Manual CLUX-12E...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Features …………………………………………..……..…...…… Operation Controls and Functions ……………...……....…… Top Panel ................. Rear Panel .…………………………………..……..…...….… Connection and Installation ….…………………..…..…..…..Specifications ………………………………...……..………..…. Acronyms ….................. -
Page 5: Introduction
1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). -
Page 6: Operation Controls And Functions

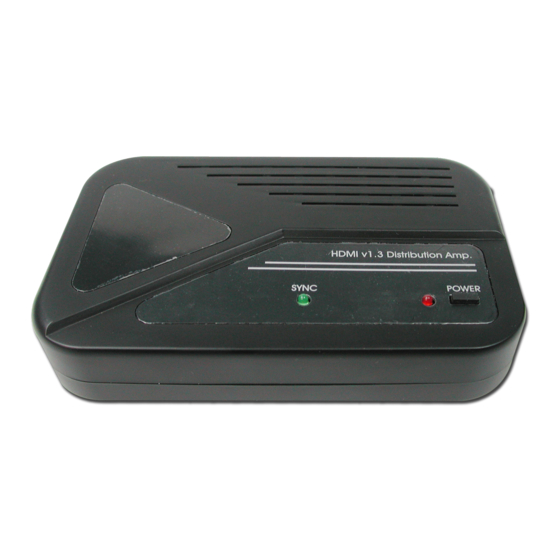

3. Operation Controls and Functions 3.1 Top Panel HDMI v1.3 Distribution Amp. POWER SYNC ① ② ① Sync LED: The LED will illuminate when the HDMI source signal is connected to the input. ② Power LED indicator: The power LED will illuminate when power on. 3.2 Rear Panel DC 5V INPUT... -
Page 7: Connection And Installation
4. Connection and Installation LCD TV LCD TV 5. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Port 1x HDMI female port (Type A connector) Output Ports 2x HDMI female ports (signal link) Power Supply 5V/1A linear power adaptor (US/EU standards, CE/FCC/UL certified) Or 5V/1.2A switching power adaptor (with universal plug, CE/FCC/UL certified) -
Page 8: Acronyms
Acronyms Acronym Complete Term... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080204 MPM-CLUX12E...
