Summary of Contents for Cypress CLUX-14W

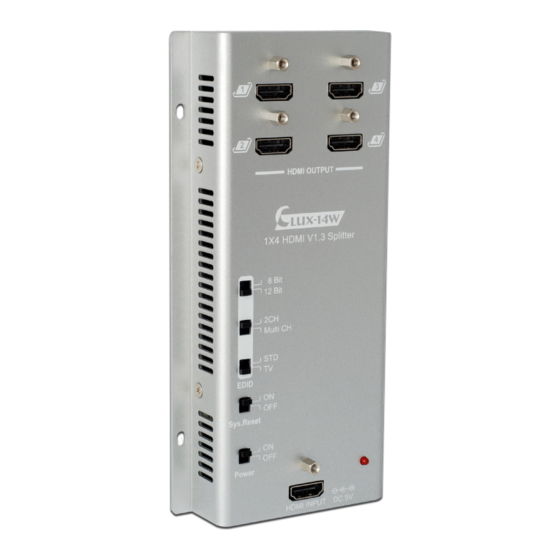

- Page 1 CLUX-14W 1 by 4 HDMI 1.3 Splitter Operation Manual CLUX-14W...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................2 6. Specifications ................3 7. Operation Controls and Functions ..........4 7.1 Front Panel ............... 4 7.2 Bottom Panel ..............5 8. Connection and Installation . -
Page 5: Introduction
1. Introduction The HDMI v1.3 Splitter is an advanced solution for HDMI signal distribution. This device supports deep color (10 & 12-bit) video with new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6,75Gbps). Besides just splitting and distributing, this device also amplifies and equalizes your signal to provide high performance I/O of audio and video. -
Page 6: Features
5. Features • HDMI v1.3, HDCP1.1 and DVI1.0 compliant . • Supports Deep Color video up to 12bit, 1080p(24/60Hz). • One HDMI source can simultaneously connect with four HDMI displays. • HDCP keysets allow each output to work independently when connecting to an HDMI display. -
Page 7: Specifications
6. Specifications Frequency bandwidth 2.25Gbps (single link) Input port 1 x HDMI Female port Output ports 4 x HDMI Female ports (single link) ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) PCB stack - up 4-layer board impedance control - differential 100 ohm - sigle 50 ohm Input TMDS signal... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions ① HDMI OUTPUT 1~4: 7.1 Front Panel Connect your LCD TV or HD monitor with HDMI cables. ② EDID selection: STD/TV – By switching to STD you can select both deep color and audio channel functions, if switching to TV the ①... -
Page 9: Bottom Panel
7.2 Bottom Panel ① DC 5V: Plug the 5VDC power supply into the unit and connect the adaptor to an AC outlet. A red LED will turn on when the Power is on. ① 8. Connection and Installation LCD TV LCD TV LCD TV LCD TV... - Page 10 Acronyms Acronym Complete Term Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwith Digital Content Protection HDMI High-Definition Multimedia Interface Multi CH Multiple Channel Standard...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090814 MPM-CLUX14W...
