- Page 1 CLUX-14CEC 1x4 HDMI 1.3 Splitter Operation Manual Operation Manual CLUX-14CEC...
- Page 2 TABLE OF CONTENTS 1. Introduction................2. Main Features................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................6. HDMI v1.3 Series..............
- Page 3 1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps).

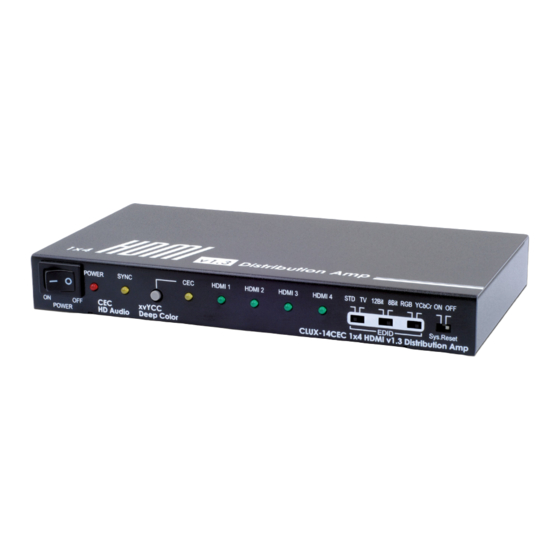

- Page 4 SYNC HDMI 1 HDMI 2 HDMI 3 HDMI 4 xvYCC CLUX-14CEC HD Audio Deep Color 1x4 HDMI v1.3 Distribution Amp POWER Power Switch: Press the switch to power on the unit. Power LED Indicator: The LED will illuminate when the power is connected.
- Page 5 3.2 Rear Panel HDMI IN HDMI OUT DC 5V HDMI Input: Connect input port to the HDMI or DVI output port of your source equipment such as DVD player or set-top-box. HDMI output 1/2/3/4: Connect each of the output ports to the HDMI display.
- Page 6 4. Connection and Installation LCD TV LCD TV LCD TV LCD TV 5. Specifications Frequency bandwidth 2.25Gbps (single link) Input port 1x HDMI female port (Type A connector) Output ports 4x HDMI female ports (signal link) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 200(W) x 104(D) x 25(H) Weight(g)
