- Page 1 2x10 HDMI 1.3 Splitter Operation Manual CLUX-210S...
-
Page 2: Table Of Contents
3. Operation Controls and Functions........... 2 3.1 Front Panel................2 3.2 Rear Panel................3 4. Remote Control................. 4 5. RS-232 Remote Control Protocol..........4 ..........4 5.1 Pins definition of modem cable ................4 5.2 Commands 6. Specifications................5 7. Cypress HDMI v1.3 Series:............6... -
Page 3: Introduction
1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting edge technology which defines the support to transfer Deep Color (10-bit and 12-bit ) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). -
Page 4: Operation Controls And Functions

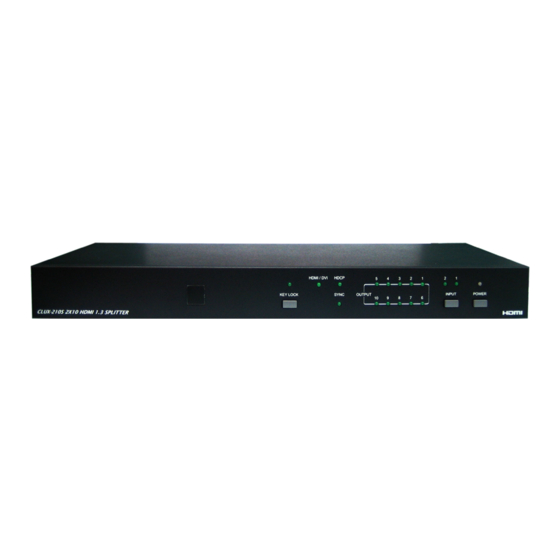

3. Operation Controls and Functions 3.1 Front Panel HDMI / DVI HDCP KEY LOCK SYNC OUTPUT INPUT POWER CLUX-210S 2X10 HDMI 1.3 SPLITTER 1 Remote Control Sensor. 2 Key Lock: Press and hold the "Key Lock" button for 5 seconds the system will enter into Key Lock mode. -
Page 5: Rear Panel
3.2 Rear Panel RS-232 HDMI OUT DC 5V HDMI IN EDID STD TV 1 EDID Control Jumper: Default factory setting is TV, leave as if the display is properly. Switch to STD to use build-in EDID if the display has problems. When the EDID control jumper in TV selection, the unit will detect the first HDMI output source's EDID and record in the unit. -
Page 6: Remote Control
4. Remote Control POWER POWER: Press the button to turn on/off the unit. Input Select for HDMI: Press '1" to select HDMI 1 input, press "2" to select HDMI 2 input. CR-37 5. RS-232 Protocol 5.1 Pins definition of modem cable RS-232 modem cable. -
Page 7: Specifications
6. Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 2x HDMI female ports (Type A connector) Output ports 10 x HDMI female ports Power Supply 5VDC/5A (US/EU standards, CE/FCC/UL certified) Remote Control Discrete IR remote Dimensions (mm) 436(W) x 160(D) x 44(H) Weight(g) 2000 Chassis Material... -
Page 8: Cypress Hdmi V1.3 Series
7. Cypress HDMI v1.3 Series: Product Description CLUX-11S 1x1 HDMI V1.3 Repeater CLUX-12S 1x2 HDMI V1.3 Splitter CLUX-14S 1x4 HDMI V1.3 Splitter CLUX-18S 1x8 HDMI V1.3 Splitter CLUX-21SY 2x1 HDMI V1.3 Switcher CLUX-31S 3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher...
