Summary of Contents for Cypress CLUX-1H4CAT

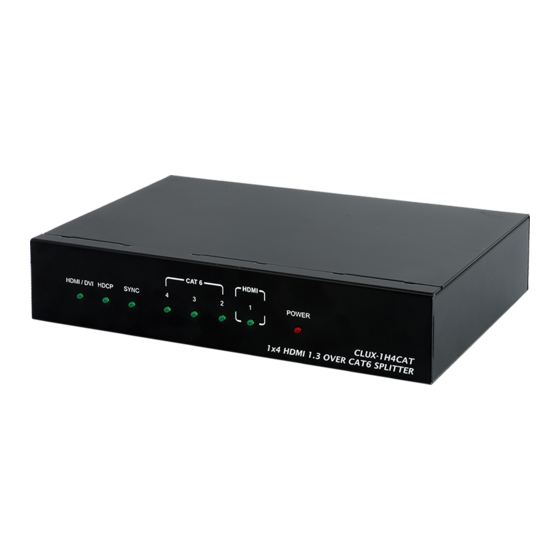

- Page 1 CLUX-1H4CAT 1 by 4 HDMI to CAT 6 V1.3 Splitter Operation Manual CLUX-1H4CAT...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 4: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Pin Definitions ……………...……..........…… IR Cable Pin Definition ............RJ-45 Pin Definitions ..............Connection and Installation ….…………………..…..…..….. -
Page 6: Introduction
1. Introduction The 1 by 4 HDMI to CAT6 1.3 splitter when used with CAT6 to HDMI receivers it will allows user to distribute a HDMI over 45 meters through CAT6 cables over 45 mters This solution provides a direct input of one HDMI to a looped output of HDMI and 3 CAT6 outputs –... -
Page 7: Features
5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant Deep color video up to 12bit, 1080p@60Hz One HDMI source connection to one HDMI output and three CAT6 to HDMI - allowing users to link up to four displays simultaneously HDCP keysets allows each output to work independently when ... -
Page 8: Specifications
6. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Ports 1 x HDMI female port (Type A connector) Output Ports 3 x CAT6 output Video/3 x CAT6 output DDC 1 x HDMI female port (Type A connector) EDID STD / TV HDMI Audio Output PCM2, 5.1, 7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD... -
Page 9: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit with installation and functionality. 7.1 Front Panel ① ② ③ ④ ⑤ ① HDMI/DVI indicators: When LED illuminate this means the input source is with HDMI content and when the input source is DVI the LED will not illuminate. - Page 10 ③ EDID Control Switcher: Switch the EDID between STD & TV. Switch to STD to use built-in EDID or switch to TV to use TV ’ s EDID. Default factory setting is on TV, leave as it is when the display is properly. Note: 1.
-
Page 11: Pin Definitions
8. Pin Definitions 8.1 IR Cable Pin Definition IR Blaster IR Receiver ① Power 5V ① IR signal ② NC ② Power 5V ③ IR blaster signal ③ Grounding ① ② ③ ① ② ③ Note: The frequency on both IR Receiver & Blaster can support 20~60KHz. 8.2 RJ-45 Pin Definitions Video TX2+... -
Page 12: Connection And Installation
° °... -
Page 14: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 cable Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared LPCM Linear Pulse Code Modulation Standard SYNC Synchronize SXGA Super Extended Graphics Array Video Graphics Array...
