EL-C61C
v1.3 HDMI 6-Way Switcher with
CEC
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-C61C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP EL-C61C

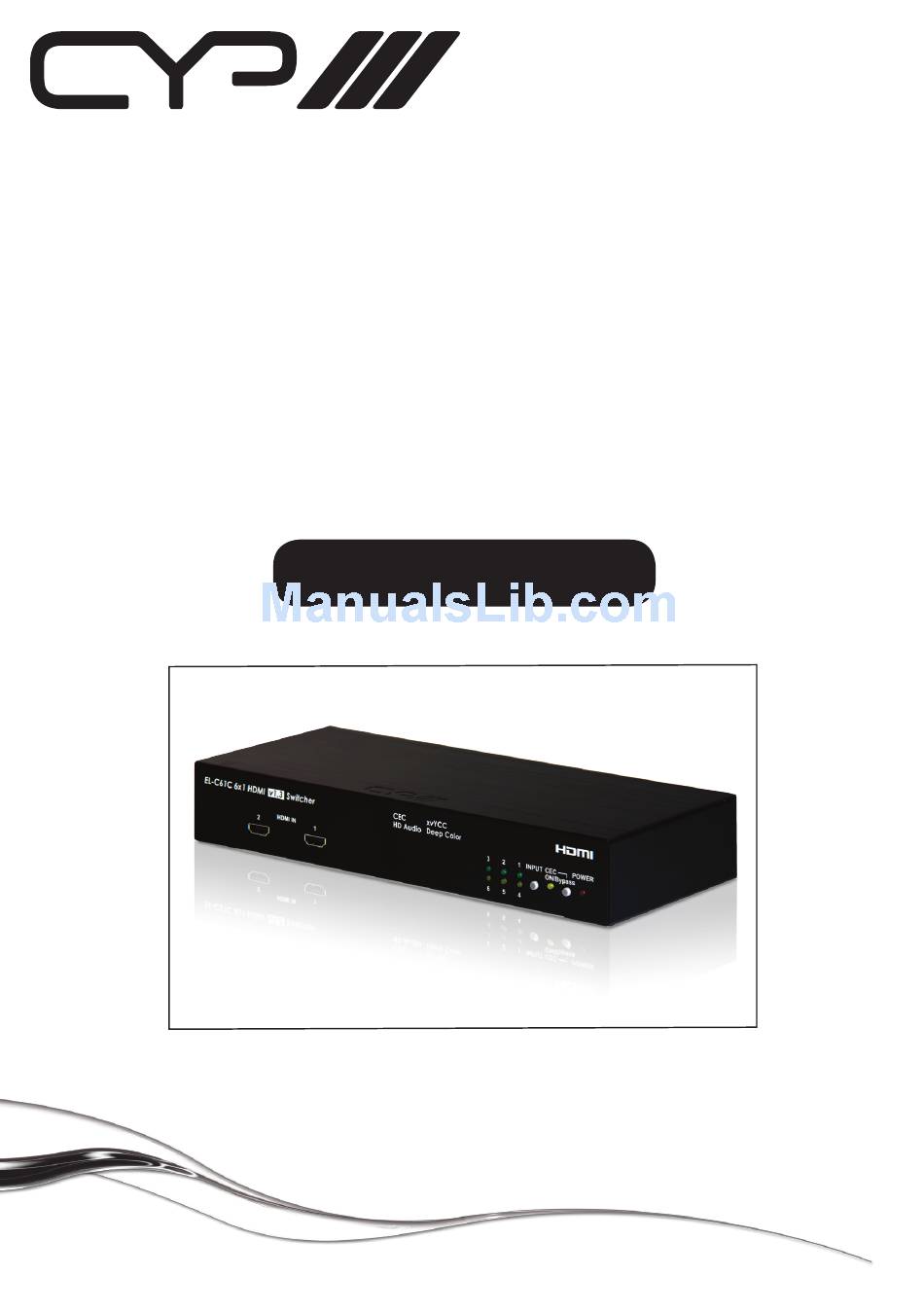

  • Page 1 EL-C61C v1.3 HDMI 6-Way Switcher with OPERATION MANUAL...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control RS232 Pinouts Commands Sets Connection Diagram Specifications...
  • Page 3: Introduction

    1. Introduction Each switcher in the Elector Range is compatible to v1.3 HDMI specifications, supporting up to 16 bit Deep Colour together with High Definition audio. This CEC command function switcher allows the latest v1.3 HDMI equipment to Auto-Switch on source power up. 2.
  • Page 4: Package Contents

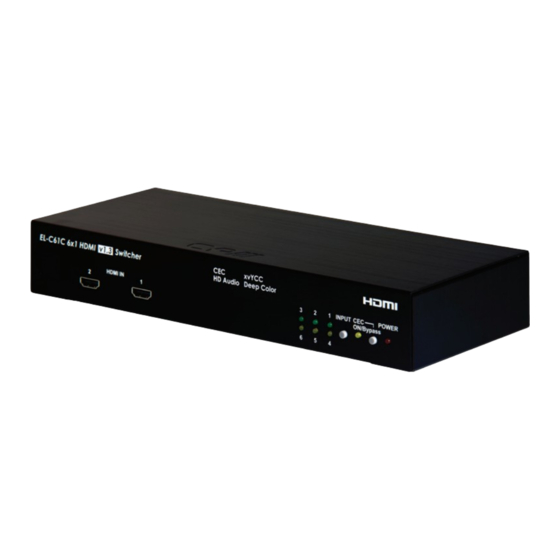

    6 by 1 HDMI v1.3 Switcher • Remote Control (CR-63 with battery) • 5V DC Power Supply Adaptor • Operation Manual. 4. Operation Controls and Functions 4.1 Front Panel EL-C61C 6x1 HDMI v1.3 Switcher xvYCC HD Audio Deep Color HDMI IN 1 INPUT POWER ON/Bypass 1.
  • Page 5: Rear Panel Diagram

    4.1 Rear Panel RS-232 DC 5V HDMI IN HDMI OUT 1. HDMI OUT: This is the slot where you connect the HDMI output of the switcher to the HDMI input of your display using a HDMI cable. 2. RS-232 input: When doing firmware upgrade and/or PC remote system control, connect a D-sub 9 pin cable from this RS232 slot to your computer.
  • Page 6: Remote Control

    4.3 Remote Control ② POWER ① ③ INPUT CR-63 1. Power: Press the button to turn on the unit-or set the device to standby mode. 2. CEC: Press the button to turn on /Bypass the CEC function. When the LED illuminate it means CEC is ON and both input source and output display must support CEC function in order to perform CEC rightly.
  • Page 7: Rs232 Pinouts

    5. RS232 Pinouts EL-41AT Remote Control Console Definition Definition RS-232 transmission format: • Baud Rate: 19200 bps • Data bit: 8 Bits • Parity: None • Stop Bit: 1 bit • Flow Chart: None 6. Commands Sets COMMAND ACTION “I” + “1” PORT 1 ON “I”...
  • Page 8: Connection Diagram

    “P” + “0” POWER OFF “P” + “0” POWER OFF “S” REPORT STATE RS-232 transmission format: • Baud Rate: 19200 bps • Data bit: 8 Bits • Parity: None • Stop Bit: 1 bit • Flow Chart: None 7. Connection Diagram Page 6...
  • Page 9: Specifications

    7. Specifications HDMI Input Port 6 x HDMI female ports + 1 x RS-232 HDCP Version V1.1 HDMI Output Port 1 x HDMI female port Color Space YCbCr 4:2:2 16/20/24 bits Deep Colour RGB / YCbCr 4:4:4 24/30/36 bits Human body model: ± 10kV (air-gap discharge) ESD Protection ±...
  • Page 10 Notes:...
  • Page 11 www.cypeurope.com...
