EL-5500
Advanced HDMI/VGA Presentation Switch
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-5500 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP EL-5500

Summary of Contents for CYP EL-5500

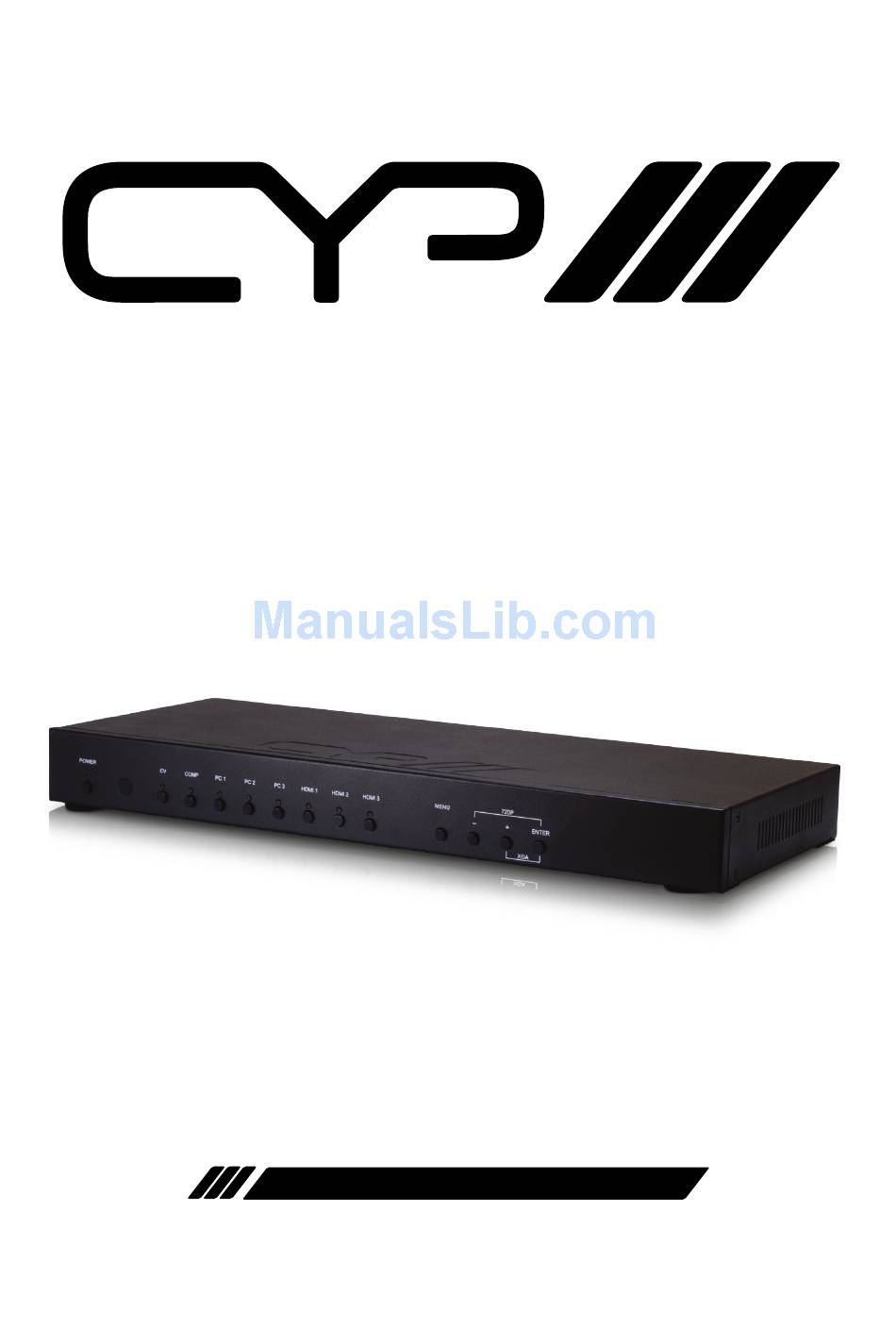

  • Page 1 EL-5500 Advanced HDMI/VGA Presentation Switch OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Protocols ........11 6.5 RS-232 Commands ........12 6.6 OSD MENU ..........14 7.

  • Page 6: Introduction

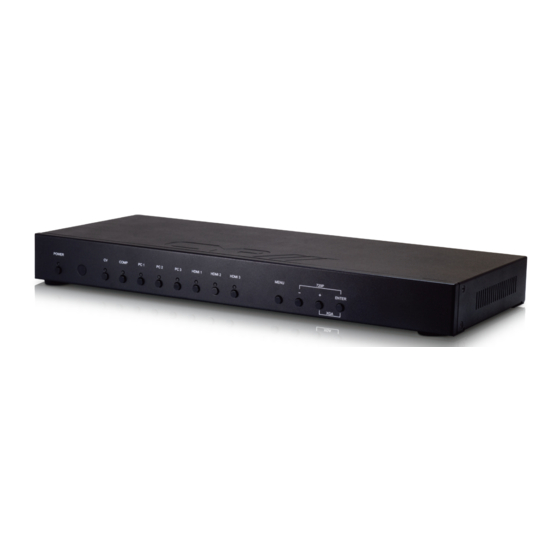

    1. INTRODUCTION The EL-5500 is an advanced rack mountable HDMI, VGA, Composite, and Component presentation switcher. This device can scale and switch input sources to it's two HDMI outputs, with their associated audio signals to the native resolutions supported by the connected display. Control is via the IR remote, RS-232, IP, or via manual selection buttons.

  • Page 7: Features

    5. FEATURES v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant Digital to Analogue & Analogue to Digital Audio conversion (DAC/ ADC) Supported Resolutions: HDTV: 480i to 1080p PC: VGA to WUXGA Aspect Ratio Adjustment Motion Adaptive De-interlace (3D) Video Noise Reduction Underscan / Overscan Selection Picture Adjustment Settings...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 720P ENTER POWER & LED: Press this button to switch ON or set the device to standby mode. Once the device is connected with power supply the LED will illuminate and the device will switch to ON automatically. This IR window receives only the IR signal from the remote control included in the package.

  • Page 9: Rear Panel

    6.2 Rear Panel INPUT SERVICE AUDIO RS232 COAX AUDIO CONTROL OUTPUT POWER DC 5V HDMI 1 HDMI 2 PC/HD Cr/Pr Cb/Pb SERVICE: Reserved for factory use only. RS-232: Connect with PC/NB and use RS-232 command to control the device. OUTPUT: HDMI 1 &...

  • Page 10: Remote Control

    CONTROL: This port is the link for Telnet or Web GUI controls, connect to an active Ethernet link with an RJ45 terminated cable. POWER: Switch this power toggle to turn on and activate the device or to turn off to shut it down. DC 5V: Plug the power adaptor included in the package and connect it to the AC wall outlet for power supply.

  • Page 11: Rs-232 Protocols

    6.4 RS-232 Protocols EL-5500 Remote Control Assignment Assignment ► ◄ Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 12: Rs-232 Commands

    6.5 RS-232 Commands Command Description Contents Start RS-232 S SOURCE 1~8 Select input source HDMI1(1) / HDMI2(2) / HDMI3 (3) / YPBP(34) / VIDEO(5) / PC(6) R SOURCE Inquire input source / PC2(7) / PC3(8) S OUTPUT 1~25 Select output timing 640*480(1)/800*600(2)/ 1024*768(3)/1280*768(4)/ R OUTPUT...
  • Page 13 S AUDIODELAY 0~3 Audio delay setting OFF(0) / 40ms (1) / 110ms(2) / 150ms(3) R AUDIODELAY Inquire audio delay setting S AUDIOMUTE 0/1 Audio mute setting ON(0) / MUTE(1) R AUDIOMUTE Inquire audio mute setting S KEY LOCK 0/1 Key lock setting ENABLE(0) / DISABLE(1) R KEY LOCK Inquire key lock setting...

  • Page 14: Osd Menu

    6.6 OSD MENU LAYER LAYER LAYER LAYER 480 60 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 OUTPUT 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50...

  • Page 15: Factory Default Setting

    LAYER LAYER LAYER LAYER R 0~1023 (512) G 0~1023 (512) B 0~1023 (512) R OFFSET 0~1023 (512) COLOR G OFFSET 0~1023 (512) B OFFSET 0~1023 (512) COLOR CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) 0~60 (30) SATURATION 0~60 (30) SHARPNESS 0~30 (0) MIDDLE HIGH AUDIO...

  • Page 16: Connection Diagram

    7. CONNECTION DIAGRAM...

  • Page 17: Specifications

    8. SPECIFICATIONS Input Port 1 x Component, 3 x VGA, 3 x HDMI, 6 x LR , 1 x USB (service only), 1 x RS-232 (Control Only) Output Port 2 x HDMI, 1 x PC/HD, 1 x Coaxial, 1 x L/R Supports Input Resolution Up to UXGA &...
  • Page 18 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
