Summary of Contents for CYP EL-C41C

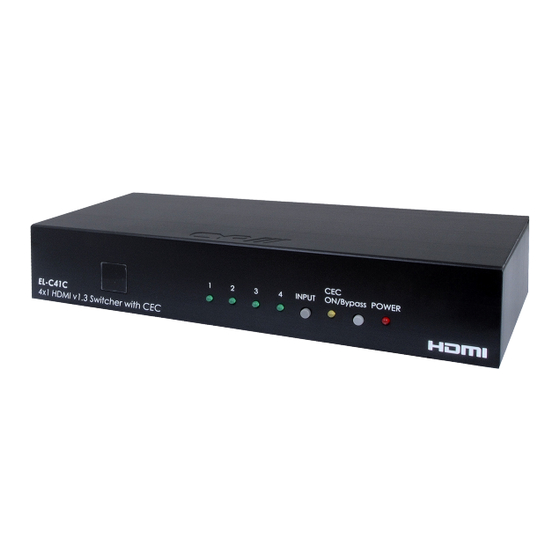

- Page 1 EL-C41C 4 by 1 HDMI V1.3 Switcher with CEC Operation Manual EL-C41C...
-
Page 2: Safety Precautions
Trademark Acknowledgments All products or service names mentioned in this document may be trademarks of the companies with which they are associated. Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: ... -
Page 3: Table Of Contents
Table of Contents Introduction …………………………………………........ Applications......…………………………………………… Package Contents....………………………………………………. System Requirements ....………………………………….….. Features ......……………………………………………….. Installation ......…………………………………….……….. 6.1 Front Panel....……..………......………….. 6.2 Rear Panel....……..………......………….. Remote Control................... RS-232 Protocol................... 8.1 Pin definition....…...………......………….. 8.2 RS-232 Command....………......………….. Connection and Installation.............. 10. Specifications.................. -
Page 4: Introduction
1. Introduction This is a high performance HDMI switcher which provides for various HDMI sources to share one HDTV display with CEC control functions of auto-off and auto-switch. It also support deep color and xvYCC with RS-232 control. Simply press one button to select your desired HDMI source for display on the HDTV or use remote control to control your sources in distant. -
Page 5: Features
5. Features HDMI 1.3 and HDCP 1.1 compliant Supports deep color display RGB/YCbCr 4:4:4 24/30/36 bits Supports color space YCbCr 4:2:2 16/20/24 bits Supports high definition audio – Dolby Digital True HD and DTS-HD ® ® Signal Enhancement feature allows signal quality improvement after ... -
Page 6: Installation
6. Installation 6.1 Front Panel INPUT ON/Bypass POWER EL-C41C 4x1 HDMI v1.3 Switcher with CEC ① ② ③ ④ ① Remote control sensor. ② Input select indicators: Press the “ INPUT ” button repeatedly to switch to your desired input source. The LED that illuminates indicate the corresponding input source is selected. -
Page 7: Rear Panel
6.2 Rear Panel RS-232 INPUT DC 5V OUTPUT ① ② ③ ④ ① HDMI OUT: This is the slot where you connect the HDMI output of the switcher to the HDMI input of your display using a HDMI cable. ② RS-232 input: When doing firmware upgrade and/or PC remote system control, connect a D-sub 9 pin cable from this RS232 slot to your computer. -
Page 8: Remote Control
7. Remote Control ② ① . Power: Press the button to turn on the unit-or set POWER the device to standby mode. ① ② . CEC: Press the button to turn on /Bypass the CEC function. When the LED illuminate it means CEC is ON and both input source and output display must support ③... -
Page 9: Rs-232 Command
8.2 RS-232 Command Command Code Function “ I ” + “ 1 ” PORT 1 ON “ I ” + “ 2 ” PORT 2 ON “ I ” + “ 3 ” PORT 3 ON “ I ” + “ 4 ” PORT 4 ON “... -
Page 10: Connection And Installation
9. Connection and Installation ° ° POWER INPUT CR-63 DVD1 DVD3 LCD TV DVD2... -
Page 11: Specifications
10. Specification Frequency Bandwidth 2.25Gbps(single link) Input Ports 4 x HDMI female ports (Type A connector) Output Ports 1 x RS232 1 x HDMI female port (single link) Color Space YCbCr 4:2:2 16/20/24 bits Deep Color RGB / YCbCr 4:4:4 24/30/36 bits ESD Protection Human body model: ±... - Page 12 Acronyms Acronym Complete Term Consumer Elelctronics Control Digital Theater System HDCP High-bandwith Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Red Green Blue SVGA Super Video Graphics Array SXGA Supper Extended Graphics Array UXGA Ultra Extended Graphics Array Video Graphics Array Extended Graphics Array...
