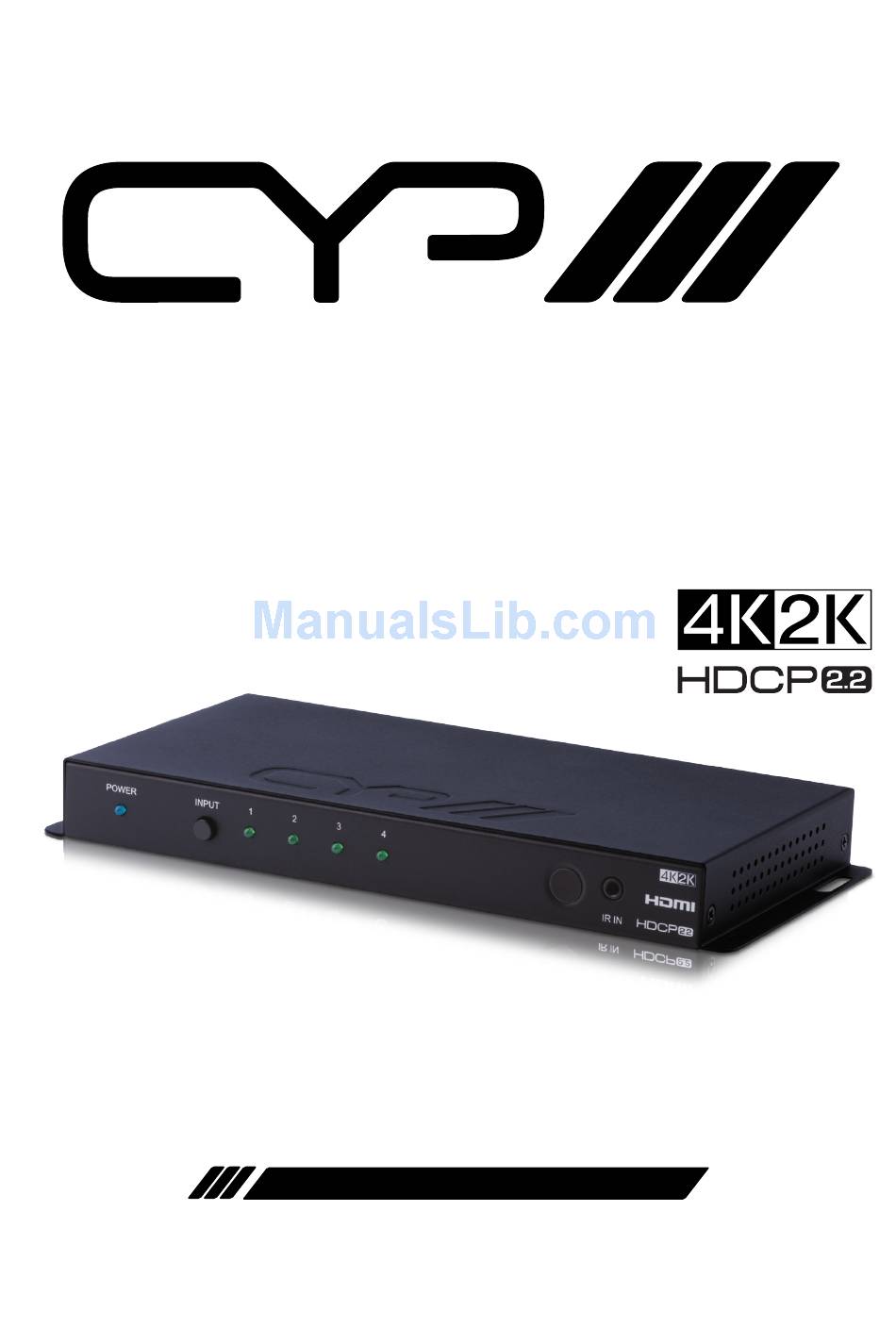

  • Page 1 EL-41S-4K22 4-Way HDMI Switcher (4K, HDCP2.2, HDMI2.0, IR) OPERATION MANUAL...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • electrical shock and injury to persons. •...

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ................1 2. Applications .................1 3. Package Contents ..............1 4. System Requirements ............2 ................2 6. Operation Controls and Functions ........3 6.1 Front Panel ..............3 6.2 Rear Panel ..............4 6.3 Remote Control ..............5 6.4 IR Pin Defi nitions ..............5 6.5 RS-232 Protocols .............6 6.6 RS-232 Commands ............7 6.7 Factory Default settings ..........8...

  • Page 5: Introduction

    HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The EL-41S-4K22 supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Color', and High Definition audio. In...

  • Page 6: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as UHD media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended.

  • Page 7: Operation Controls And Functions

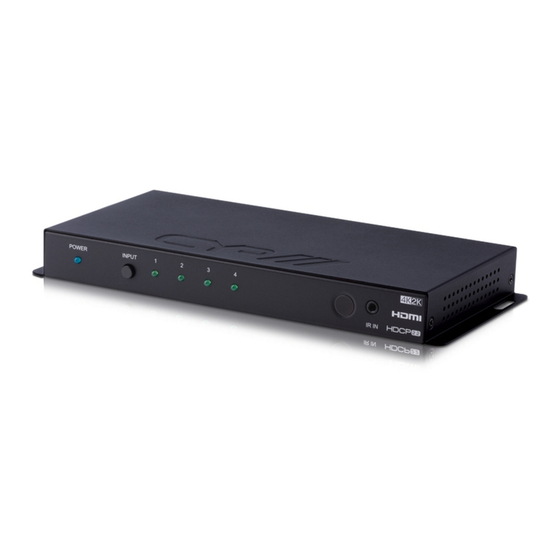

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER INPUT INPUT IR IN IR IN POWER LED: This LED will illuminate to indicate the unit is on and receiving power. INPUT: Press this button to sequentially switch through the available inputs.

  • Page 8: Rear Panel

    6.2 Rear Panel RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V OUTPUT: video and audio output. INPUT 1~4: Connect to HDMI source equipment such as media RS-232: Connect directly to your PC/laptop to send RS-232 commands to control the unit (refer to Sections 6.5 &...

  • Page 9: Remote Control

    6.3 Remote Control POWER POWER: No function INPUT 1~4: Press any of these buttons to switch to the corresponding input. INPUT CR-72 6.4 IR Pin Defi nitions IR Extender IR Signal Power Ground...

  • Page 10: Rs-232 Protocols

    6.5 RS-232 Protocols MATRIX REMOTE CONTROLLER Defi nition Defi nition ► ◄ Baud Rate: 115200bps Data bits: 8 Parity: None Flow Control: None Stop Bits: 1...

  • Page 11: Rs-232 Commands

    6.6 RS-232 Commands Command Name Description Parameters OUT N, N=1~4 (INPUT), SET/SHOW CURRENT INPUT OUT N SELECTION N=0 (MUTE), N=? (STATUS) SOURCEDET SHOW INPUT INFORMATION NONE SINKINFO SHOW SINK INFORMATION NONE HDCPIN N1 N2, N1=1~4 (INPUT), N2=1~3, N=? (STATUS) 1:FOLLOW IN HDCPIN N1 N2 SET/SHOW INPUT HDCP STATUS 2:FOLLOW OUT...

  • Page 12: Factory Default Settings

    Command Name Description Parameters EDIDIN N1 N2, N1=1~4 (INPUT), N2=1~7, N1=? (STATUS) 1:FHD/2CH 2:FHD/MCH 3:UHD/2CH EDIDIN N1 N2 SET/SHOW EDID INPUT SELECTION 4:UHD/MCH 5:UHD+/2CH 6: UHD+/MCH 7:SINK AUTOSWITCH N, N=0~1, N=? (STATUS) SET/SHOW AUTO SWITCHING AUTOSWITCH N MODE 0:OFF 1:ON SET/SHOW COMSOLE AUTO ECHO ECHO N, N=0~1,0:OFF,1:ON, ECHO N...

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player HDMI IN RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V 6GHDMI TV/Display Projector...

  • Page 14: Specifi Cations

    8. SPECIFICATIONS Video Bandwidth 600MHz/6Gbps Input Ports Output Ports VGA~WUXGA Supported Resolutions /50/60 HDMI Cable I/O Distance* 3M (4K@60Hz, YUV 4:4:4 8-bit) 5M (4K@60Hz, YUV 4:2:0 8-bit) 10M (1080p@60Hz, 8-bit) IR Frequency Baud Rate 115200 bps Power Supply 5VDC/2.7A (US/EU standards, CE/FCC/ ESD Protection Human Body model: ±...

  • Page 15: Timing

    9. TIMING HDMI SUPPORTED RESOLUTIONS (HZ) INPUT OUTPUT 640x480@60/72/75/85   800x600@56/60/72/75/85   1024x768@60/70/75/85   1280x1024@60   1366x768@60   1600x1200@60   1920x1080@60   1920x1200@60   720x576i@50   720x480i@59.94/60   720x480p@59.94/60  ...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1a...
