- Page 1 EL-41AT 4 in, 1 out v1.3 HDMI Switcher with Independent Audio OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Connection Diagram Remote Control Specifications RS232 Pinouts Command Sets... -
Page 3: Introduction

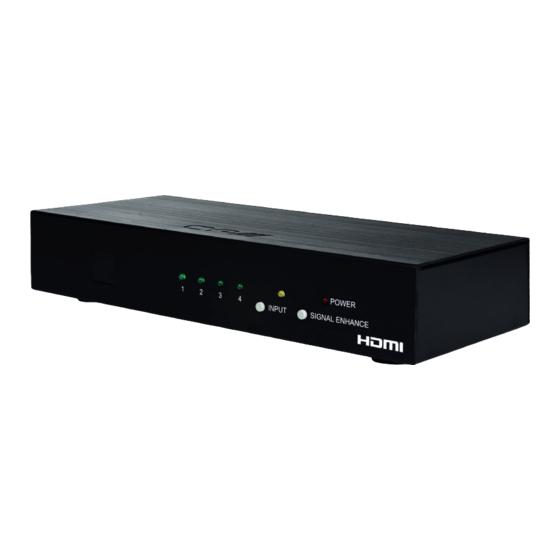

1. Introduction The EL-41AT is a high performance v1.3 HDMI switcher with separate digital audio input and output. It allows your various HDMI sources to share one HDTV display. By simply pressing one button you can select your desired HDMI source for display on the HDTV, meanwhile the selected digital audio will be passed through the Optical (Toslink) or Coaxial output to play on your audio amplifier. -
Page 4: Operation Controls And Functions
4. Operation Controls and Functions 4.1 Front Panel POWER INPUT SIGNAL ENHANCE 4x1 HDMI/Digital Audio Switcher HDMI 1.3/2.25G 1. Remote control sensor. 2. Input select/Indicators: Press the “INPUT” button repeatedly to switch to your desired input source (HDMI/Optical/Coaxial), the LED will illuminate to indicate which input source is being selected. -
Page 5: Rear Panel
4. HDMI inputs: Connect your various HDMI sources to each of the HDMI input of the EL-41AT using HDMI cables. 5. Digital audio inputs: Connects your various Optical sources to each of the Optical input of the unit using optical cables or connects your various Coaxial sources to each of the coaxial input of the unit using coaxial cables. -
Page 6: Connection Diagram
4.3 Connection Diagram HD Receiver HD Receiver Page 4... -
Page 7: Remote Control
4.4 Remote Control 1. Power: Press the button to turn the unit on or off. 2. Direct input selector: Press 1, 2, 3 or 4 to select the desired inputsource. 3. Void buttons (No function). 5. Specifications HDMI Input Port 4 x HDMI HDCP Version V1.1... -
Page 8: Rs232 Pinouts
6. RS232 Pinouts EL-41AT Remote Control Console Definition Definition RS-232 transmission format: • Baud Rate: 9600 bps • Data bit: 8 Bits Parity: None • Stop Bit: 1 bit 6.1 Commands Sets COMMAND ACTION "I" + "1" PORT 1 ON "I"...
