- Page 1 EL-21SY 2 in, 1 out v1.3 HDMI Switcher OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Connection Diagram Specifications... -
Page 3: Introduction
1. Introduction EL-21SY is a high performance HDMI switcher. It allows two HDMI sources to share one HDTV display. Simply press the input button to select your desired HDMI source to display on your HDTV. For v1.3 HDMI specified equipment the EL-21SY will auto-switch when the sources are turned on/off. -
Page 4: Operation Controls And Functions

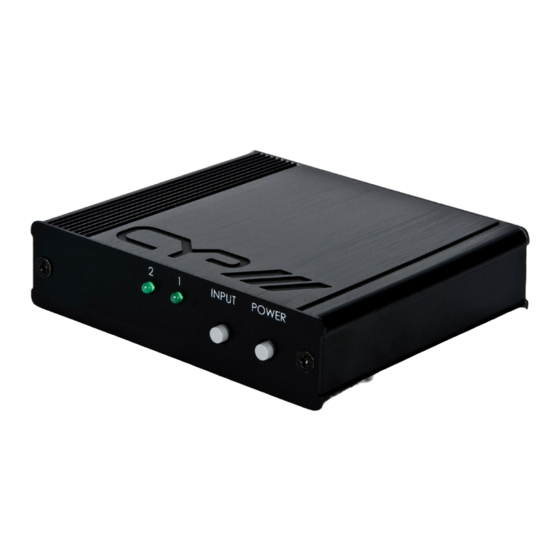

4. Operation Controls and Functions 4.1 Front Panel INPUT POWER 1. Input select/Indicator: Press the “INPUT” button to select between HDMI 1 and HDMI 2. The LED will indicate which input source is selected. 2. Power switch: Press the button to turn on the system, press again to switch off. Page 2... -
Page 5: Rear Panel Diagram
Connect your various HDMI sources to the 2 HDMI inputs of EL-21SY using an HDMI cable. 2. HDMI output: Connect the HDMI out of the EL-21SY to the HDMI input of your display using a HDMI cable. 3. Power: Plug the 5VDC power supply into the EL-21SY and connect the adaptor to AC wall outlet. -
Page 6: Connection Diagram
5. Connection Diagram HD Receiver 6. Specifications Input Port 2 x HDMI HDCP Version v1.1 Output Port 1 X HDMI HDMI Specification v1.3 Frequency bandwidth 2.25Gbps (single link) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL Certified) Dimensions (mm) 102(W) x 90(D) x 25(H) Chassis Colour Black Chassis Material... - Page 7 Notes: Page 5...
- Page 8 Page 6...
