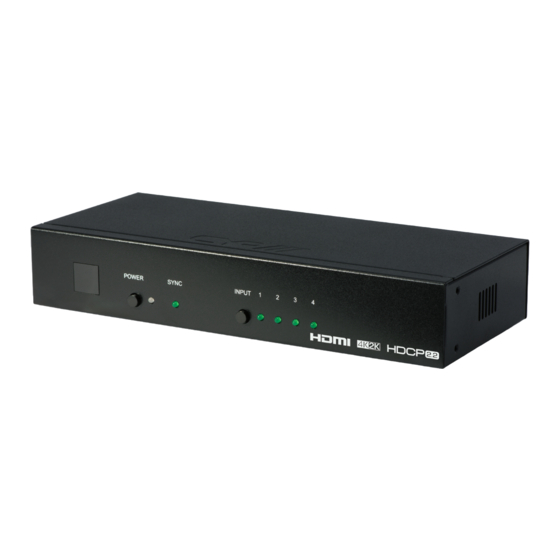

4-way advanced hdmi switcher (4k, hdcp2.2, hdmi2.0, ir, rs-232, ip, web gui)

Advertisement

Quick Links

EL-41HP-4K22
4-Way Advanced HDMI Switcher (4K, HDCP2.2, HDMI2.0,
IR, RS-232, IP, Web GUI)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-41HP-4K22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP EL-41HP-4K22

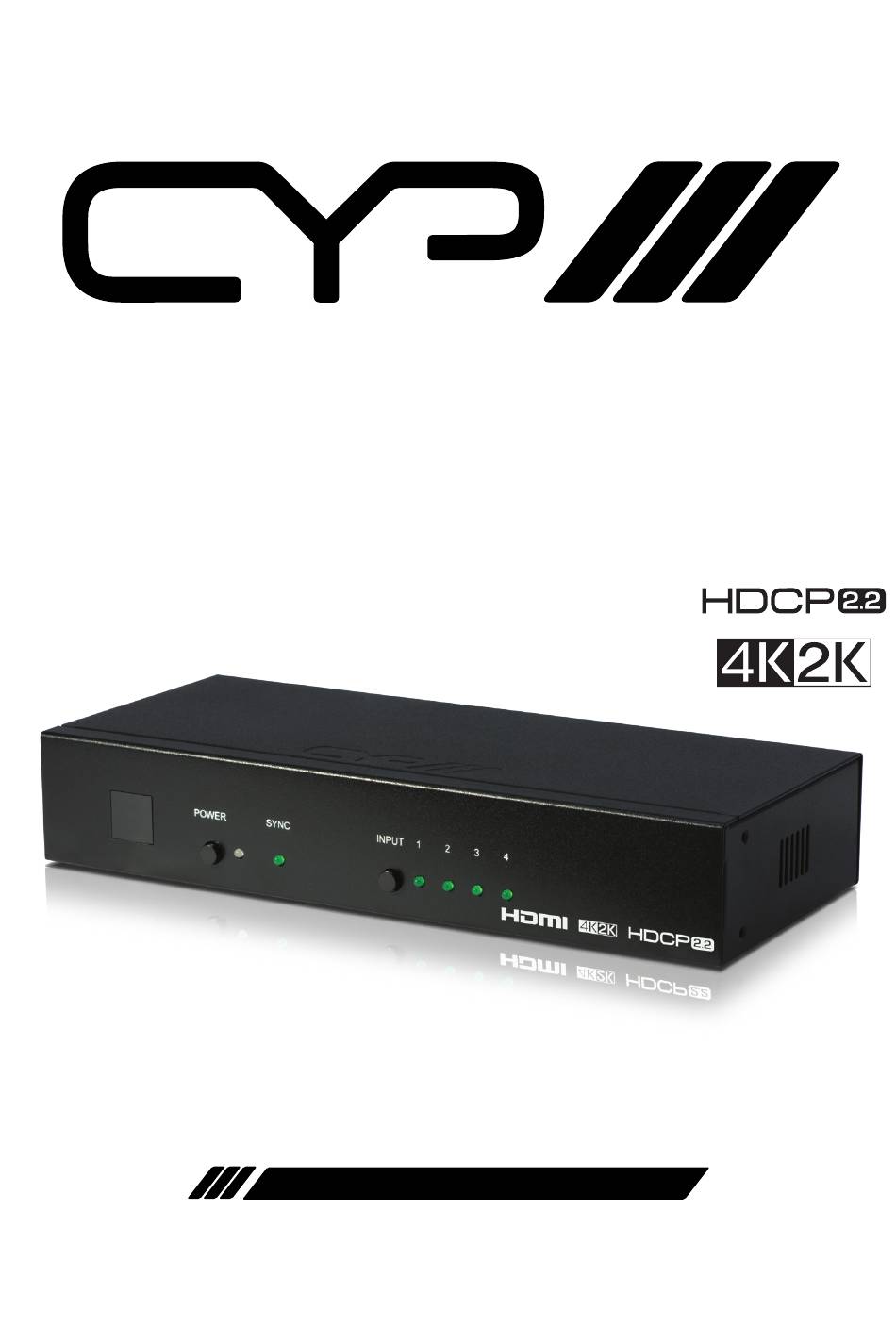

  • Page 1 EL-41HP-4K22 4-Way Advanced HDMI Switcher (4K, HDCP2.2, HDMI2.0, IR, RS-232, IP, Web GUI) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control .......... 9 6.4 IR Cable Pin Assignments .....10 6.5 RS-232 Protocol ........10 6.6 RS-232 and Telnet Commands ....11 6.7 Telnet Control ..........14...
  • Page 6: Introduction

    HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The EL-41HP-4K22 supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Colour' , and High Definition audio.
  • Page 7: Features

    5. FEATURES HDMI 2.0 with 18Gbps 4K UHD support, single-link DVI 1.0 compliant HDCP 2.2 and 1.4 compliant 4 HDMI inputs and 1 HDMI output Supports HDTV resolutions up to 4K UHD (3840×2160@50/60Hz & 4096×2160@50/60Hz) Supports data rates up to 18Gbps and Deep Colour (16-bit) up to 1080p Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC INPUT UHD 4 TO 1 SWITCHER HDCP2.2 IR WINDOW: Accepts IR signals from the included IR remote for control of this unit only. POWER: Press this button to power on the unit or place it into stand- by mode.
  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V HDMI IN 1~4: Connect to HDMI source equipment such as a media player, game console or set-top box. DVI source equipment may be connected by using an HDMI to DVI adapter. HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output.
  • Page 10: Ir Cable Pin Assignments

    6.4 IR Cable Pin Assignments IR Extender IR Signal Power Ground 6.5 RS-232 Protocol UNIT REMOTE SYSTEM Definition Definition ► ◄ Baud Rates: 115200bps Data Bits: 8 Parity Bits: None Stop Bit: 1 Flow Control: None...
  • Page 11: Rs-232 And Telnet Commands

    6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS HELP Displays all available commands. Displays all available commands. Turn unit’s power off. (Stand-by mode) Turn unit’s power on. INNAME N1 N2 Set the name of input N1 to N2. N1 = 1~4 [Input number] N2 = {name} [8 characters max] INNAME N1 Show the input name of N1.
  • Page 12 COMMAND DESCRIPTION AND PARAMETERS EDIDMODE N1 Set the EDID mode. Available values for N1: 0 [Appoint] 1 [All] EDIDMODE Show the current EDID mode setting. EDIDALL N1 Set the EDID to use in “All” mode. Available values for N1: 0 [SINK] 1 [720P] 2 [1080P] 3 [4K_3G]...
  • Page 13 COMMAND DESCRIPTION AND PARAMETERS AUTO_SWITCH N1 Enable or disable auto switching mode. Available values for N1: 0 [Disabled] 1 [Enabled] AUTO_SWITCH Show current auto switching mode status. FADEFAULT Reset the unit to the factory defaults. REBOOT Reboot the unit. Show the unit’s current firmware version. IPCONFIG Show the current IP configuration.
  • Page 14: Telnet Control

    6.7 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start” menu, click on “Run”, type “cmd”...
  • Page 15: Webgui Control

    6.8 WebGUI Control 6.8.1 Device Discovery APP Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”...
  • Page 16 6.8.2 WebGUI Control Page All functions, including power, input selection, EDID management, HDCP management, port naming, Ethernet settings, and reset/firmware functions, are presented on a single web page to allow for simple and intuitive operation. The individual functions will be explained in the following sections.
  • Page 17 3. EDID This tab controls EDID management for the unit. All inputs can share the same assigned EDID, or each input can have a discrete EDID assigned to it. ALL: Selecting the “ALL” mode will send the selected EDID to all inputs. APPOINT: Selecting the “APPOINT”...
  • Page 18 5. Naming This tab allows for the renaming of the four HDMI input ports and the HDMI output port. Please click the “SAVE” button to store the changes. 6. Network Setting This tab provides control over the unit’s network settings. The IP mode can be set to “DHCP”...
  • Page 19 8. Status This tab displays the currently selected HDMI input source and the unit’s firmware version as well as allowing for resetting or rebooting the unit. RESET: To perform a factory reset on the unit, please click the “RESET” button. REBOOT: To reboot the unit, please click “REBOOT”...
  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray Player Game Console Set-top Box Satellite Receiver HDMI Power Inputs Supply HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V RS-232 RS-232 Control System HDMI Output Input Connection Internet 60° Connected Router POWER INPUT CR-72 Remote UHDTV...
  • Page 21: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 4×HDMI Output Ports 1×HDMI Control Interfaces 1×IR Extender (3.5mm) 1×RS-232 (9-pin D-sub) 1×IP Control (RJ45) Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions)
  • Page 22: Video Specifications

    8.2 Video Specifications Supported PC Resolutions (Hz) Input Output 640×480@60/72/75   800×600@60/72/75   1024×768@60/70/75   1280×768@60   1280×1024@60   1360×768@60   1600×1200@60   1920×1200@60 (RB)   Supported TV Resolutions (Hz) Input Output 480i@60 ...
  • Page 23: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HTTP HyperText Transfer Protocol Internet Protocol Infrared Local Area Network LPCM Linear Pulse-Code Modulation Personal Computer...
  • Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
