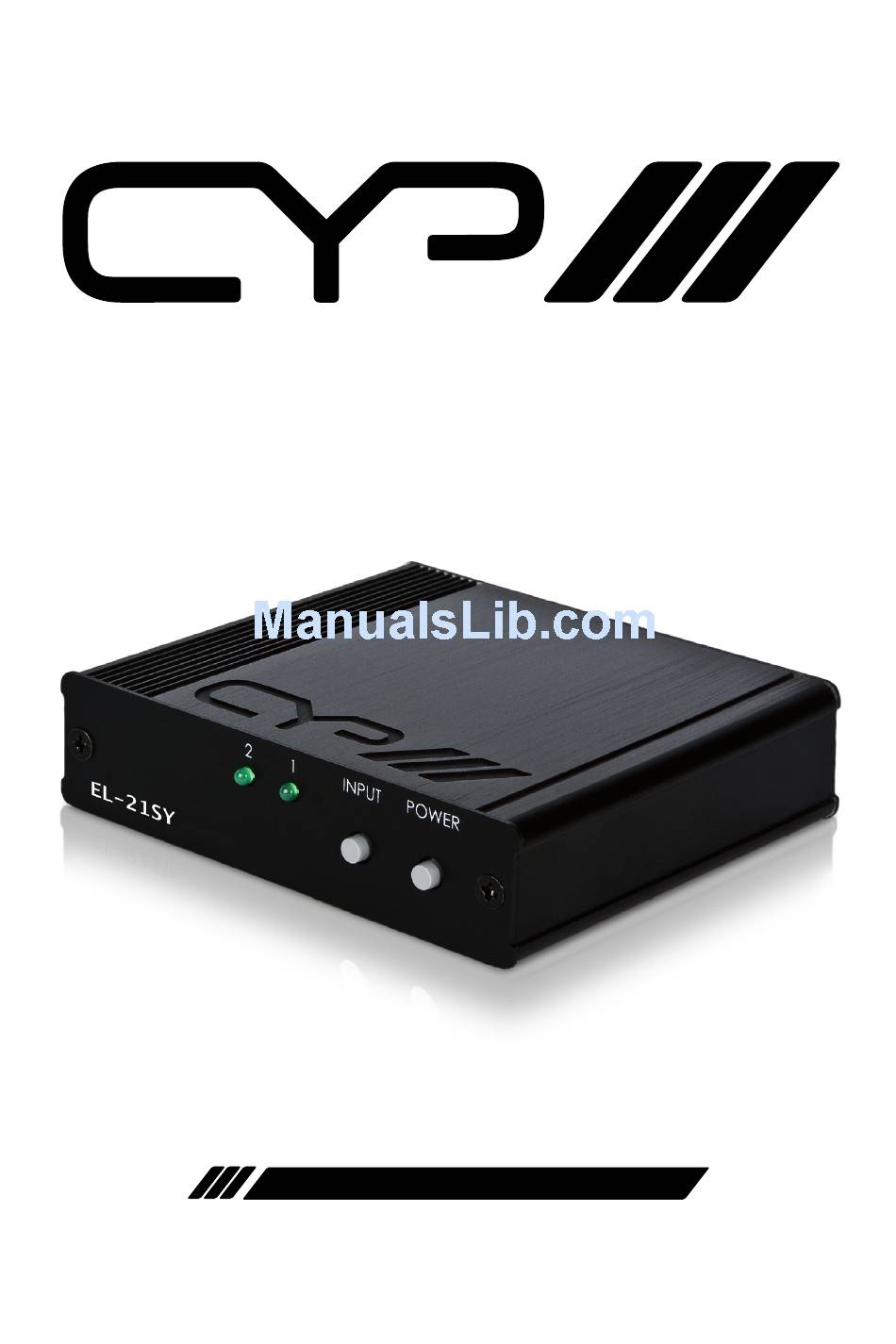

- Page 1 EL-21SY 2-Way HDMI Switcher OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11... -
Page 6: Introduction
1. INTRODUCTION The EL-21SY switcher accepts two HDMI inputs and allows the user to switch between two input sources to provide a single HDMI output for connection to the HDMI display. This switcher has an auto-detect function which will switch the unit when a source which is powered ‘On’... -
Page 7: Features
5. FEATURES HDMI, HDCP 1.1 and DVI 1.0 compliant HDMI 2-way Switcher Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA & WUXGA (1920x1200) HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 1080p24fps High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM Auto signal enhancement feature can improve signal quality after long distance transmission... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT POWER INPUT button and LED: Press this button to switch between source 1 or 2. The LED will illuminate to indicate the selected source. POWER button: Press this button to switch on the device, press it again to switch the device into standby mode. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V HDMI 1 HDMI 2 HDMI OUTPUT: Connect to a HDMI equipped TV/monitor or AV receiver for display of the selected HDMI source signal. IN 1/2: Connect to the HDMI source devices such as a Blu-ray player or a Set- top Box with HDMI cables or DVI to HDMI cables. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Set-top Box Blu-ray Player HDMI HDMI Input Input Power Supply DC 5V HDMI 1 HDMI 2 HDMI HDMI Output TV/Monitor... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 2 × HDMI Female Ports (Type A Connector) Output port 1 × HDMI Female Port (Type A Connector) Power Supply 5 V DC/1.2 A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body ±8 kV (air-gap discharge) model: ±4 kV (contact discharge) - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
