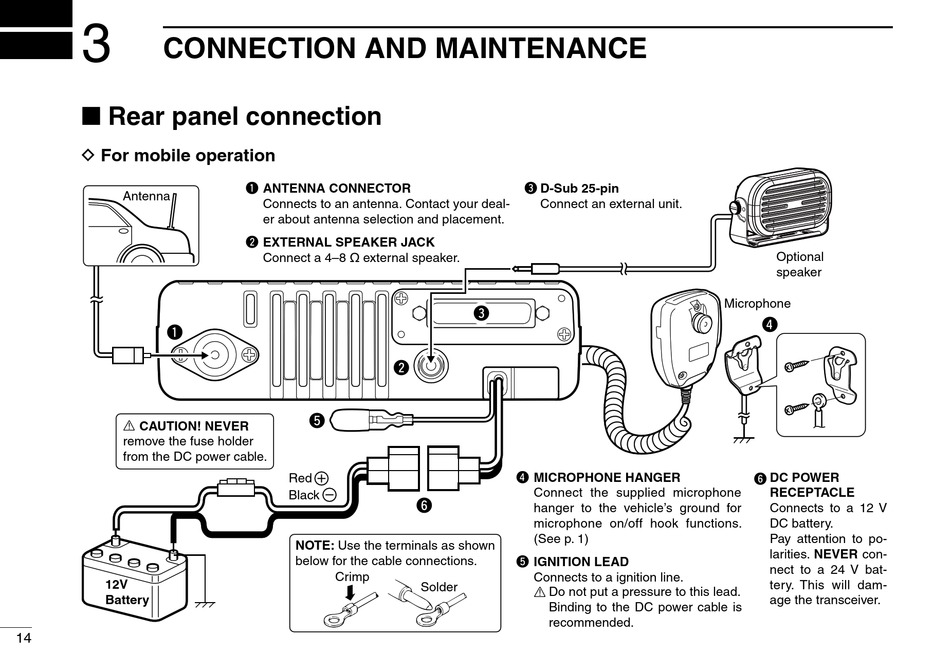

CONNECTION AND MAINTENANCE

■ Rear panel connection

D For mobile operation
Antenna
q
R CAUTION! NEVER
remove the fuse holder
from the DC power cable.
12V
Battery
14
ANTENNA CONNECTOR
q
Connects to an antenna. Contact your deal-
er about antenna selection and placement.
EXTERNAL SPEAKER JACK
w
Connect a 4–8 ø external speaker.
w
t
Red
Black
y
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Solder
D-Sub 25-pin
e
Connect an external unit.
e
MICROPHONE HANGER
r
Connect the supplied microphone
hanger to the vehicle's ground for
microphone on/off hook functions.
(See p. 1)
IGNITION LEAD
t
Connects to a ignition line.
R Do not put a pressure to this lead.
Binding to the DC power cable is
recommended.
Optional
speaker
Microphone
r
DC POWER
y
RECEPTACLE
Connects to a 12 V
DC battery.
Pay attention to po-
larities. NEVER con-
nect to a 24 V bat-
tery. This will dam-
age the transceiver.
