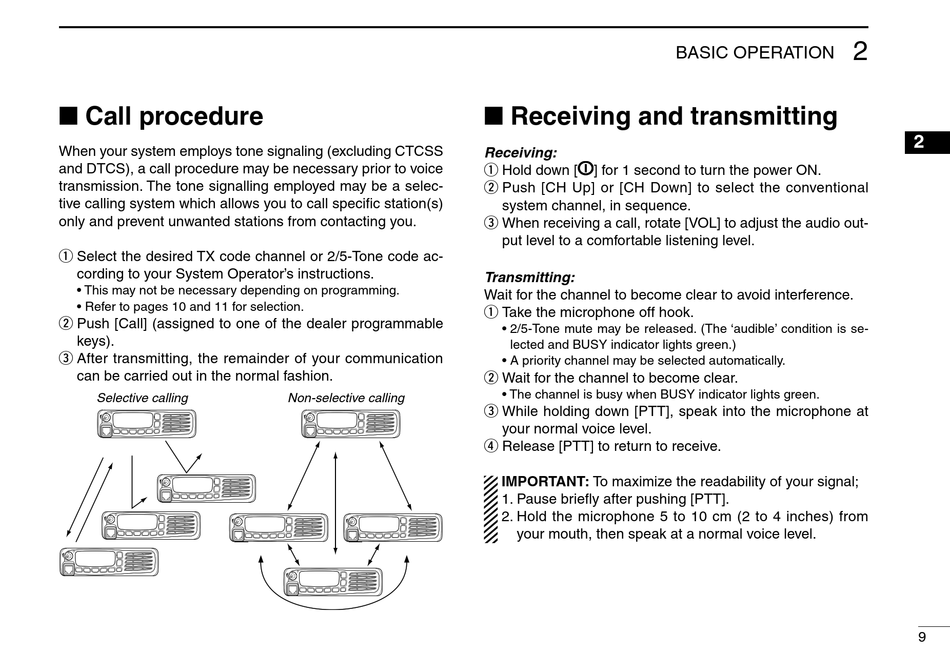

■ Call procedure

When your system employs tone signaling (excluding CTCSS
and DTCS), a call procedure may be necessary prior to voice
transmission. The tone signalling employed may be a selec-
tive calling system which allows you to call specific station(s)
only and prevent unwanted stations from contacting you.
q Select the desired TX code channel or 2/5-Tone code ac-
cording to your System Operator's instructions.
• This may not be necessary depending on programming.
• Refer to pages 10 and 11 for selection.
w Push [Call] (assigned to one of the dealer programmable
keys).
e After transmitting, the remainder of your communication
can be carried out in the normal fashion.
Selective calling Non-selective calling

■ Receiving and transmitting

Receiving:
q Hold down [ ] for 1 second to turn the power ON.
w Push [CH Up] or [CH Down] to select the conventional
system channel, in sequence.
e When receiving a call, rotate [VOL] to adjust the audio out-
put level to a comfortable listening level.
Transmitting:
Wait for the channel to become clear to avoid interference.
q Take the microphone off hook.
• 2/5-Tone mute may be released. (The 'audible' condition is se-
lected and BUSY indicator lights green.)
• A priority channel may be selected automatically.
w Wait for the channel to become clear.
• The channel is busy when BUSY indicator lights green.
e While holding down [PTT], speak into the microphone at
your normal voice level.
r Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at a normal voice level.
