Panel Description; Front Panel - Icom IC-F5062 Instruction Manual

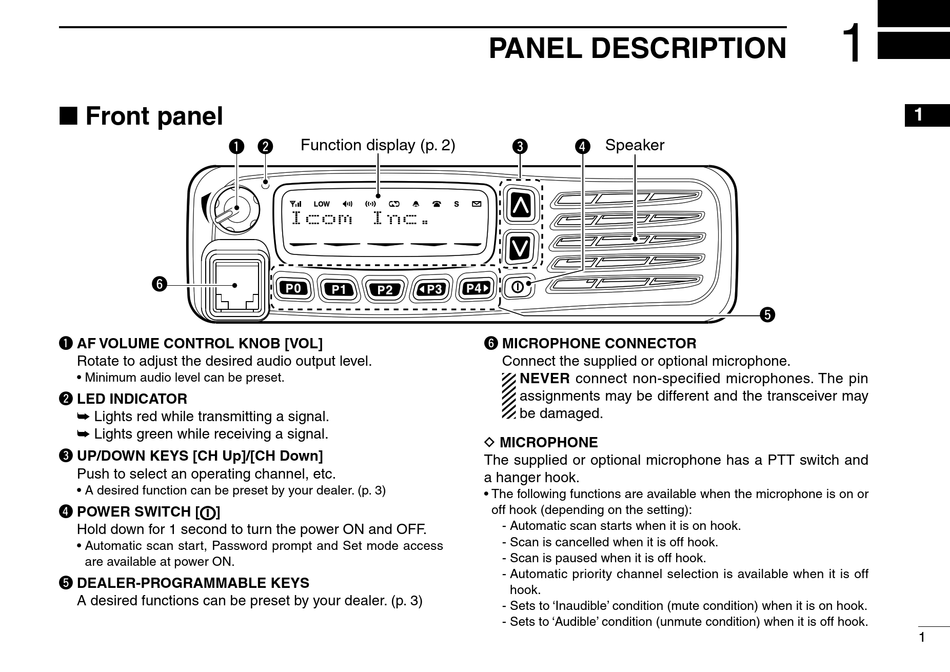

■ Front panel

q
y
q AF VOLUME CONTROL KNOB [VOL]
Rotate to adjust the desired audio output level.
• Minimum audio level can be preset.
w LED INDICATOR
➥ Lights red while transmitting a signal.
➥ Lights green while receiving a signal.
e UP/DOWN KEYS [CH Up]/[CH Down]
Push to select an operating channel, etc.
• A desired function can be preset by your dealer. (p. 3)
r POWER SWITCH [ ]
Hold down for 1 second to turn the power ON and OFF.
• Automatic scan start, Password prompt and Set mode access
are available at power ON.
t DEALER-PROGRAMMABLE KEYS
A desired functions can be preset by your dealer. (p. 3)
Function display (p. 2)
w
I c o m I n c .

PANEL DESCRIPTION

Speaker
e r
y MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
D MICROPHONE
The supplied or optional microphone has a PTT switch and
a hanger hook.
• The following functions are available when the microphone is on or
off hook (depending on the setting):
- Automatic scan starts when it is on hook.
- Scan is cancelled when it is off hook.
- Scan is paused when it is off hook.
- Automatic priority channel selection is available when it is off
hook.
- Sets to 'Inaudible' condition (mute condition) when it is on hook.
- Sets to 'Audible' condition (unmute condition) when it is off hook.
