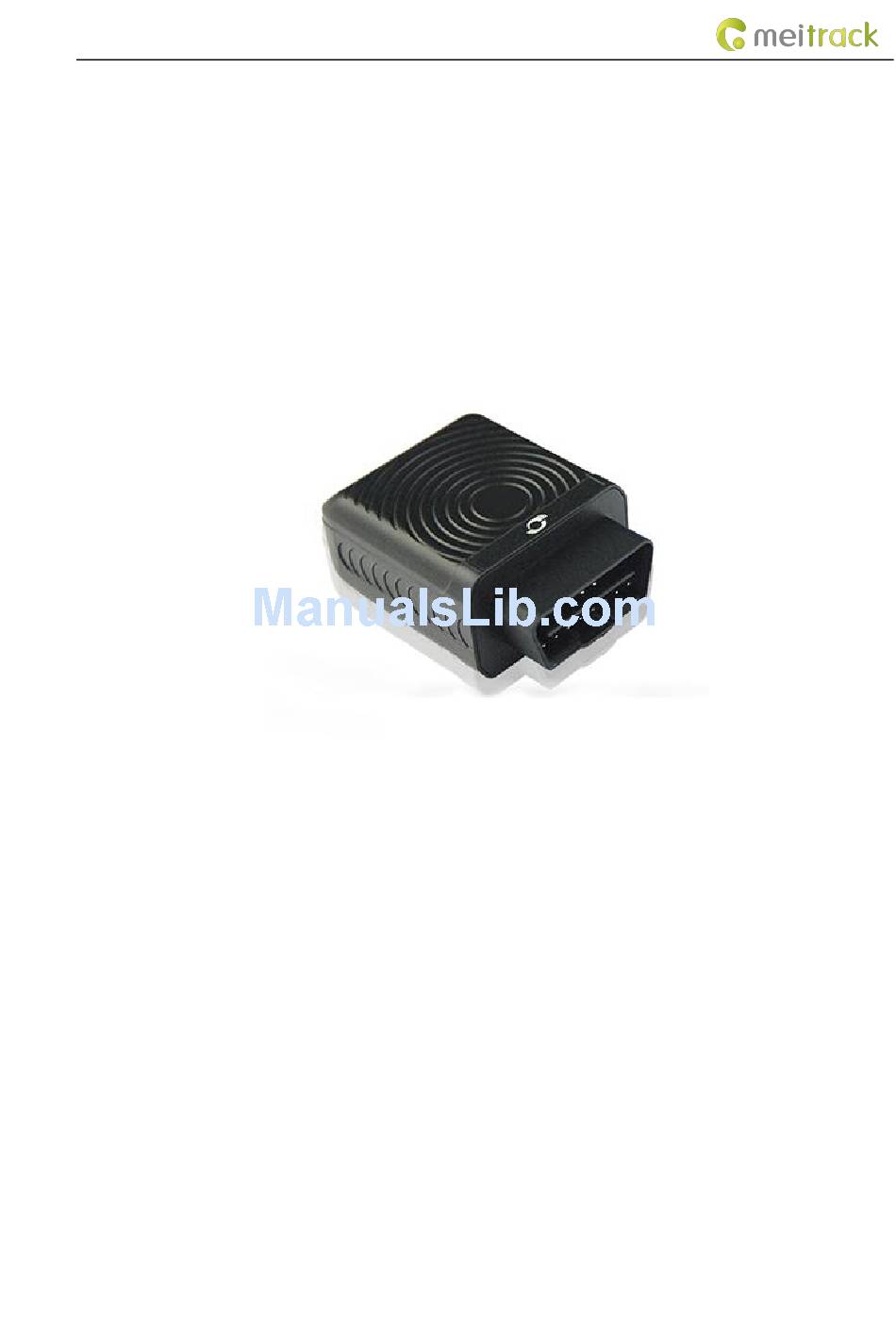

- Page 1 MEITRACK TC68S User Guide Meitrack TC68S User Guide...
-
Page 2: Change History
Change History File Name MEITRACK TC68S User Guide Created By Renny Lee Project TC68S Creation Date 2013-03-15 Update Date 2015-01-19 Subproject User Guide Total Pages Version V1.3 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
5.6 Tracking System ................................- 12 - 6 Installing the Device ..................................- 13 - 6.1 Plugging the Device Into the Vehicle Connector .......................- 13 - 6.2 (Optional) Installed by Extension Cord ..........................- 13 - Copyright © 2015 Meitrack Group All rights reserved. - 3 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: About The Product
3 About the Product 3.1 Product Overview The TC68S is a user-friendly vehicle GPS tracker plugged into a vehicle with an OBD II connector. It supports vehicle positioning, tracking, and anti-theft. With a standard OBD II plug, it can be easily installed. -
Page 6: Alarms
Upgrade device firmware. GPS log When the GPS is valid, the device will record the driving traces at the preset time interval. You can use Meitrack Manager software to read these records (at most 130,000). GPS + GSM dual-module tracking... -
Page 7: Appearance
Press and hold down the button for 2s in the case of emergency. The device will sound "BI" once. The device will also dial three authorized phone numbers in turn. It will stop Copyright © 2015 Meitrack Group All rights reserved. - 7 -... -
Page 8: How To Use
Blink (every 0.1s) The device is being initialized. Blink (0.1s on and 2.9s off) A GSM signal is received. Blink (1s on and 2s off) No GSM signal is received. Copyright © 2015 Meitrack Group All rights reserved. - 8 -... -
Page 9: Location Tracking
5.4 Location Tracking Call the SIM card phone number that is used in the TC68S, and hang up after the dial tone rings 2-3 times. An SMS with a map link is received. Click the link to query the location. -
Page 10: Setting A Combined Function Phone Number - A71
MEITRACK TC68S User Guide More SMS commands You can configure the device on a mobile phone or on a computer by using Meitrack Manager. For details, see section 5.5 "Configured on a Computer." Note: The default password is 0000. You can change the password by using Meitrack Manager and SMS commands. For details, see section 5.5 "Configured on a Computer."... -
Page 11: Setting The Smart Sleep Mode - A73
When SMS minute is a value ranging from -32768 to 32767, set different time zones. Set the China time zone value to 480. Example: 0000,B35,480 Reponding: 353358017784062,B35,OK (set the Beijing time) For details about SMS commands, see the MEITRACK SMS Protocol. Copyright © 2015 Meitrack Group All rights reserved. - 11 -... -
Page 12: Configured On A Computer
Install the USB driver and Meitrack Manager. Connect the TC68S to a PC with a USB cable. Run Meitrack Manager, and start the TC68S. Meitrack Manager will automatically detect the tracker port number and read its parameters. For details about MEITRACK Manager, see the MEITRACK Manager User Guide. -
Page 13: Installing The Device
Password: 0000 (default password; you can change it later) 6 Installing the Device The TC68S is a plug-and-play device without wiring. After the device is plugged into the vehicle OBD II connector, the device will beep once, and all indicators will blink, which indicates that the device is installed successfully. - Page 14 MEITRACK TC68S User Guide If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved. - 14 -...
