Page 1: User Guide

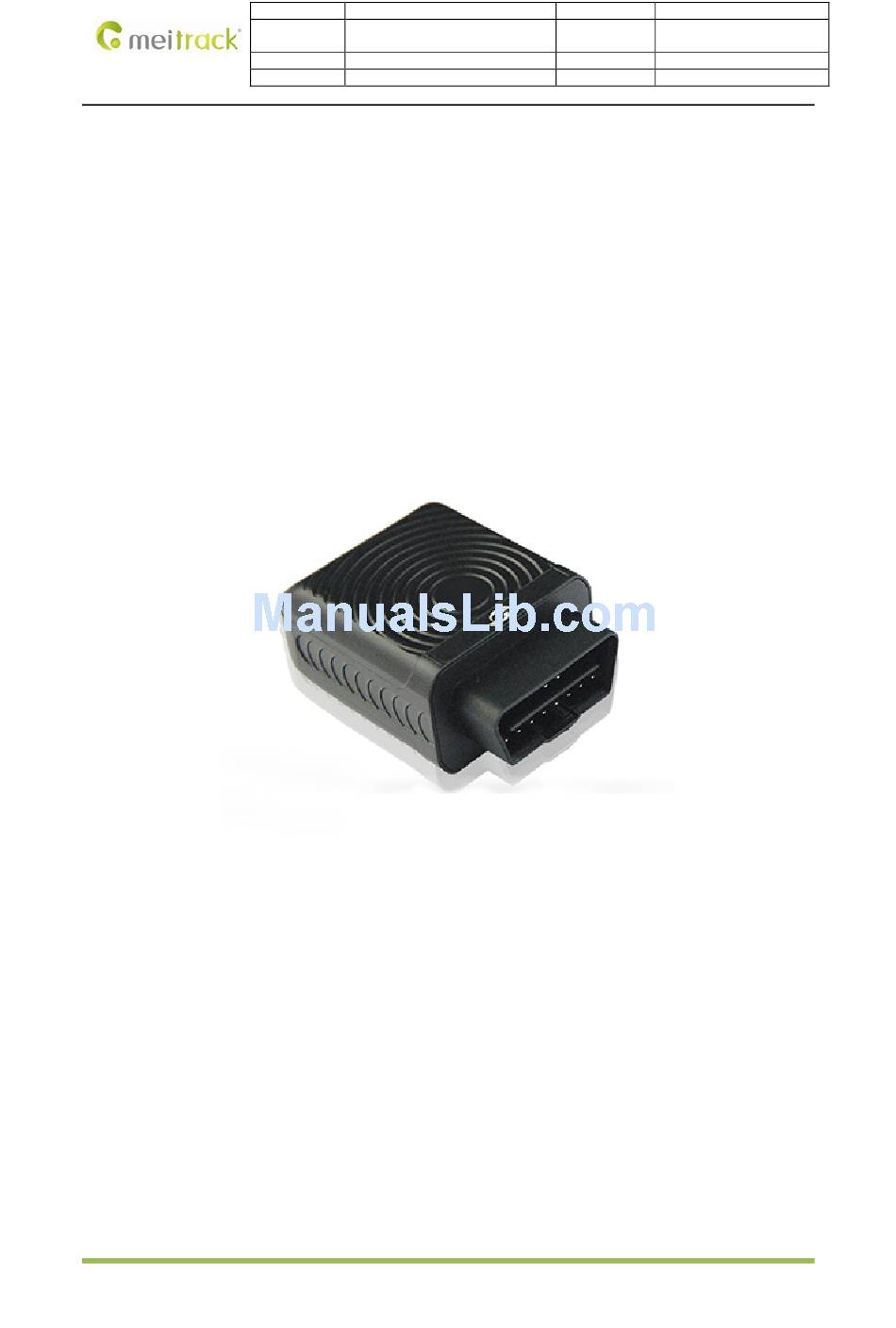

Renny Lee Project TC68S Creation Date 2012-07-13 Update Date 2014-02-26 Sub Project User Guide Page 1 of 16 Revision V1.2 Confidential External Documentation MEITRACK® Plug & Play Vehicle GPS Tracker TC68S User Guide Copyright © 2014 Meitrack Group All rights reserved. -
Page 2: Table Of Contents
4.5.3 Authorized Event Configuration ...................... 14 4.6 Platform Tracking ............................14 TC68S Installation ............................15 5.1 Plug Car Connector Directly ........................15 5.2 Use the OBD Extender to Install (Optional) ....................15 Copyright and Disclaimer ..........................16 Copyright © 2014 Meitrack Group All rights reserved. -
Page 3: Notice
USB Cable 1 pc Velcro 1 pc Quick Start 1 pc Warranty Card 1 pc Certificate of Quality 1 pc CD (Including Use Manuals, 1 pc Software ) Gift Box 1 pc Copyright © 2014 Meitrack Group All rights reserved. -
Page 4: Specifications And Functions

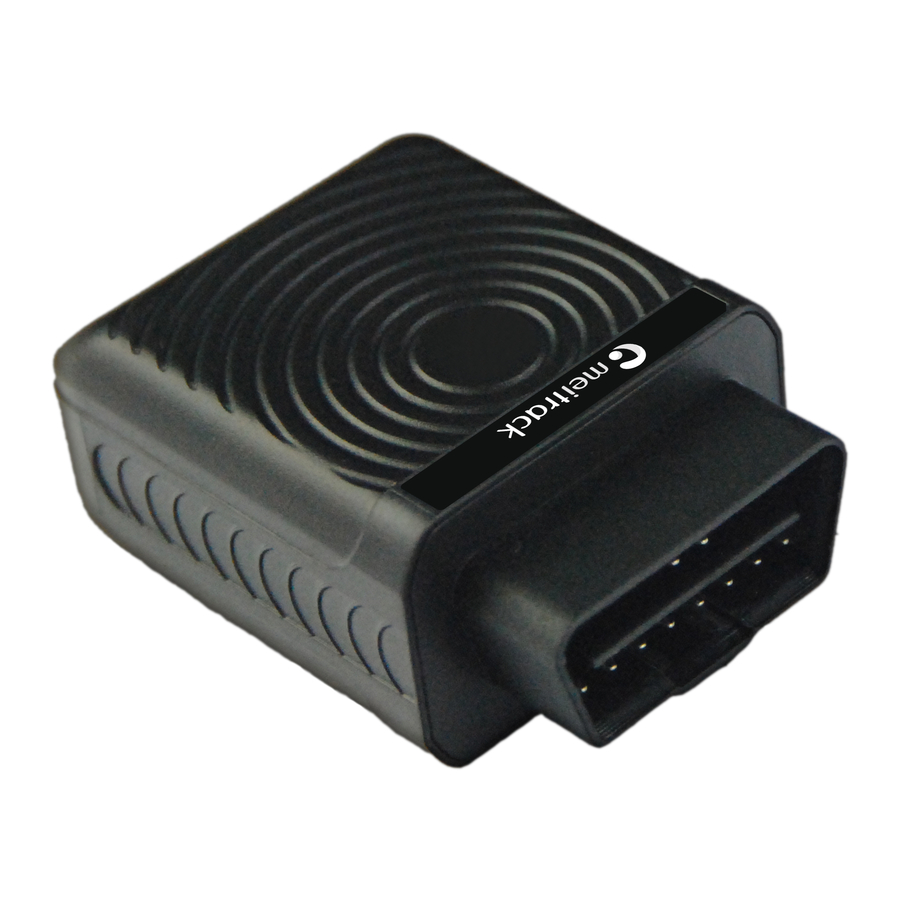

2. Specifications and Functions 2.1 Introduction The TC68S is a user-friendly GPS vehicle tracker plugged into the vehicle’s OBD connector which can provide vehicle positioning, tracking and anti-theft. With standard OBD II plug, the TC68S can be easily and quickly installed. -
Page 5: Alarms
When tracker obtained a valid GPS position, the terminal will record the log into buffer by interval. Tracking log can be read by Meitrack Manager and stored up to 130,000 records. GPS&GSM Wherever GPS position is not available, GSM base station will use signal tower to provide an (LBS)Tracking approximate coordinate to ensure it can be located anytime. -
Page 6: View
GSM LED GSM LED indicates that the device receives GSM signal. Details in”4.3 LED (Green) Indicators” GPS LED GPS LED indicates that the device receives GPS signal. Details in”4.3 LED (Blue) Indicators ” Copyright © 2014 Meitrack Group All rights reserved. -
Page 7: Quick Start
Make sure you have set Caller Identification function if you want so. 4.2 Charge the Battery Please charge TC68S for at least 3 hours by the USB cable while the first using. To shorten the charging time, please turn off TC68S while charging. -
Page 8: Gps Tracking
Notice: GSM and GPS LED indicators off in sleep mode. 4.4 GPS Tracking This location-tracking test will ensure TC68S operates correctly and reports its real time position. Call the SIM card number embedded in TC68S, hang up till the dial sound 2-3 times, as follows: Report description: Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329... -
Page 9: Sos- A71
1. Password is 4 digits only and defaulted to 0000. You can change the password by Parameter Editor and SMS command. 2. The TC68S will only accept commands from a user with the correct password and report SMS report to the user. If function phone number was set, only this phone number can receive SMS reports. 4.4.1 SOS– A71 This command is to set the SOS emergency communications number, call the phone number, inform the location by SMS and other SMS additional features at the same time. -
Page 10: Listen-In (Voice Monitoring) - A72
After that, it will repeat above processes. Note: the TC68S can enter sleep mode under movement, and movement can't wake the TC68S from sleep mode. In any condition, the device will directly quit the sleep mode and return to normal working mode by SMS or GPRS command to turn off the sleep mode. -
Page 11: Time Zone - B35
IMEI,B35,OK Set the time zone successfully. Note: this value is your TC68S’s IMEI number. The device will send this data automatically and these numbers don’t represent anything significant to the functionality of the tracker. Below the same applies. 4.4.5 More Settings TC68S can be configured by SMS commands or by a computer with Meitrack Manager to configure multiple features. -
Page 12: Gprs/Sms Tracking
Creator Renny Lee Project TC68S Creation Date 2012-07-13 Update Date 2014-02-26 Sub Project User Guide Page 12 of 16 Revision V1.2 Confidential External Documentation 4.5.1 GPRS/SMS Tracking Tracking Select Column 2: -12- Copyright © 2014 Meitrack Group All rights reserved. -
Page 13: Geo-Fence Configuration
GPRS time zone minute = 0, GMT 0 (Default) GPRS time zone minute = [-32768,32767], set different time zones. Save Write current GPRS Tracking settings into the tracker. 4.5.2 Geo-fence Configuration Select Column 3: Geo Fence -13- Copyright © 2014 Meitrack Group All rights reserved. -
Page 14: Authorized Event Configuration
Select Column 4: Authorize Set GPRS Event and Buzzer Alarm, and they can be set separately. Please refer to MEITRACK SMS Protocol and MEITRACK GPRS Protocol, if you want to know more GPRS Setting. 4.6 Platform Tracking PC User: Please visit Meitrack Family GPS Tracking System (www.trackingmate.com) and select MS02 , or visit directly by: http://ms02.trackingmate.com. -
Page 15: Tc68S Installation
5. TC68S Installation The TC68S is a plug-and-play (PnP) device, installation requires no wiring. After connected the TC68S into the OBDII connector in the car, it will beep once, and all LEDs will begin to blink, this indicated a successful installation. -
Page 16: Copyright And Disclaimer
Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of assets and property) arising out of the use or inability or illegality to use the product or its documentation.
