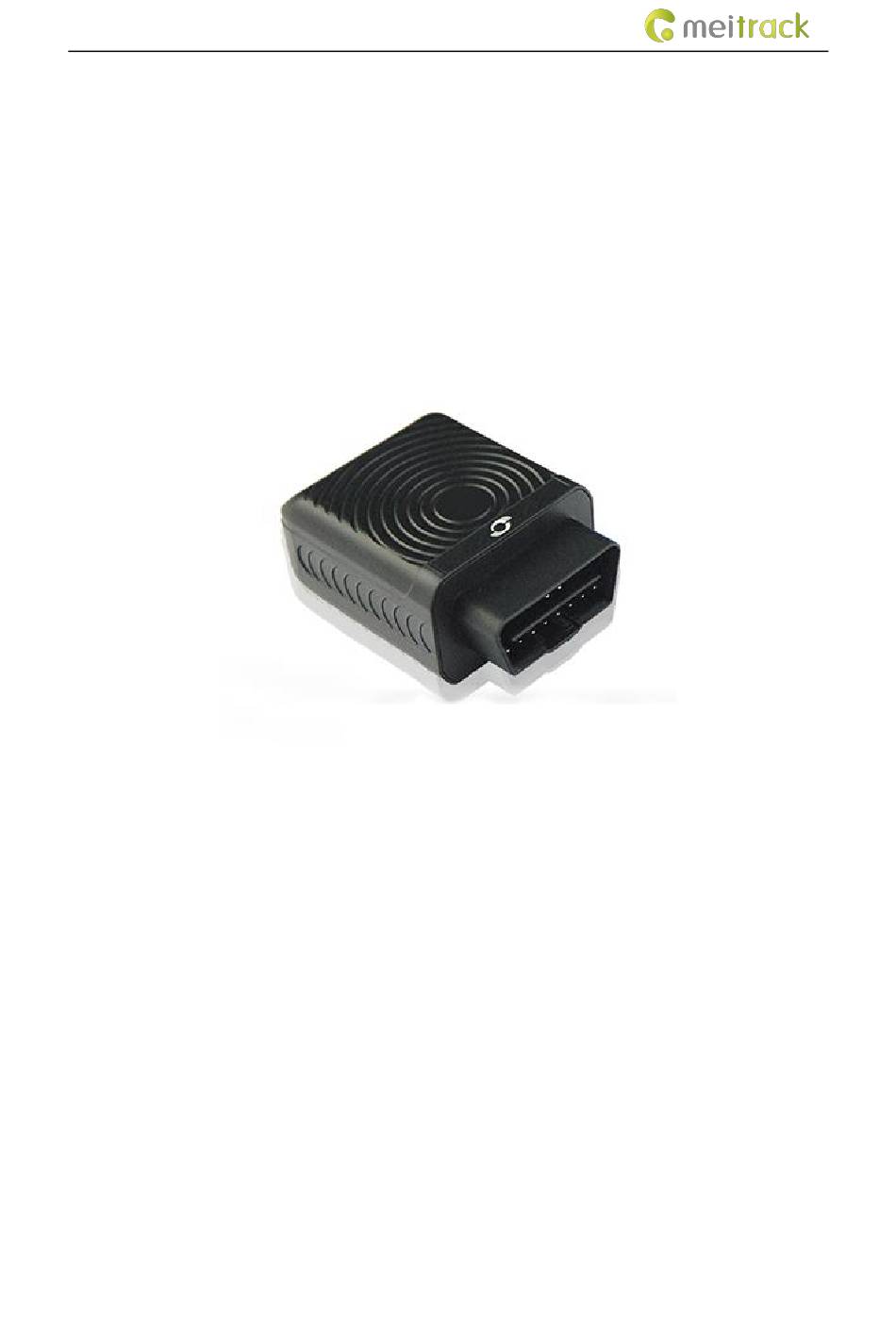

- Page 1 MEITRACK TC68S/TC68SG User Guide MEITRACK TC68S/TC68SG User Guide...
- Page 2 MEITRACK TC68S/TC68SG User Guide Change History File Name MEITRACK TC68S/TC68SG User Guide Project TC68S/TC68SG Creation Date 2013-03-15 Update Date 2019-09-12 Subproject User Guide Total Pages Version V1.6 Confidential External Documentation Copyright © 2019 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
5.3.2 Setting the Smart Sleep Mode – A73 ....................- 11 - 5.3.3 Setting the SMS Time Zone – B35 ....................- 11 - 5.4 Configuring Device Parameters by Meitrack Manager ................- 12 - 5.5 Logging In to MS03 Tracking System ......................- 12 - 6 Installing the Device .............................. -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: About The Product

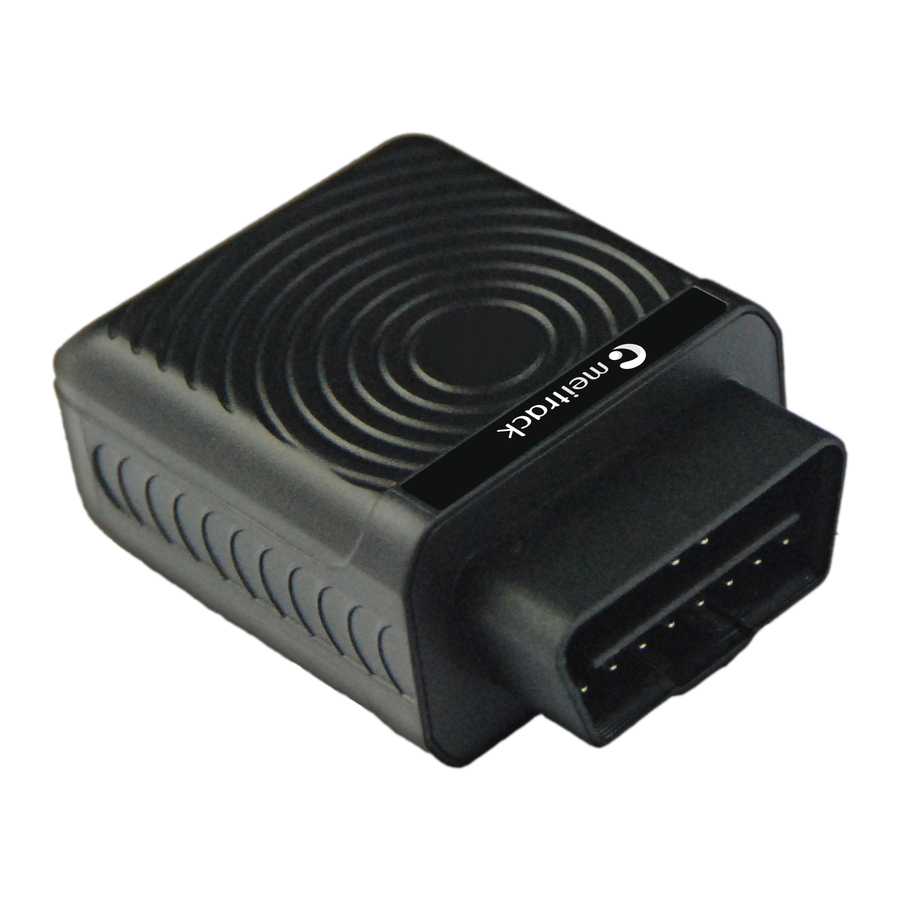

MEITRACK TC68S/TC68SG User Guide 3 About the Product 3.1 Product Introduction The TC68S/TC68SG is a plug-and-play GPS vehicle tracker without wiring. It supports vehicle positioning, tracking, and anti-theft. With a standard OBD II plug, it can be easily installed. When the device is removed, you will receive an alert message. -
Page 6: Alerts
Update device firmware by OTA. GPS log When the GPS is valid, the device will record the driving routes at the preset time interval. You can use Meitrack Manager software to read these records (at most 130,000 records). GPS + LBS positioning When the GPS is invalid, the GSM base station will be used for assisted positioning, ensuring that the vehicle can be located at any time. -
Page 7: Appearance
ACC ON and OFF reports. 4 Appearance SIM card slot USB port Power button GSM indicator GPS indicator SOS button Vehicle's OBD II connector Item Description SIM card slot SIM card slot Copyright © 2019 Meitrack Group All rights reserved. - 7 -... -
Page 8: How To Use
To start the device, press and hold down the power button for 2 seconds. Once the device is plugged into the vehicle's OBD II connector, it will make a sound. GPS Indicator (Blue) Copyright © 2019 Meitrack Group All rights reserved. - 8 -... -
Page 9: Tracking By Mobile Phone
A = Valid V = Invalid Indicates the GSM signal strength. Value: 1–32 The larger the value is, the stronger the signal is. If the value is greater than 12, Copyright © 2019 Meitrack Group All rights reserved. - 9 -... -
Page 10: Setting Authorized Phone Numbers - A71
If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. More SMS commands You can configure the device on a mobile phone or on a computer by using Meitrack Manager. For details, see section 5.4 "Configuring Device Parameters by Meitrack Manager."... -
Page 11: Setting The Smart Sleep Mode - A73
When SMS minute is a value ranging from -32768 to 32767, set time zones. Set the China time zone value to 480. Example: Sending: 0000,B35,480 Reply: 353358017784062,B35,OK (set the Beijing time) For details about SMS commands, see the MEITRACK SMS Protocol. Copyright © 2019 Meitrack Group All rights reserved. - 11 -... -
Page 12: Configuring Device Parameters By Meitrack Manager
Connect the device to a computer with the USB cable. Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. -
Page 13: Installing The Device
MEITRACK TC68S/TC68SG User Guide login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). The MS03 supports the following functions: Track by time interval or distance. - Page 14 MEITRACK TC68S/TC68SG User Guide If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2019 Meitrack Group All rights reserved. - 14 -...
